Chapter 29: Control Surface Reference 237
Chapter 29: Control Surface Reference
This chapter describes the ports and connectors on the D-Show Profile console.
D-Show Profile Console
Top Panel USB Port
A USB 1.1 port is provided on the top panel, in the upper left
corner of the console. Use this USB port for iLok Smart Keys or
any other USB device such as a key disks.
Front USB Ports
Two USB 1.1 ports are provided on the front of console. Use
these ports to connect a USB keyboard and a Trackball (or
mouse). These ports also support iLoks and USB key disks.
Headphone Connector
The headphone connector on the front of the console is a
standard 1/4-inch stereo (TRS) headphone jack. The connec-
tor is fed by the Monitor bus.

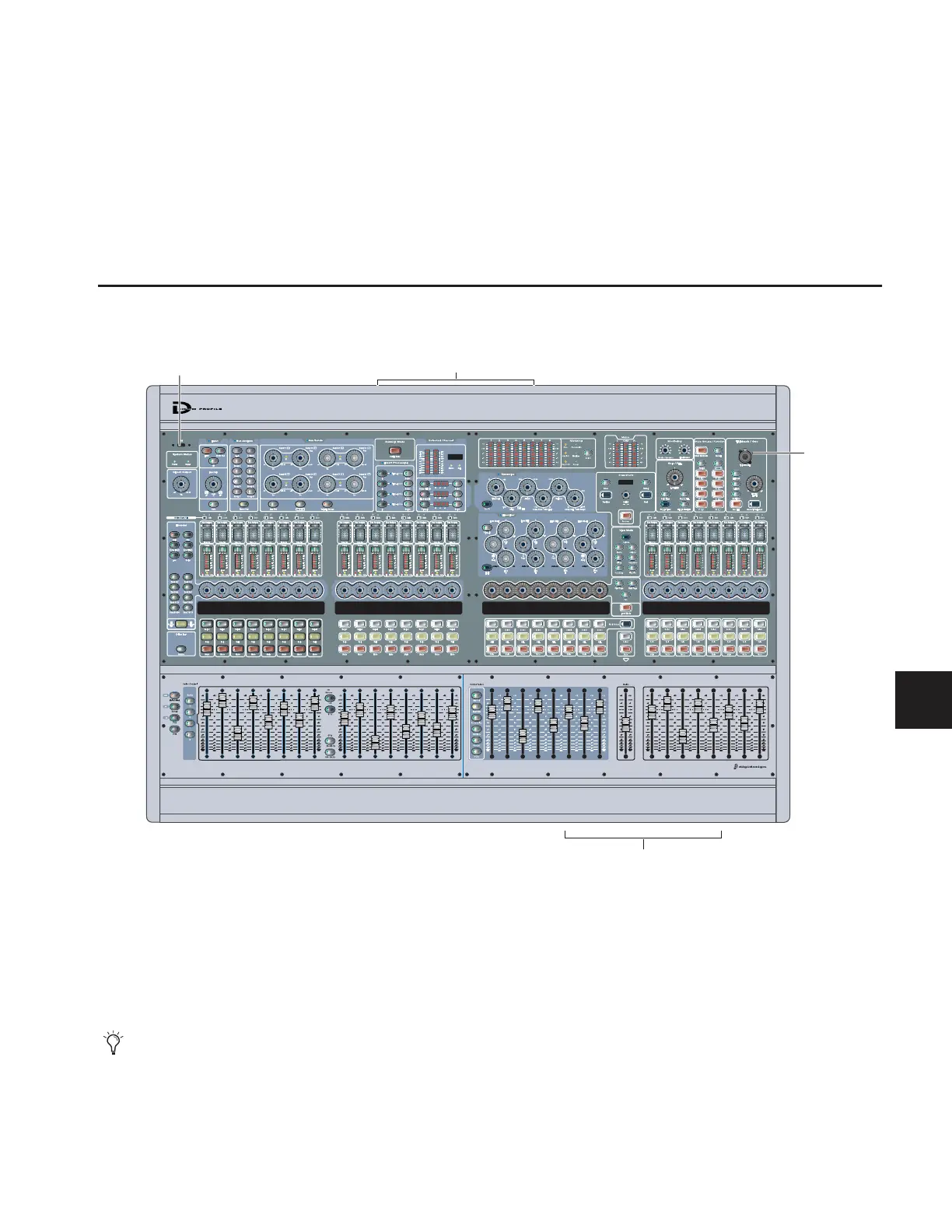

Figure 16. D-Show Profile connectors
USB (2) and Headphones
Talkback
USB port
Back Panel Connectors
For faster data transfer to and from USB storage devices,
use the USB 2.0 ports on the front and back of the FOH
Rack.The FOH Rack actually provides three USB 2.0 ports
(two on the outside, and a secure port inside the rack). For
more information, see Chapter 30, “FOH Rack Reference.”
