D-Show Profile Guide80
3 In the ACS Bus Assigns section, press the L–R (left and right)
or C/Mono (center/mono) switch so that it is lit.
4 Move the channel’s fader to set the Group output level.
Group Routing Indication on Output Encoders
When Groups are assigned to the Output encoders, the en-
coder indicator LEDs indicate Main bus assignments as fol-
lows:
Off Group routing to Mains is turned off.
Yellow Group output is routed to the Mains L–R bus.
Green Group output is routed to the Mains C/M bus.
Red Group output is routed to both the Mains L–R bus and the
Mains C/M bus.
Routing Group Busses
Group busses can be routed to hardware outputs, and to avail-
able bus-fed plug-ins. Group busses also provide Direct Outs,
inserts and built-in Graphic EQ capabilities.
Using Direct Outputs on Group Busses See “Direct Outputs” on
page 76.
Using Inserts on Group Busses You can insert D-Show soft-
ware plug-ins or hardware inserts on Group bus outputs. For
more information, see “Using Inserts on Output Busses” on
page 72.
Inserting the Built-In Graphic EQ on Group Bus Outputs A
built-in 31-band Graphic EQ can be inserted on Group bus
outputs. For more information, see “Inserting the Built-In
Graphic EQ on Output Busses” on page 73.
Managing Group Bus Assignments
Viewing Group Bus Assignments
You can view Group bus assignments from the Input section
of the control surface or from an on-screen list of Group mem-
bers.
Viewing Group Bus Assignments from the Input
Section
The Bus Assign LEDs 1–8 on Input Channels and FX Return
channel strips light to indicate that a channel is routed to the
corresponding Group busses. The Stereo Pan LED lights when
at least one bus is being fed as a stereo-linked pair or in true
stereo.
Viewing Group Bus Assignments On-Screen
When a Group bus channel is targeted on-screen, its members
are shown in a list on the right side of the Outputs page.

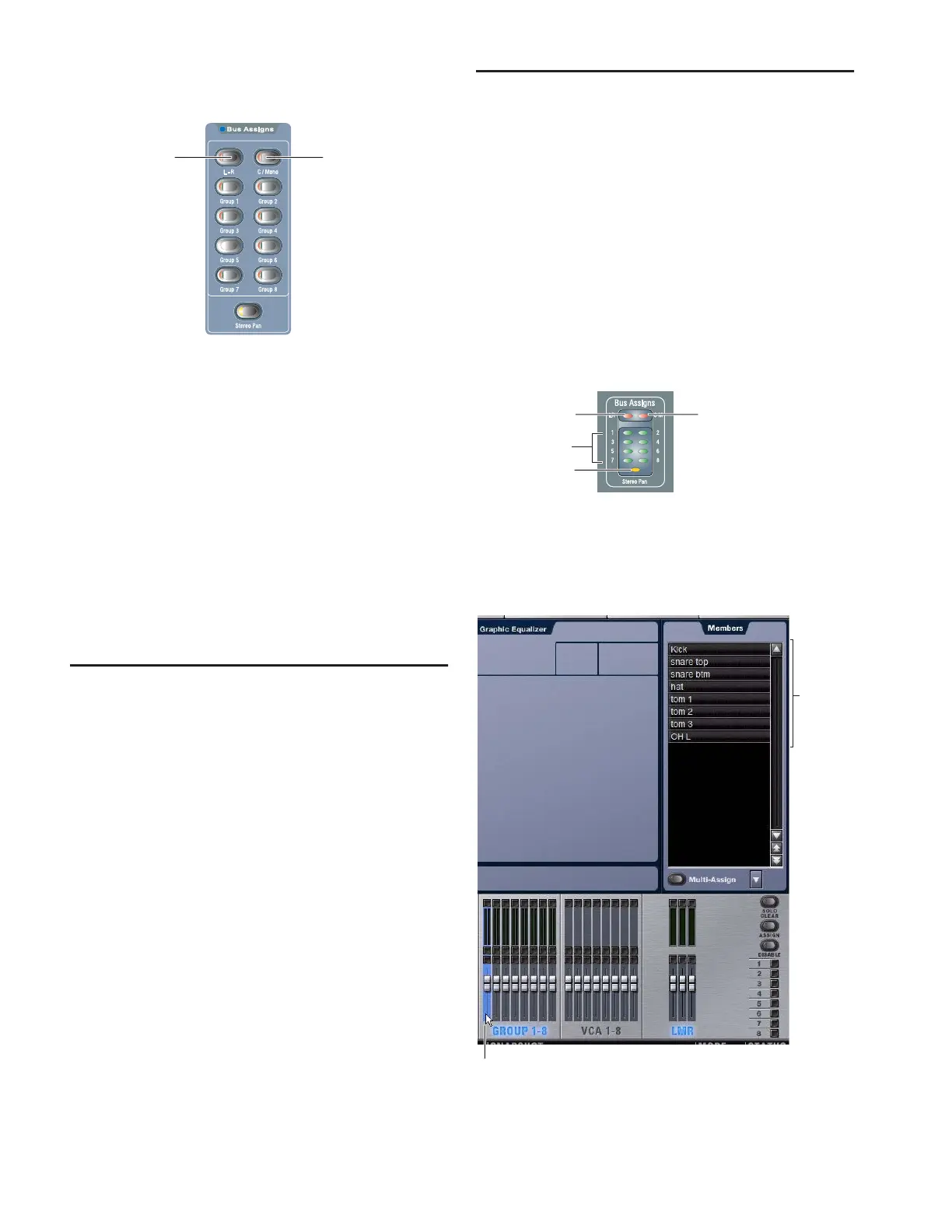

Assigning a Group output to the Main busses from the ACS
Left–Right Center/Mono
Main bus
Assign switch
Main bus
Assign switch
Bus Assign indicator LEDs on an Input Channel
Group members shown in the Outputs page
LR
C/M
1–8
Stereo Pan
Currently selected output (Group)
Members
To Next Page
