Personal Q Mixers
Each of the 8 available Personal Q (“PQ”) mixers can receive up to 12 channels of input. Input sources can be any combination
of Auxes, Groups or Mains busses, or any of the eight available PQ User Sends. Each Personal Q mixer has a stereo output.
Personal Q Controller System
With the optional Personal Q Controller system, performers
can adjust the controls in the Personal Q mixer from a remote
location. See the Personal Q Guide for details.
Configuring Matrix and PQ Mixers
The 12 Inputs for each Matrix and PQ mixer can be any com-
bination of the 35 potential sources:
• 24 shared Aux and Group sources
• 3 Mains sources (LCR or LR+M)
• 8 User Input sources
User Inputs can be input channels, FX Returns, physical Stage
Rack inputs, physical FOH Rack inputs, or inputs from a
Pro Tools Recording/Playback option (HDx or FWx)
• One or more of the 8 available user inputs can be sent to
one or more Matrix or PQ mixers.
• Input source assignment and user input assignment can
be stored on a per-snapshot basis.
• The input sources for Matrix mixers and PQ mixers are
configured as Pre- or Post-Fader in the Pickoffs tab of the
Options page.
• Input labels (1–8, Left, Right, C/Mono and User) are only
intended as a guide, to help you navigate the controls on
D-Show. In use, any input source can be assigned to any
mixer input (for example, Left doesn't always have to be
assigned to the Left input of a PQ mixer).
Configuring Aux, Group and Mains Pickoffs
To configure Groups, Auxes, and Mains pickoffs for the Matrix
and PQ mixers:
1 Enable Config mode.
2 Go to the Options page and click the Pickoffs tab.
3 Under Matrix and PQ Sources, configure Aux, Groups and
Mains (LCR or LR+M) as pre- or post-fader.

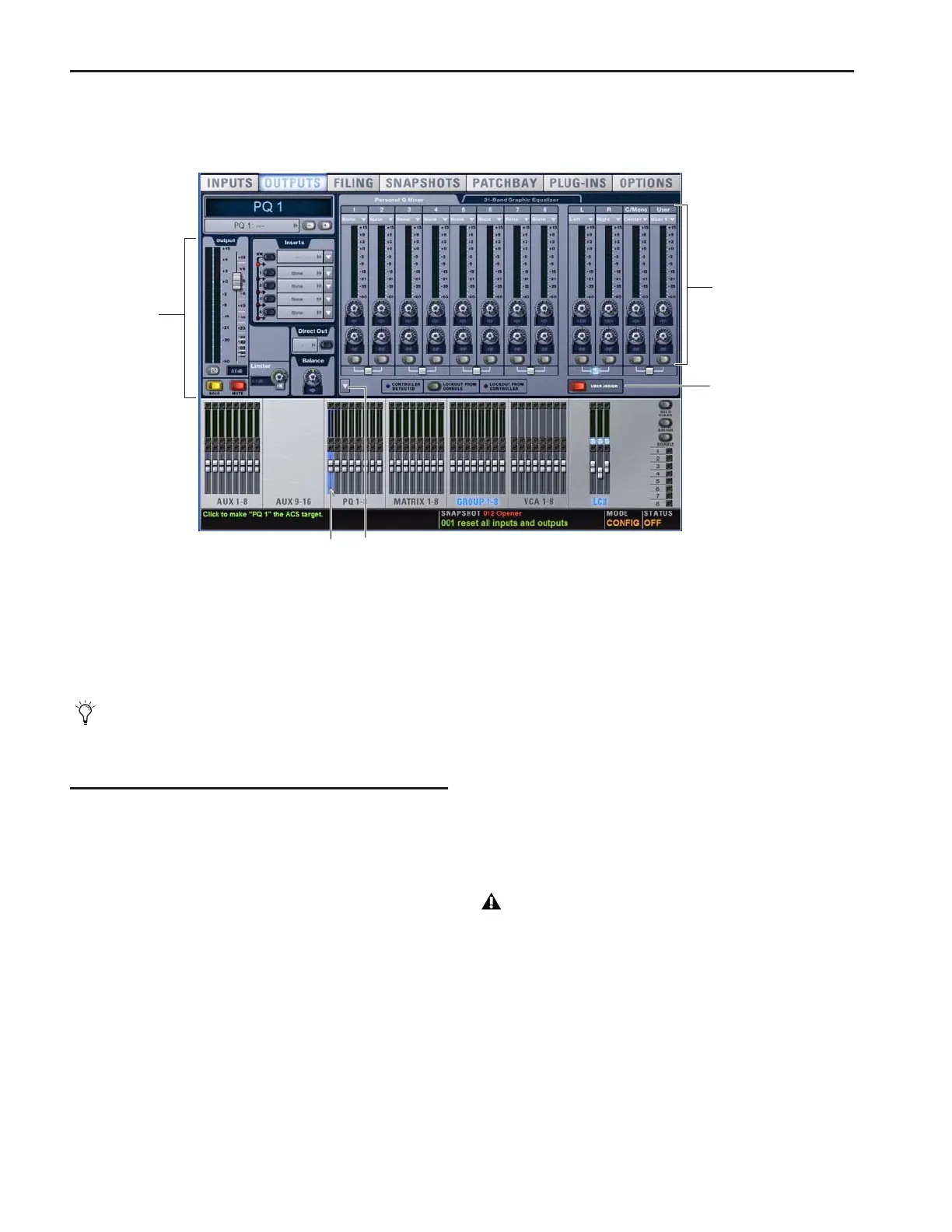

Personal Q Mixer in Outputs page
Currently selected PQ mixer
PQ output
PQ Source controls
level and
controls
Reset and Replace selector
User Assign
If no PQ Controllers are used, the PQ mixers are still avail-
able for use as stereo Matrix mixers controllable from the
console.
Configuring pickoff points may cause a momentary loss of
audio, and therefore cannot be changed in Show mode.
