D-Show Profile Guide246
Power Supply
An optional redundant power supply may be added to the
FOH Rack.
AC Power Connector
The AC Power connector accepts a standard AC power cable.
FOH Rack power supplies are auto-power selecting (100V to
240V) and automatically work with a standard modular power
cord when connected to an AC receptacle in any country.
FOH Link Cable
Connector Specifications
P1: KPT 60 ZIFF connector w/ metal backshell
• Cannon P/N: KPSE06E22-55PF42F0 (housing)
• Cannon P/N: 030-9036-000 (contacts)
P2: KPT 55 Position w/ cable clamp, solder cup
• Cannon P/N: KPSE06E22-55PF42F0 (housing)
• Cannon P/N: 030-9036-000 (contacts)
Cable Specifications
VGA Bundle:
3 x 75 Ohm Coax, 2 x 24 awg Pair, 3 x 28awg
+ Foil and Braid shield
USB Bundle:
1 x 28 awg Pair, 4 x 24awg + Drain
+ Foil and Braid shield
Rack Bundle:
5 x 28 awg, Foil shield
Talkback (TB) Bundle:
4 x 28 awg, Foil shield
Headphone (HP) Bundle:
4 x 28 awg, Foil shield
CAN Bundle:
9 x 28 awg, Foil shield
Overall Shield: 360 degree Foil and 65% Braid + Drain
Overall Jacket: PVC, Black, UL
Connect all shields to the connector shell and to position EE on each
connector.

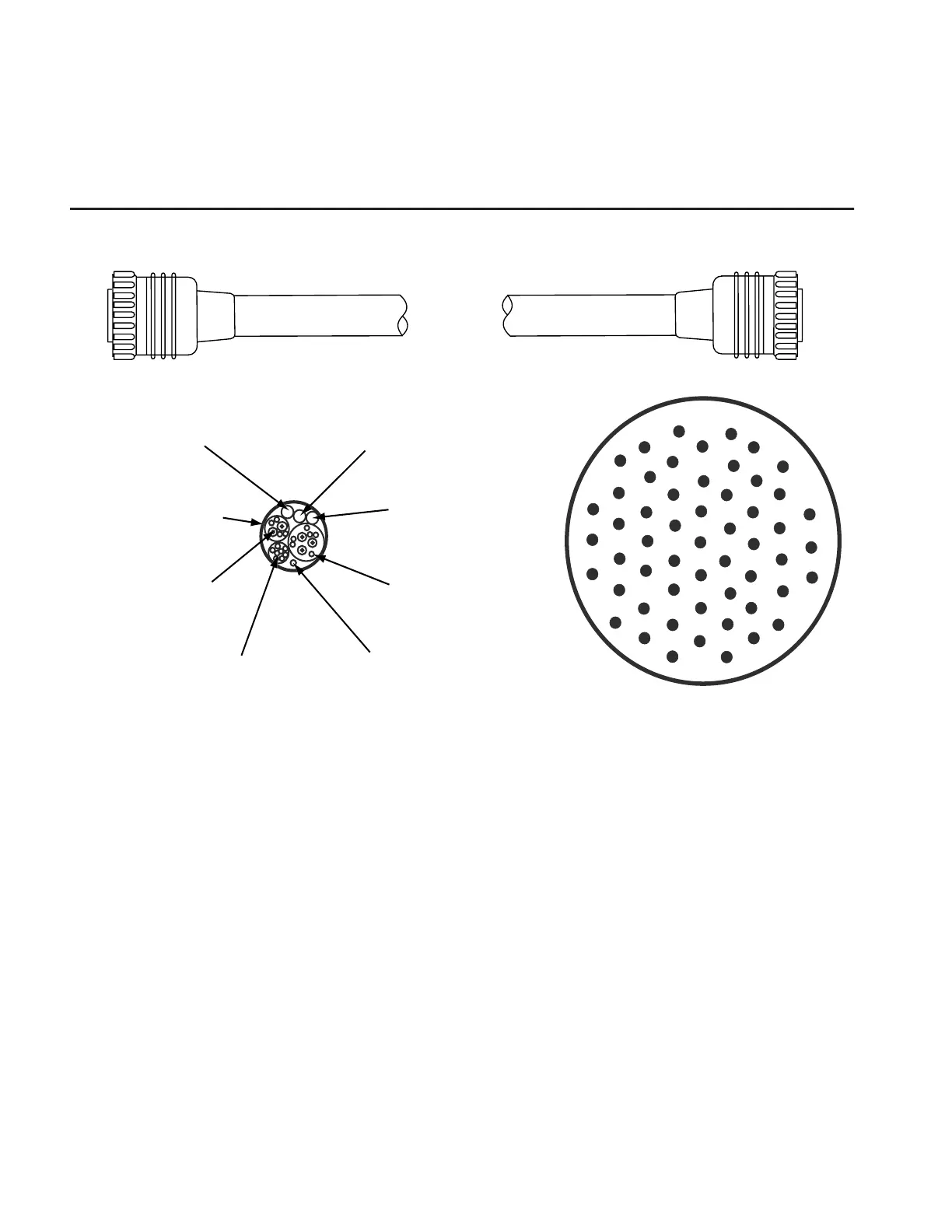

Figure 21. FOH Link cable specifications and connector pinout diagram
P
1 P2
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
W
X
Y
Z
a
b
c
d
e
f
g
h
i
j
k
m
n
p
q
r
s
t
u
v
w
x
y
z
AA
BB
CC
DD
EE
FF
GG
HH
TB Bundle
+ Foil Shield
Overall Shield
+Foil/Braid Shield
HP Bundle
+ Foil Shield
Rack Bundle
+ Foil Shield
VGA Bundle
+ Foil Shield
Drain Wire
CAN Bundle
+ Foil Shield
USB Bundle
+Foil Shield
