Chapter 2: Configuring and Connecting D-Show 11
Connecting D-Show Profile to the FOH Rack
The D-Show Profile control surface is connected to the FOH Rack with the provided FOH Link cable.
To connect the control surface and the FOH Rack:
■ Connect one end of the FOH Link cable to the FOH Link port on the back panel of the D-Show Profile control surface. Connect
the other end of the FOH Link cable to the FOH Link port on the front panel FOH Rack. On each end, be sure to align the notch
in the connector housing with the slot in the plug, and to rotate the collar until the connector is fully latched.

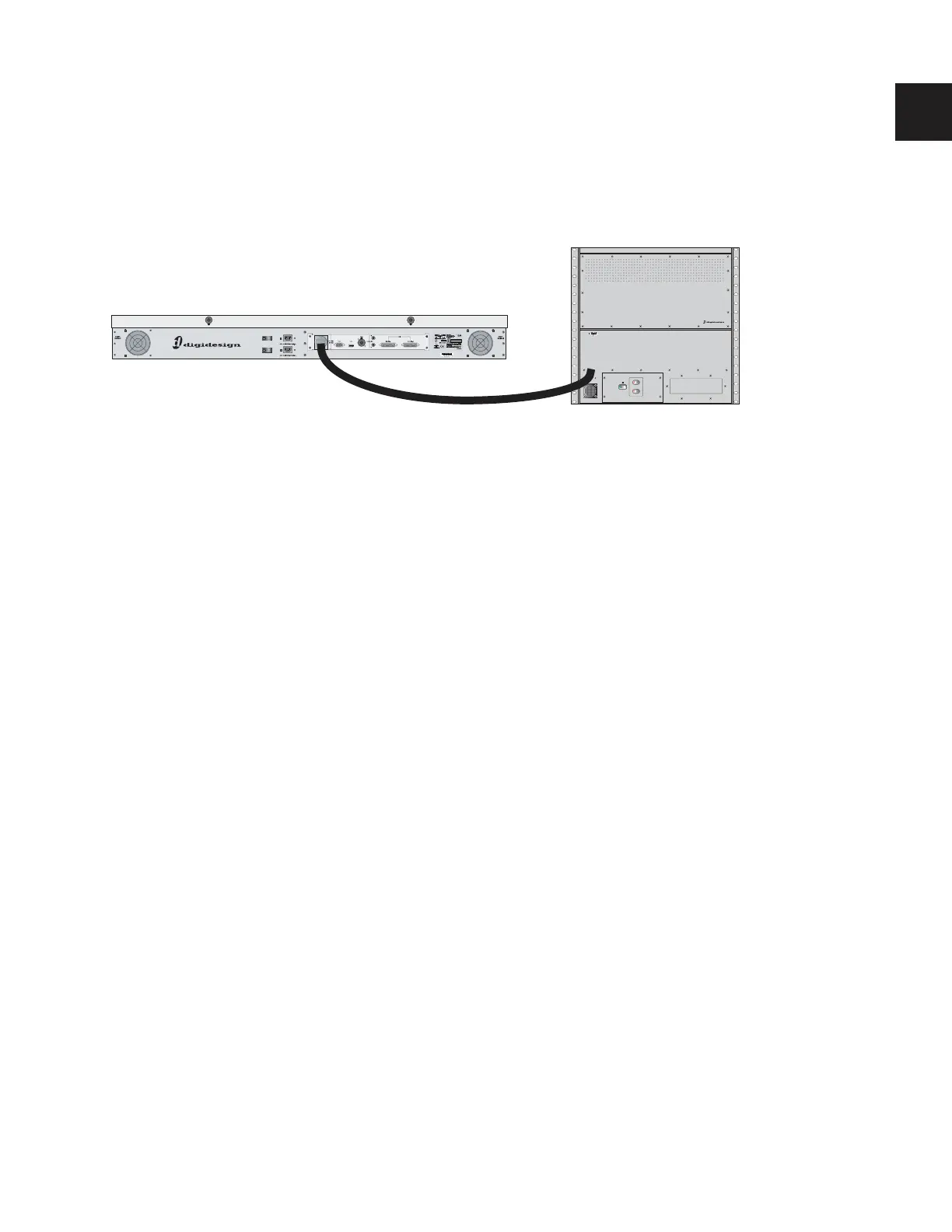

Figure 2. FOH Link connection between D-Show Profile (left) and FOH Rack (right)
