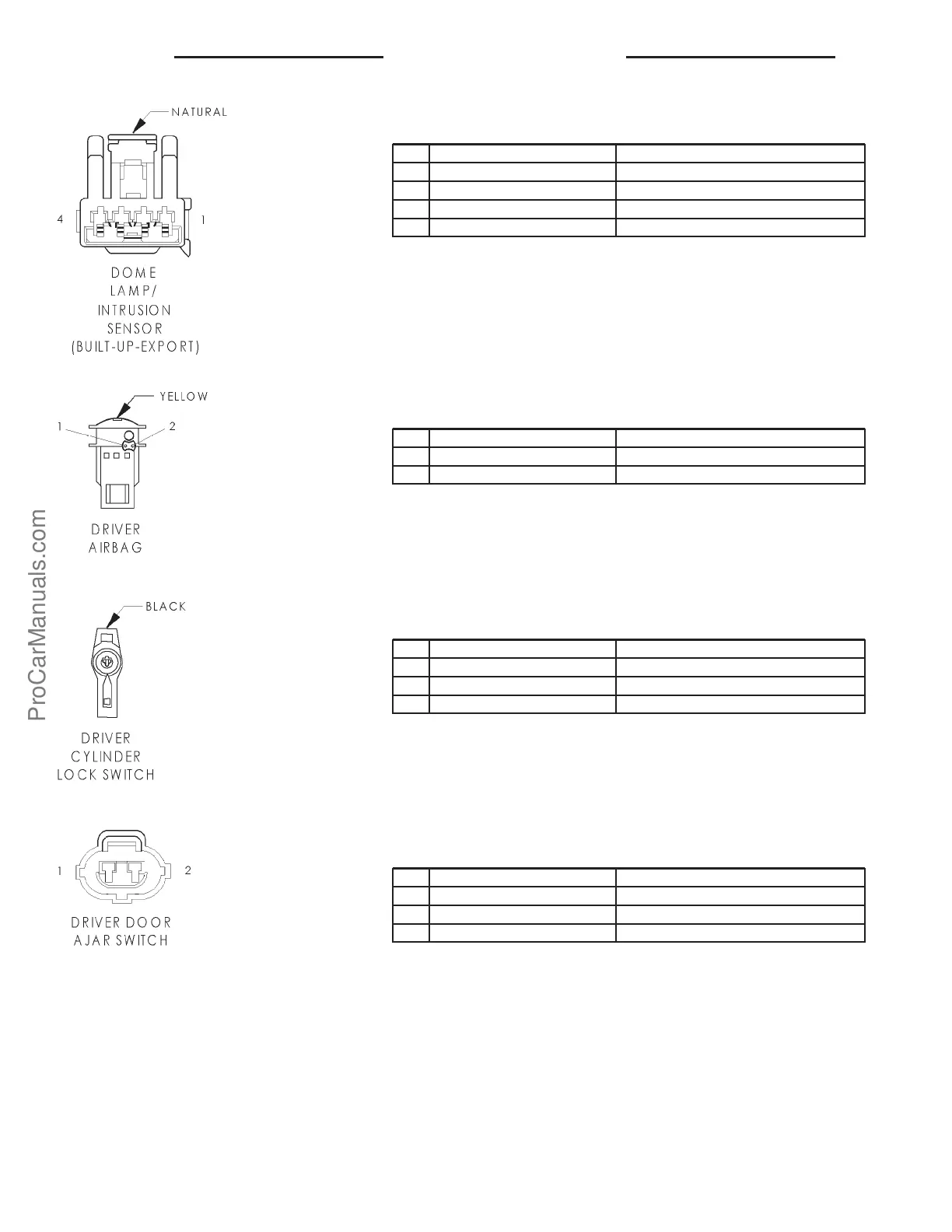

DOME LAMP/INTRUSION SENSOR (BUILT-UP-EXPORT) - NATURAL 4 WAY
CAV CIRCUIT FUNCTION
1 M2 18YL COURTESY LAMP CONTROL
2 M1 20PK FUSED B(+)
3 Z1 18BK GROUND
4 G120 18WT/DB INTRUSION SENSOR SIGNAL
DRIVER AIRBAG - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R43 18BK/LB DRIVER AIRBAG LINE 1
2 R45 18DG/LB DRIVER AIRBAG LINE 2
DRIVER CYLINDER LOCK SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P96 18LG (RHD) RIGHT DOOR LOCK SWITCH MUX
1 P97 18LG (LHD) LEFT DOOR LOCK SWITCH MUX
2 Z14 18BK GROUND
DRIVER DOOR AJAR SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 G75 18TN/BK (LHD) LEFT FRONT DOOR AJAR SWITCH SENSE
1 G74 18TN/BK (RHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
2 Z14 18BK/YL GROUND
8Wa - 80 - 28 8W-80 CONNECTOR PINOUTS PL
