Dodge Neon 2001 - Page 394

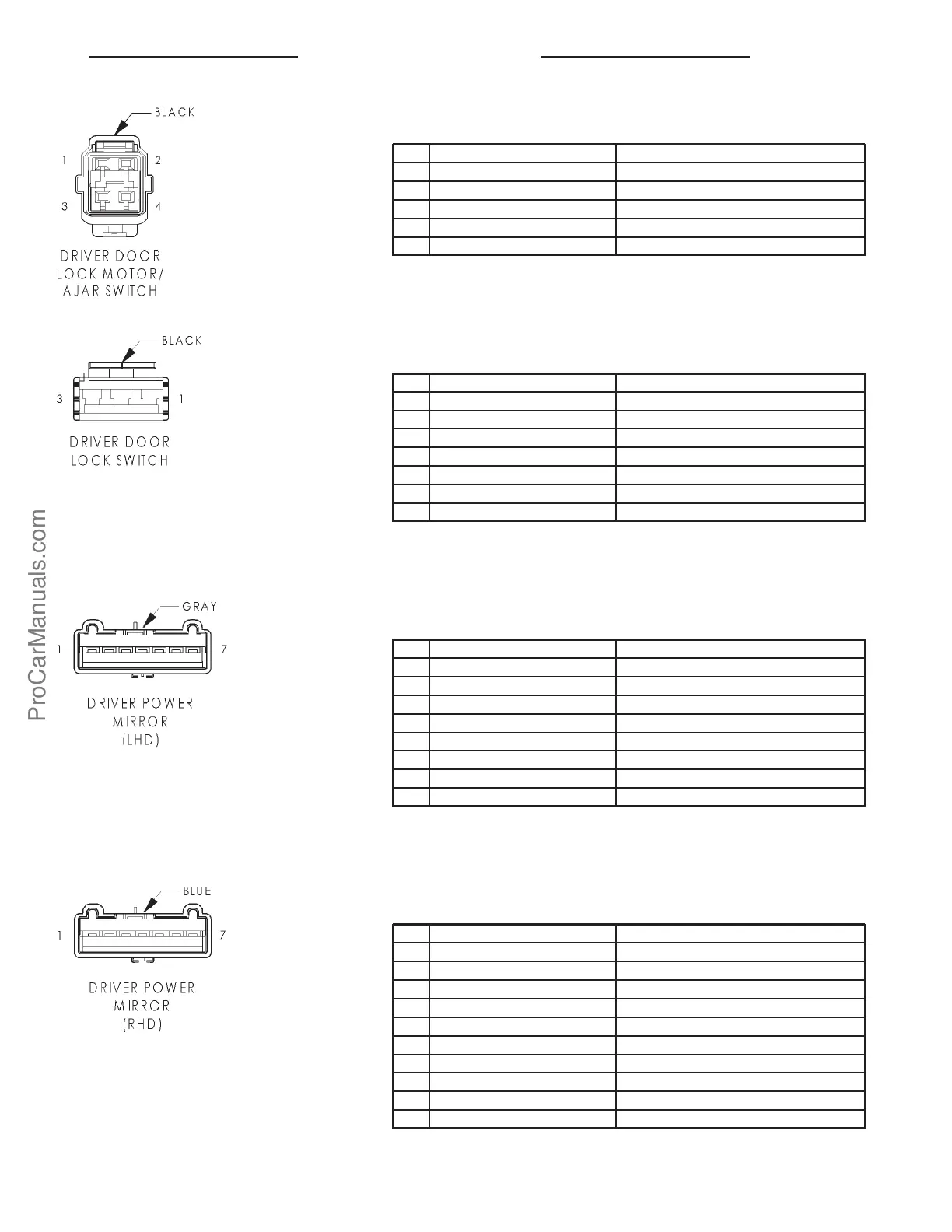

DRIVER DOOR LOCK MOTOR/AJAR SWITCH - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 G74 18TN/BK (RHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
1 G75 18TN/BK (LHD) LEFT FRONT DOOR AJAR SWITCH SENSE
2 Z14 18BK/YL GROUND
3 P34 18PK/BK DRIVER DOOR UNLOCK UNLOCK RELAY OUTPUT
4 P33 18OR/BK DOOR LOCK RELAY OUTPUT
DRIVER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F20 20WT FUSED IGNITION SWITCH OUTPUT (RUN)
2 P96 18LG (RHD) RIGHT DOOR LOCK SWITCH MUX
2 P96 18LG (RHD) RIGHT DOOR LOCK SWITCH MUX
2 P97 18LG (LHD) LEFT DOOR SWITCH MUX
2 P97 18LG (LHD) LEFT DOOR SWITCH MUX
3 Z14 18BK GROUND
3 Z14 18BK/YL GROUND
DRIVER POWER MIRROR (LHD) - GRAY 7 WAY
CAV CIRCUIT FUNCTION
1 C16 20LB/YL FUSED REAR WINDOW DEFOGGER SWITCH OUTPUT
2 P94 20WT/YL MIRROR HORIZONTAL
3 Z8 20BK/VT GROUND
4- -
5 P91 20WT/BK MIRROR VERTICAL
6 P92 20YL MIRROR COMMON
6 P92 20YL MIRROR COMMON
7- -
DRIVER POWER MIRROR (RHD) - BLUE 7 WAY
CAV CIRCUIT FUNCTION
1 C16 20LB/YL FUSED REAR WINDOW DEFOGGER SWITCH OUTPUT
2 P93 20YL/WT MIRROR HORIZONTAL
3 Z8 20BK/VT GROUND
4 P159 18DG MIRROR UNFOLD
4 P159 18DG MIRROR UNFOLD
5 P95 20DB/WT MIRROR VERTICAL
6 P92 20YL MIRROR COMMON
6 P92 20YL MIRROR COMMON
7 P160 18LB MIRROR FOLD
7 P160 18LB MIRROR FOLD
PL 8W-80 CONNECTOR PINOUTS 8Wa - 80 - 29
ProCarManuals.com
2001 NEON
