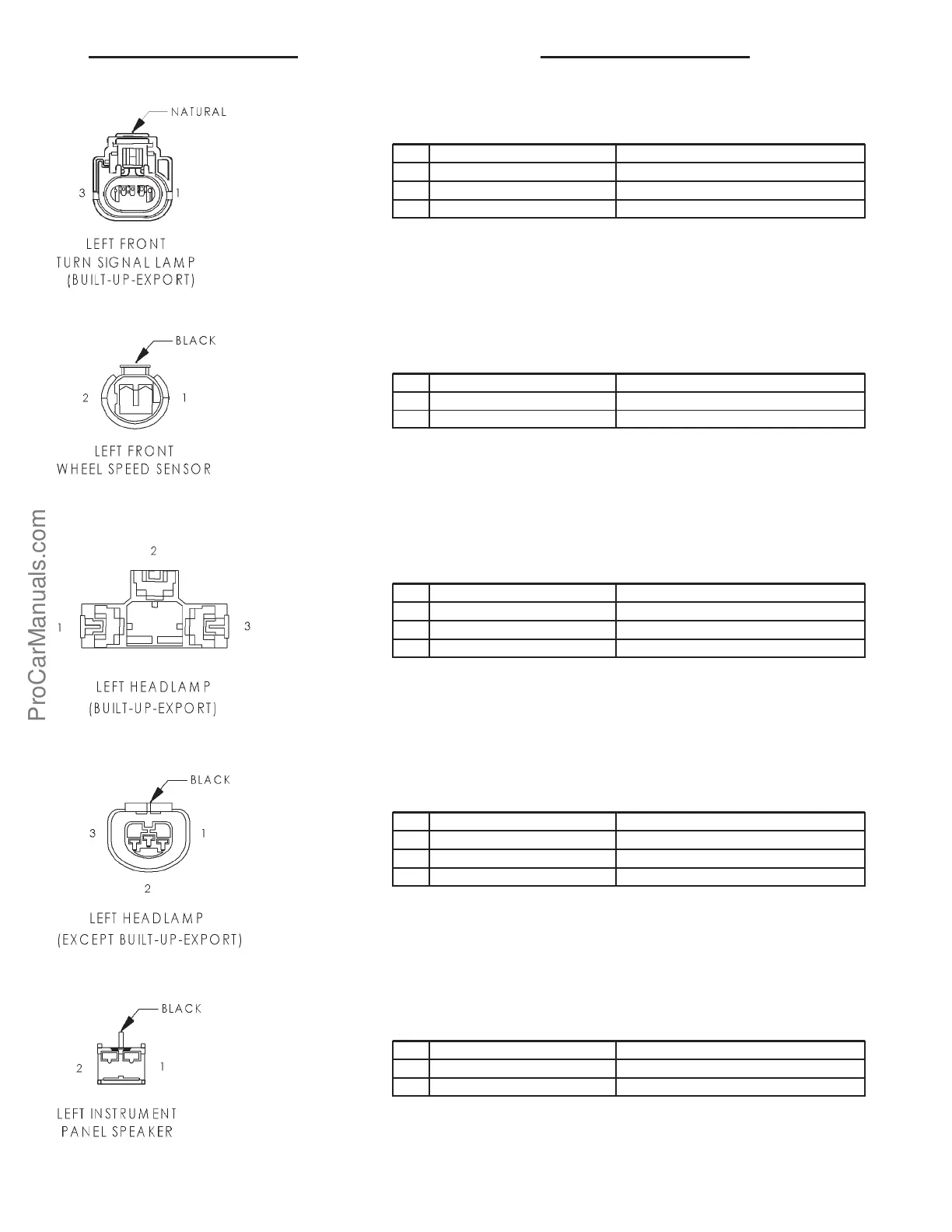

LEFT FRONT TURN SIGNAL LAMP (BUILT-UP-EXPORT) - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 L161 18LG/OR LEFT TURN SIGNAL
2 L250 18WT (EATX) DUMMY CIRCUIT PLUG
3 Z1 18BK GROUND
LEFT FRONT WHEEL SPEED SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B9 18RD 12-VOLT SUPPLY
2 B8 18RD/DB LEFT FRONT WHEEL SPEED SENSOR SIGNAL
LEFT HEADLAMP (BUILT-UP-EXPORT)-3WAY
CAV CIRCUIT FUNCTION
1 L3 16RD/OR DIMMER SWITCH HIGH BEAM OUTPUT
2 L43 14VT FUSED LEFT LOW BEAM OUTPUT
3 Z1 14BK GROUND
LEFT HEADLAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L43 12VT FUSED LEFT LOW BEAM OUTPUT
2 Z1 14BK GROUND
3 L3 16RD/OR DIMMER SWITCH HIGH BEAM OUTPUT
LEFT INSTRUMENT PANEL SPEAKER - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X53 20DG LEFT FRONT SPEAKER (+)
2 X55 20BR/RD LEFT FRONT SPEAKER (-)
PL 8W-80 CONNECTOR PINOUTS 8Wa - 80 - 37
