Dodge Neon 2001 - Page 403

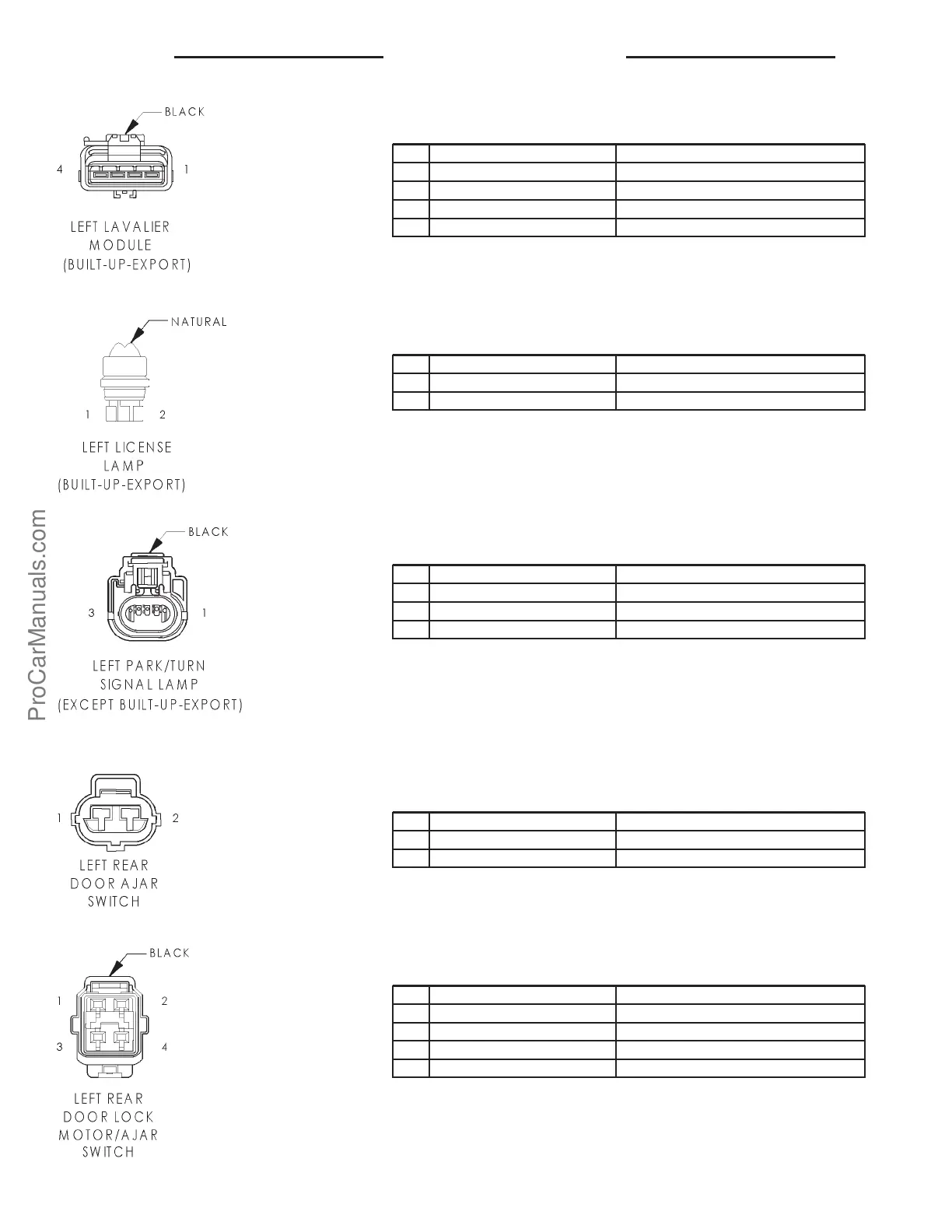

LEFT LAVALIER MODULE (BUILT-UP-EXPORT) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 L7 18BK/YL HEADLAMP SWITCH OUTPUT
2 Z1 18BK GROUND
3 L13 20BR/YL HEADLAMP ADJUST SIGNAL
4 L44 18VT/RD FUSED RIGHT LOW BEAM OUTPUT
LEFT LICENSE LAMP (BUILT-UP-EXPORT) - NATURAL 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 L7 18BK/YL HEADLAMP SWITCH OUTPUT
LEFT PARK/TURN SIGNAL LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 L7 18BK/YL HEADLAMP SWITCH OUTPUT
3 L161 18LG/OR LEFT TURN SIGNAL
LEFT REAR DOOR AJAR SWITCH- 2 WAY
CAV CIRCUIT FUNCTION
1 M9 18LB/OR PASSENGER DOOR AJAR/RKE SENSE
2 Z1 20BK GROUND
LEFT REAR DOOR LOCK MOTOR/AJAR SWITCH - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 M9 18LB/OR PASSENGER DOOR AJAR/RKE SENSE
2 Z1 20BK GROUND
3 P36 18PK/VT DOOR UNLOCK RELAY OUTPUT
4 P33 18OR/BK DOOR LOCK RELAY OUTPUT
8Wa - 80 - 38 8W-80 CONNECTOR PINOUTS PL
ProCarManuals.com
2001 NEON
