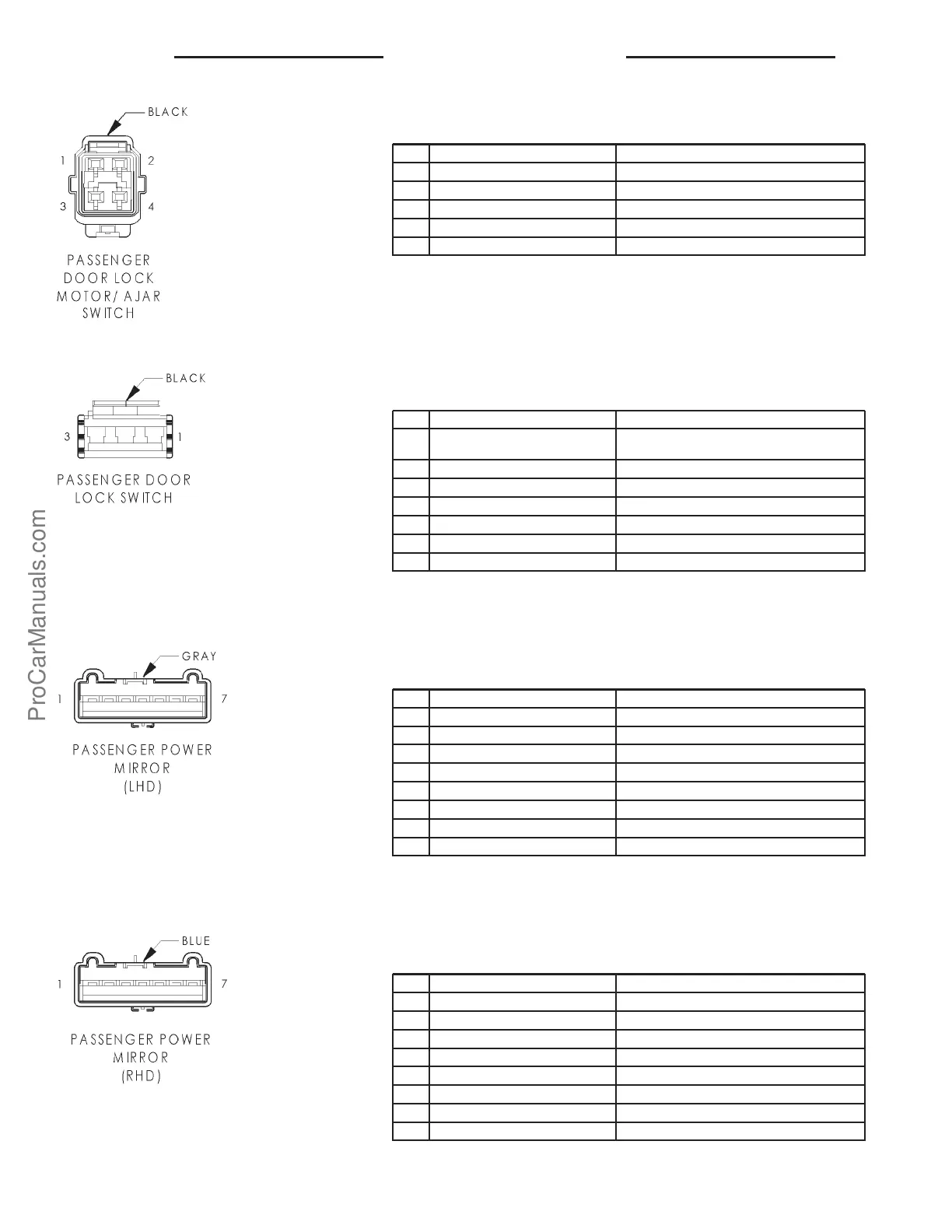

PASSENGER DOOR LOCK MOTOR/AJAR SWITCH - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 M9 18TN/BK (LHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
1 M9 18TN/BK (RHD) LEFT FRONT DOOR AJAR SWITCH SENSE
2 Z14 18BK/YL GROUND
3 P36 18PK/BK DOOR UNLOCK RELAY OUTPUT
4 P33 18OR/BK DOOR LOCK RELAY OUTPUT
PASSENGER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F20 20WT FUSED REAR WINDOW DEFOGGER SWITCH OUTPUT
(RUN)
2 P97 18LG (RHD) LEFT DOOR LOCK SWITCH MUX
2 P97 18LG (RHD) LEFT DOOR LOCK SWITCH MUX
2 P96 18LG (LHD) RIGHT DOOR LOCK SWITCH MUX
2 P96 18LG (LHD) RIGHT DOOR LOCK SWITCH MUX
3 Z14 18BK GROUND
3 Z14 18BK/YL GROUND
PASSENGER POWER MIRROR (LHD) - GRAY 7 WAY
CAV CIRCUIT FUNCTION
1 C16 20LB/YL HEATED MIRROR
2 P93 20YL/WT MIRROR HORIZONTAL
3 Z14 18BK/YL GROUND
3 Z14 18BK/YL GROUND
4- -
5 P95 20DB/WT MIRROR VERTICAL
6 P92 20YL MIRROR COMMON
7- -
PASSENGER POWER MIRROR (RHD) - BLUE 7 WAY
CAV CIRCUIT FUNCTION
1 C16 20LB/YL FUSED REAR WINDOW DEFOGGER SWITCH OUTPUT
2 P94 20WT/YL MIRROR HORIZONTAL
3 Z14 18BK/YL GROUND
3 Z14 18BK/YL GROUND
4 P159 18DG/WT MIRROR UNFOLD
5 P91 20WT/BK MIRROR VERTICAL
6 P92 20YL MIRROR COMMON
7 P160 18LB MIRROR FOLD
