Dodge Neon 2001 - Page 408

OXYGEN SENSOR 1/2 DOWNSTREAM - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 K199 20BR/LG (1.6L) (LHD)
1 K199 18BR/VT (1.6L) (RHD) OXYGEN SENSOR 1/2 HEATER CONTROL
1 Z1 18BK (2.0L) GROUND
2 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
3 K127 20DB/OR (1.6L) (LHD) OXYGEN SENSOR GROUND
3 K127 18BK/OR OXYGEN SENSOR GROUND
4 K141 20TN/WT OXYGEN SENSOR 1/2 SIGNAL
PARK/NEUTRAL POSITION SWITCH (ATX) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L1 18VT/BK BACK-UP LAMP FEED
2 T41 18BR/YL PARK/NEUTRAL POSITION SWITCH SENSE
3 F20 18WT FUSED IGNITION SWITCH OUTPUT (RUN)
PASSENGER AIRBAG - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 R44 18DG/YL PASSENGER AIRBAG LINE 2
4 R42 18BK/YL PASSENGER AIRBAG LINE 1
PASSENGER CYLINDER LOCK SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 P97 18LG (RHD) LEFT DOOR LOCK SWITCH MUX
1 P96 18LG (LHD) RIGHT DOOR LOCK SWITCH MUX
2 Z14 18BK GROUND
PASSENGER DOOR AJAR SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 M9 18TN/BK (RHD) LEFT FRONT DOOR AJAR SWITCH SENSE
1 M9 18TN/BK (LHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
2 Z14 18BK GROUND

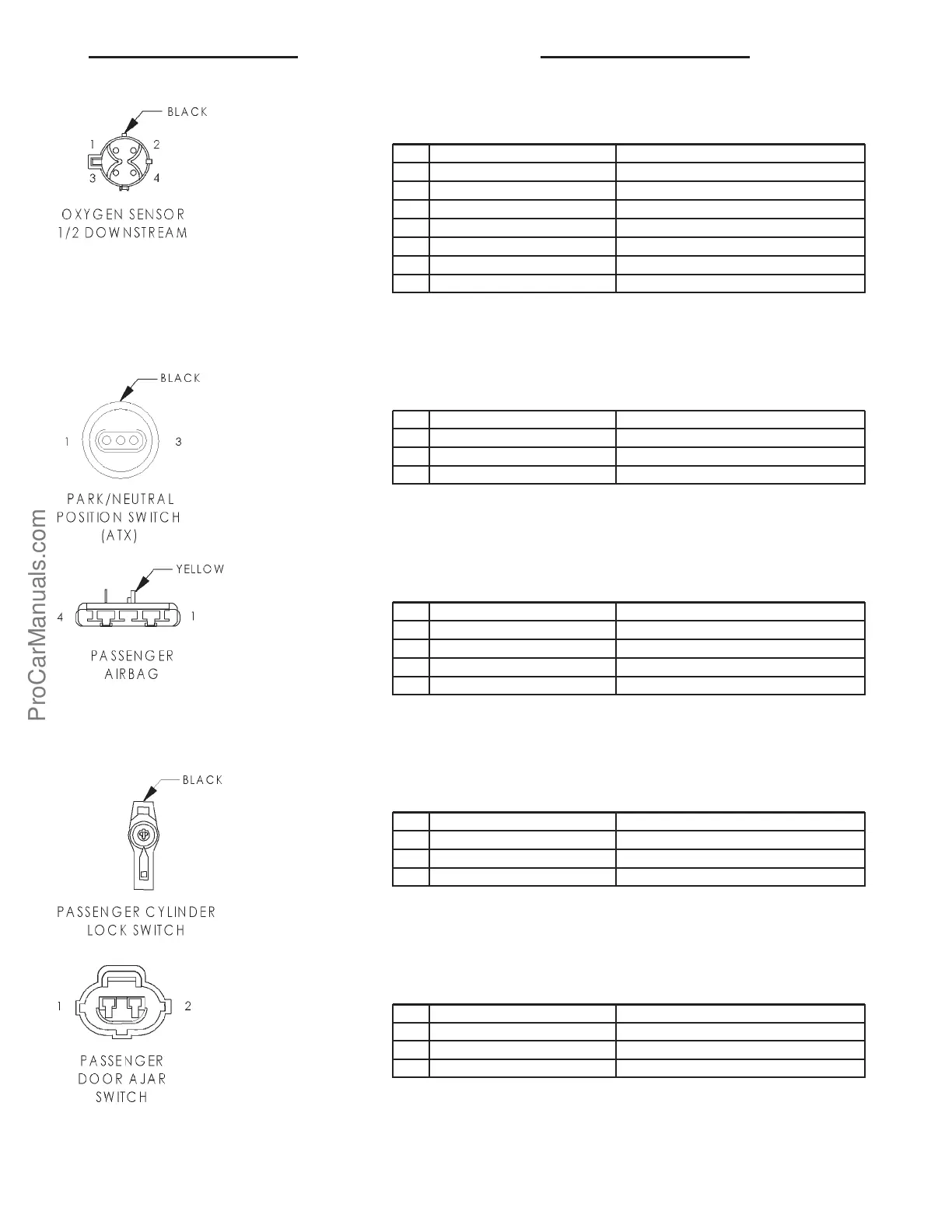

PL 8W-80 CONNECTOR PINOUTS 8Wa - 80 - 43
ProCarManuals.com
2001 NEON
