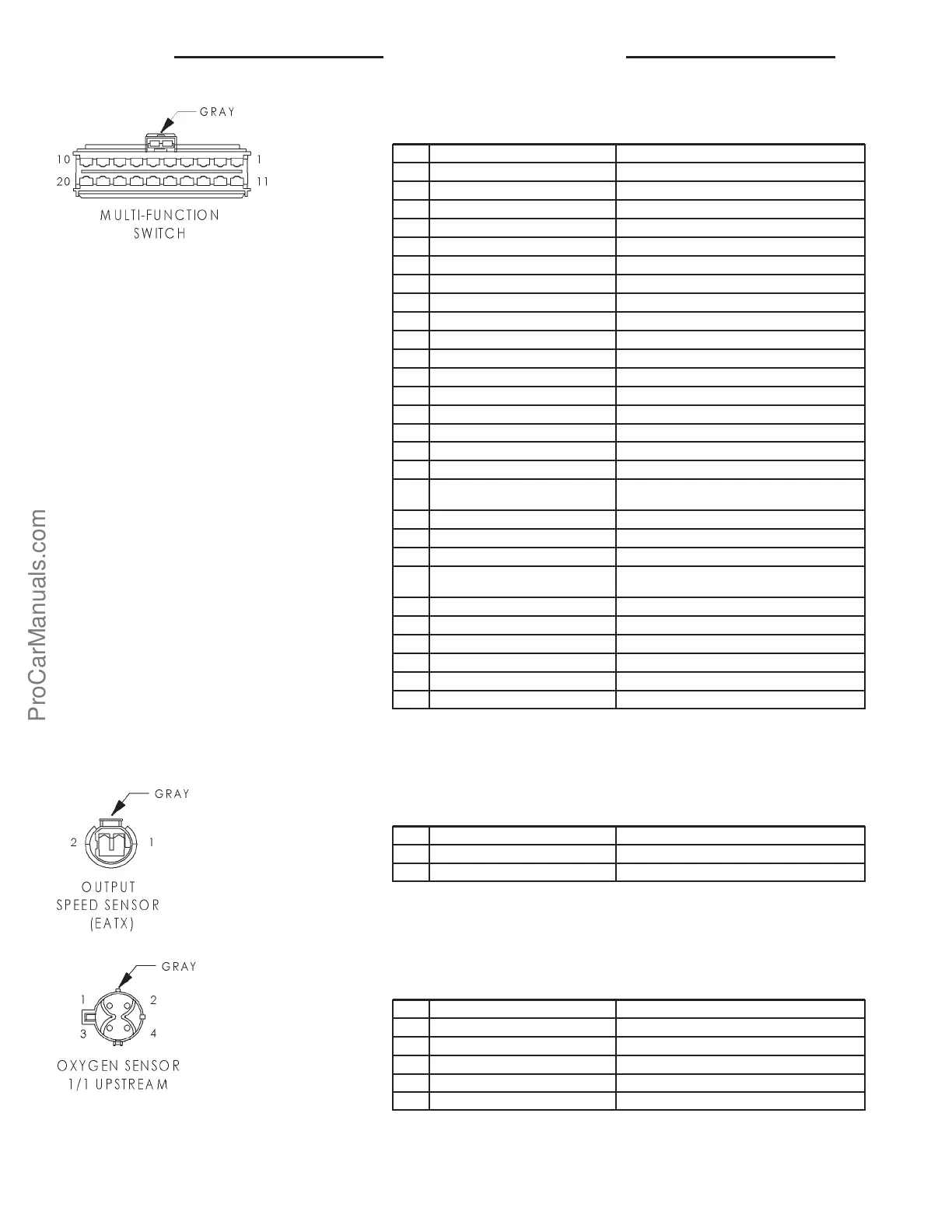

MULTI-FUNCTION SWITCH - GRAY 20 WAY
CAV CIRCUIT FUNCTION
1 L50 20WT/TN BRAKE LAMP SWITCH OUTPUT
2 L61 20LG LEFT TURN SIGNAL
2 L61 20LG (BUILT-UP-EXPORT) LEFT TURN SIGNAL
3 L6 20RD/WT FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
4 L63 20DG/RD LEFT TURN SIGNAL
4 L631 20DG/RD (BUILT-UP-EXPORT) LEFT TURN SIGNAL
5 L62 20BR/RD RIGHT TURN SIGNAL
5 L621 20BR/RD (BUILT-UP-EXPORT) RIGHT TURN SIGNAL
6 L60 20TN RIGHT TURN SIGNAL
6 L60 20TN (BUILT-UP-EXPORT) RIGHT TURN SIGNAL
7 Z1 20BK GROUND
8 E19 22RD PANEL LAMPS DIMMER SIGNAL
9 L7 20BK/YL HEADLAMP SWITCH OUTPUT
10 - -
11 A15 20WT FUSED B(+)
12 L38 16BR/WT (BUILT-UP-EXPORT) REAR FOG LAMP FEED
12 L38 16BR/WT (BUILT-UP-EXPORT) REAR FOG LAMP FEED
13 L4 14VT/WT (EXCEPT BUILT-UP-EX-
PORT)
DIMMER SWITCH LOW BEAM OUTPUT
13 F61 16WT/OR (BUILT-UP-EXPORT) FUSED B(+)
14 L39 16LB (BUILT-IP-EXPORT) FRONT FOG LAMP SWITCH OUTPUT
14 L39 16LB (BUILT-UP-EXPORT) FRONT FOG LAMP SWITCH OUTPUT
14 F39 14PK/LG (EXCEPT BUILT-UP-EX-
PORT)
FRONT FOG LAMP SWITCH OUTPUT
15 - -
16 L4 14VT/WT DIMMER SWITCH LOW BEAM OUTPUT
17 L3 14RD/OR DIMMER SWITCH HIGH BEAM OUTPUT
18 F3 12LB/OR FUSED B(+)
19 F3 12LB/OR FUSED B(+)
20 F33 20PK/RD FUSED B(+)
OUTPUT SPEED SENSOR (EATX) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 T13 18DB/BK SPEED SENSOR GROUND
2 T14 18LG/WT OUTPUT SPEED SENSOR SIGNAL
OXYGEN SENSOR 1/1 UPSTREAM - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K79 18OR/RD OXYGEN SENSOR 1/1 HEATER CONTROL
3 K902 20BR (1.6L) OXYGEN SENSOR GROUND
3 K127 18BK/OR (2.0L) OXYGEN SENSOR GROUND
4 K41 20BK/DG OXYGEN SENSOR 1/1 SIGNAL
8Wa - 80 - 42 8W-80 CONNECTOR PINOUTS PL
