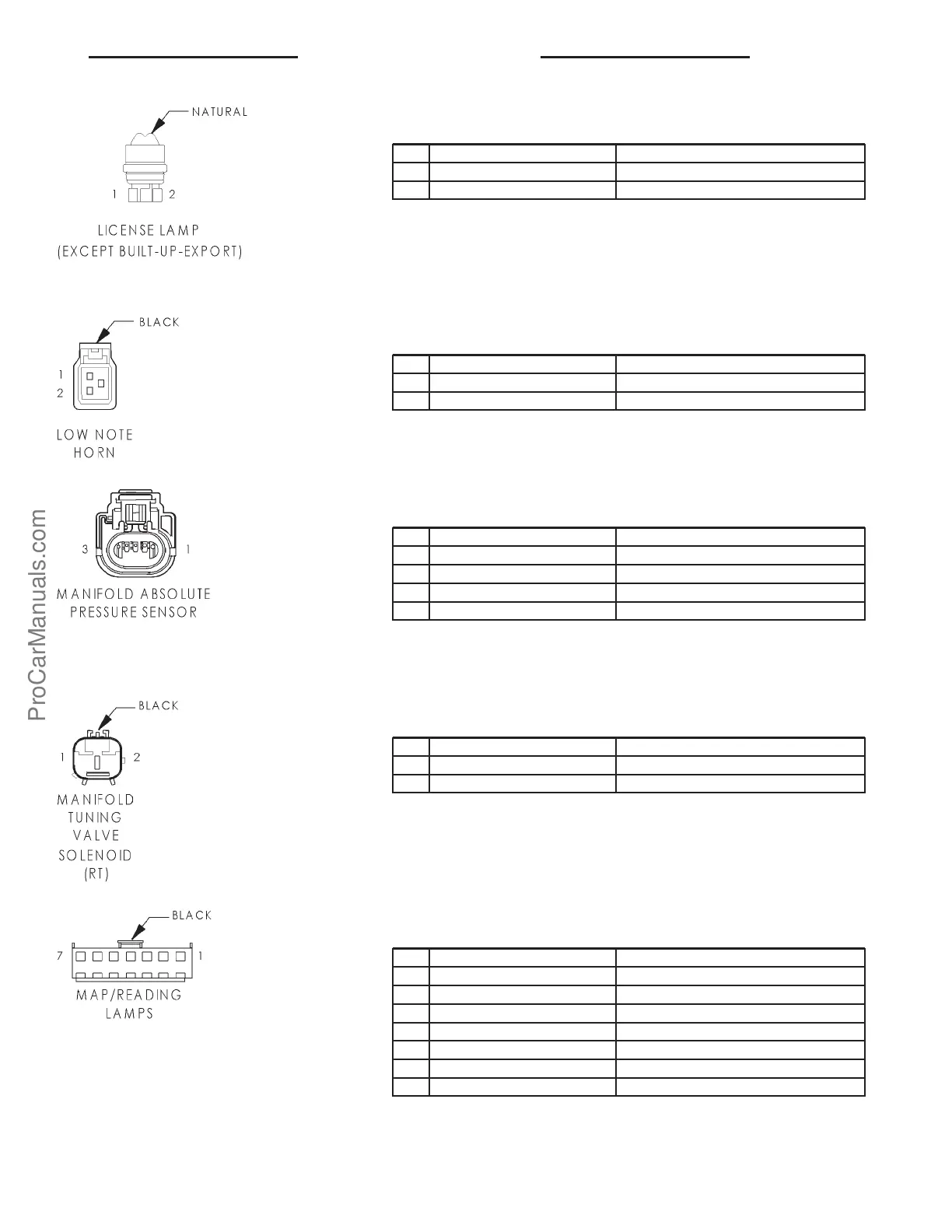

LICENSE LAMP (EXCEPT BUILT-UP-EXPORT) - NATURAL 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 L7 18BK/YL HEADLAMP SWITCH OUTPUT
LOW NOTE HORN - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 X2 18DG/RD HORN RELAY OUTPUT
MANIFOLD ABSOLUTE PRESSURE SENSOR-3WAY
CAV CIRCUIT FUNCTION
1 K1 20DG/RD MAP SENSOR SIGNAL
2 K901 20DB/VT (1.6L) MAP SENSOR GROUND
2 K4 18BK/LB (2.0L) SENSOR GROUND
3 K6 18VT/WT 5V SUPPLY
MANIFOLD TUNING VALVE SOLENOID (RT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K201 20BR/YL MANIFOLD TINING VALVE RELAY OUTPUT
2 Z1 18BK GROUND
MAP/READING LAMPS - BLACK 7 WAY
CAV CIRCUIT FUNCTION
1- -
2 Z3 18BK/OR GROUND
3- -
4- -
5- -
6- -
7 F10 18YL/RD FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
PL 8W-80 CONNECTOR PINOUTS 8Wa - 80 - 41
