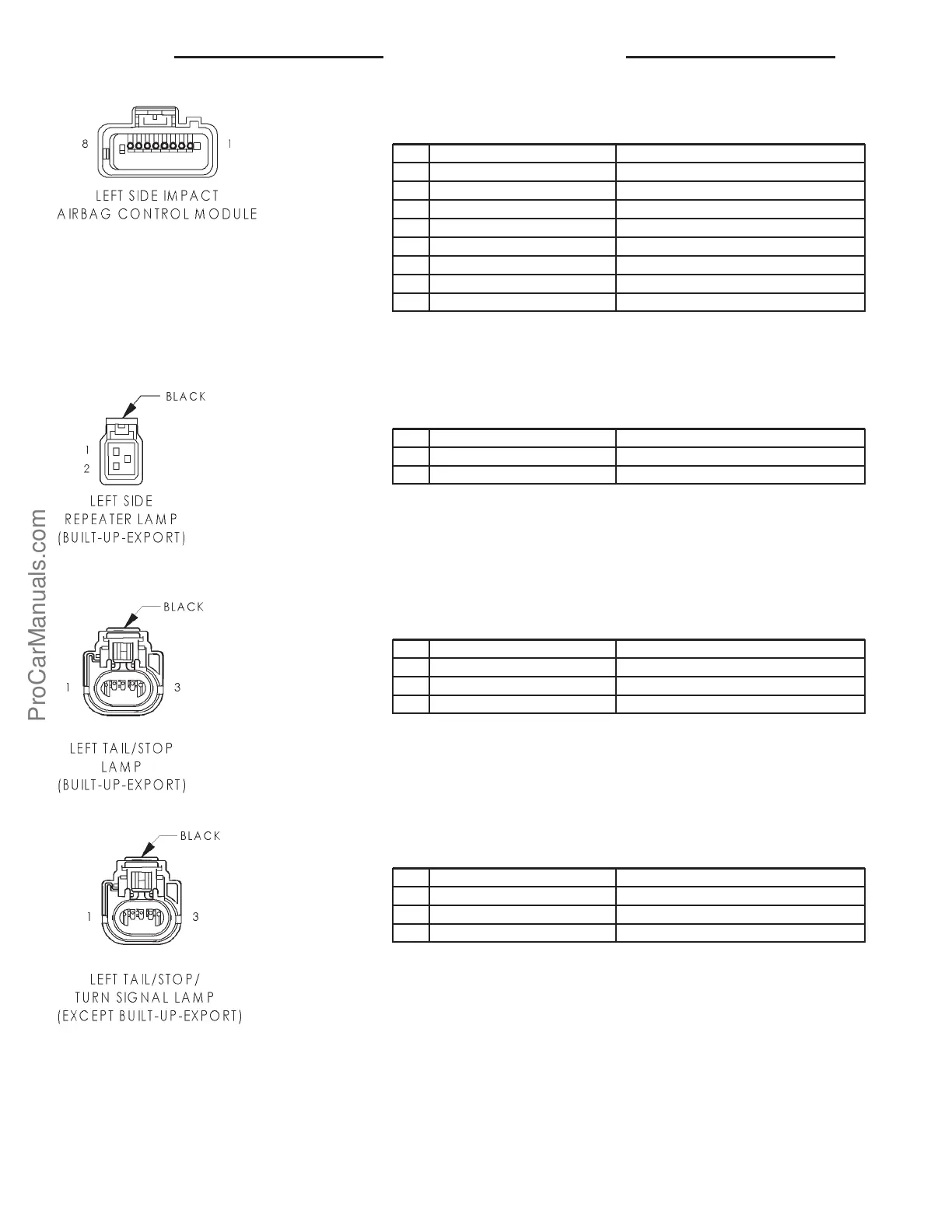

LEFT SIDE IMPACT AIRBAG CONTROL MODULE-8WAY
CAV CIRCUIT FUNCTION
1 F15 18DG/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
2- -
3 R33 18OR/YL LEFT SEAT SQUIB LINE 1
4 R31 18YL/OR LEFT SEAT SQUIB LINE 2
5 Z6 18BK/PK GROUND
6- -
7- -
8 D25 18VT/YL PCI BUS
LEFT SIDE REPEATER LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 L61 20LG LEFT TURN SIGNAL
2 Z1 20BK GROUND
LEFT TAIL/STOP LAMP (BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 L7 18BK/YL HEADLAMP SWITCH OUTPUT
3 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
LEFT TAIL/STOP/TURN SIGNAL LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 L7 18BK/YL HEADLAMP SWITCH OUTPUT
3 L63 18DG/RD LEFT TURN SIGNAL
