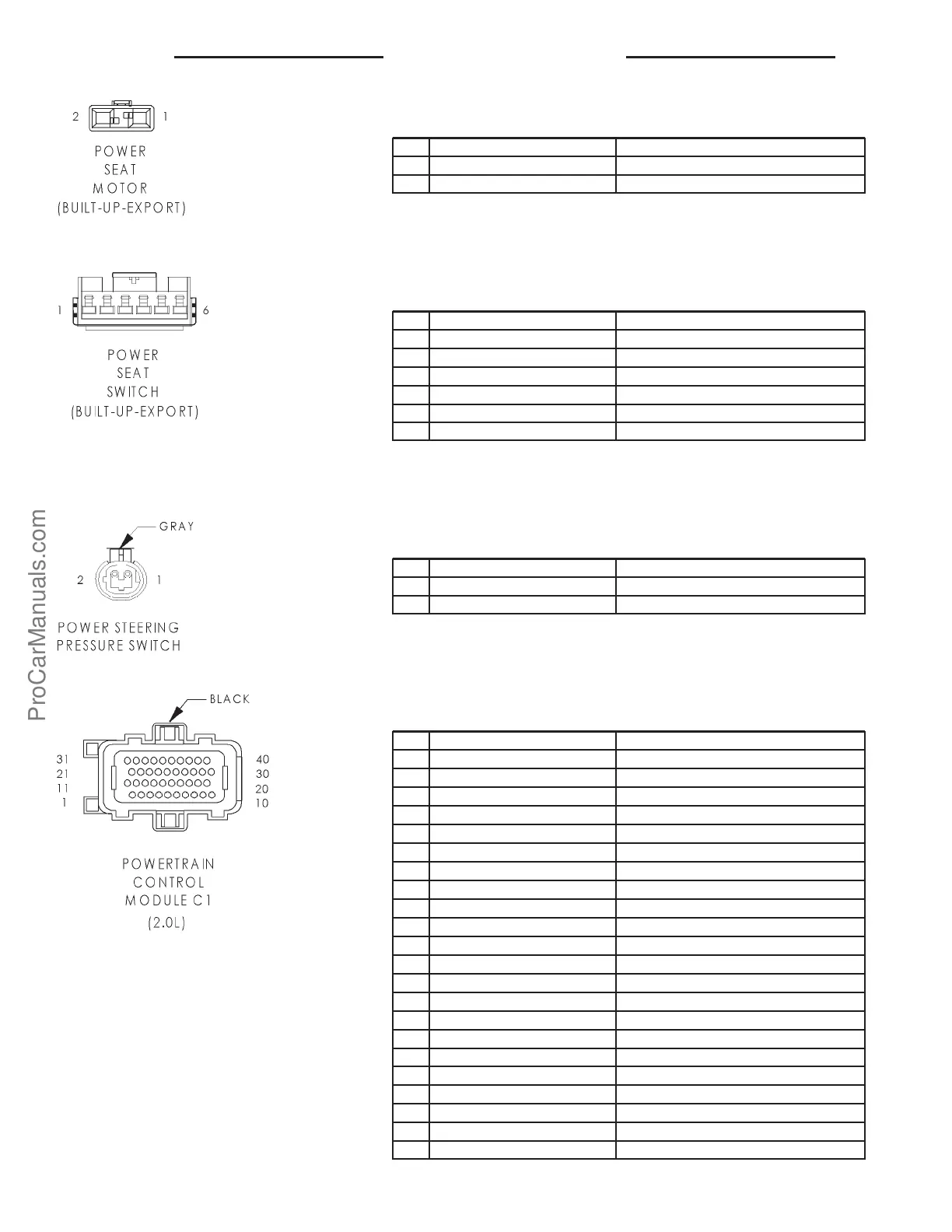

POWER SEAT MOTOR (BUILT-UP-EXPORT)-2WAY
CAV CIRCUIT FUNCTION
1 P121 16LG/OR SEAT DOWN DRIVER
2 P120 16LG/YL SEAT UP DRIVER
POWER SEAT SWITCH (BUILT-UP-EXPORT)-6WAY
CAV CIRCUIT FUNCTION
1- -
2 Z1 16BK GROUND
3 P120 16LG/YL SEAT UP DRIVER
4 P121 16LG/OR SEAT DOWN DRIVER
5 Z1 16BK GROUND
6 A120 16RD/LG FUSED B(+)
POWER STEERING PRESSURE SWITCH - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 K10 20WT STEERING PRESSURE SWITCH SENSE
2 Z12 20BK/TN GROUND
POWERTRAIN CONTROL MODULE C1 (2.0L) - BLACK 40 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 K17 18DB/TN IGNITION COIL NO. 2 DRIVER
4- -
5 V32 20YL/RD SPEED CONTROL SUPPLY
6 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
7 K13 18YL/WT FUEL INJECTOR NO. 3 DRIVER
8 K20 18DG GENERATOR FIELD DRIVER (+)
9- -
10 Z12 18BK/TN GROUND
11 K19 18BK/GY IGNITION COIL NO. 1 DRIVER
12 G6 20GY ENGINE OIL PRESSURE SWITCH SENSE
13 K11 18WT/DB FUEL INJECTOR NO. 1 DRIVER
14 - -
15 - -
16 K14 18LB/BR FUEL INJECTOR NO. 4 DRIVER
17 K12 18TN FUEL INJECTOR NO. 2 DRIVER
18 K79 18OR/RD OXYGEN SENSOR 1/1 HEATER CONTROL
19 - -
20 F12 18DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
21 - -
22 - -
8Wa - 80 - 46 8W-80 CONNECTOR PINOUTS PL
