POWERTRAIN CONTROL MODULE C1 (2.0L) - BLACK 40 WAY
CAV CIRCUIT FUNCTION
23 K119 20LG/BK CLUTCH SWITCH
24 - -
25 K42 20DB/LG KNOCK SENSOR SIGNAL
26 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
27 K127 18BK/OR OXYGEN SENSOR GROUND
28 - -
29 - -
30 K41 20BK/DG OXYGEN SENSOR 1/1 SIGNAL
31 K90 20TN ENGINE STARTER MOTOR RELAY CONTROL
32 K24 20GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
33 K44 20TN/YL CAMSHAFT POSITION SENSOR SIGNAL
34 - -
35 K22 20OR/DB THROTTLE POSITION SENSOR SIGNAL
36 K1 20DG/RD MAP SENSOR SIGNAL
37 - -
38 C20 18BR/OR A/C SWITCH SENSE
39 K200 20BR/WT (RT PACKAGE) MANIFOLD TUNING VALVE RELAY CONTROL
40 - -

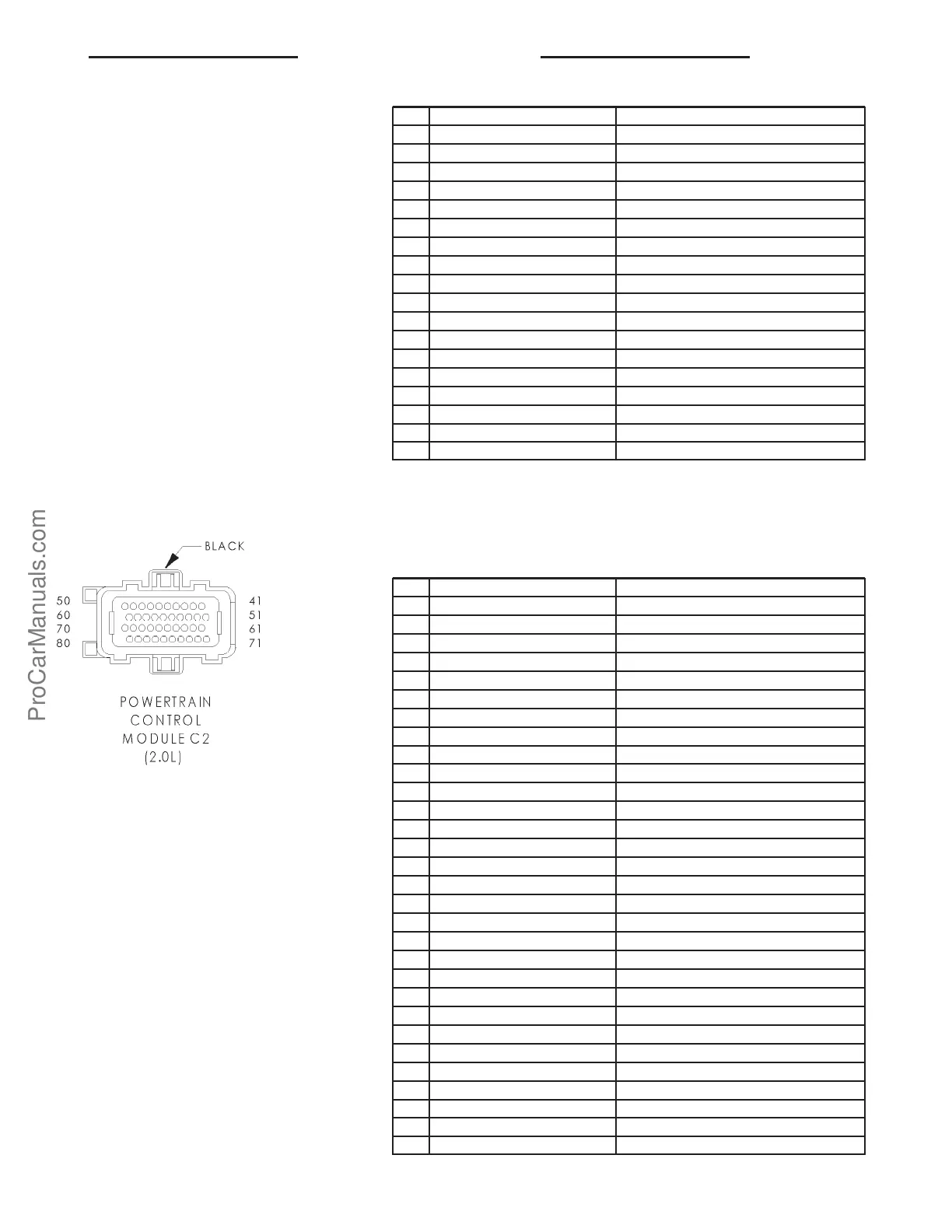

POWERTRAIN CONTROL MODULE C2 (2.0L) - BLACK 40 WAY
CAV CIRCUIT FUNCTION
41 V37 20RD/LG (SPEED CONTROL) SPEED CONTROL SWITCH SIGNAL
42 - -
43 K4 20BK/LB SENSOR GROUND
44 K7 20OR 8V SUPPLY
45 K10 20WT STEERING PRESSURE SWITCH SENSE
46 A14 18RD/WT FUSED B(+)
47 Z11 18BK/WT GROUND
48 - -
49 K60 20YL/BK IDLE AIR CONTROL DRIVER
50 Z12 18BK/TN GROUND
51 K141 20TN/WT OXYGEN SENSOR 1/2 SIGNAL
52 G31 20VT/LG INLET AIR TEMPERATURE SENSOR SIGNAL
53 - -
54 - -
55 C27 18DB/PK RADIATOR FAN RELAY CONTROL
56 V36 20TN/RD (SPEED CONTROL) SPEED CONTROL VACUUM SOLENOID CONTROL
57 K39 20GY/RD (EATX) IDLE AIR CONTROL MOTOR SENSE
57 K40 20BR/WT (EXCEPT EATX) IDLE AIR CONTROL MOTOR SENSE
58 - -
59 D25 20VT/YL PCI BUS
60 - -
61 K6 18VT/WT 5V SUPPLY
62 K29 20WT/PK BRAKE LAMP SWITCH SENSE
63 T10 18YL/DG (EATX) TORQUE MANAGEMENT REQUEST SENSE
64 C28 18DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
65 D21 20PK SCI TRANSMIT
66 G7 20WT/OR VEHICLE SPEED SENSOR SIGNAL
67 K51 18DB/YL AUTOMATIC SHUT DOWN RELAY CONTROL
68 K52 20PK/BK EVAP/PURGE SOLENOID CONTROL
69 - -
PL 8W-80 CONNECTOR PINOUTS 8Wa - 80 - 47
