Dodge Neon 2001 - Page 413

POWERTRAIN CONTROL MODULE C2 (2.0L) - BLACK 40 WAY
CAV CIRCUIT FUNCTION
70 K108 20DB EVAPORATIVE EMISSION SOLENOID SENSE
71 G15 18GY/RD BRAKE FLUID LEVEL SWITCH SENSE
72 K107 18YL (LHD) LEAK DETECTION PUMP SWITCH SENSE
73 - -
74 K31 18BR FUEL PUMP RELAY CONTROL
75 D20 20LG SCI RECEIVE
76 T141 20YL/RD (MTX) CLUTCH INTERLOCK SWITCH SENSE
76 T41 18BR/YL (ATX) PARK/NEUTRAL POSITION SWITCH SENSE
76 T41 18BR/YL (EATX) TRS T41 SENSE
77 K106 18WT/DB (LHD) LEAK DETECTION PUMP SOLENOID CONTROL
78 K54 18OR/BK (ATX) TORQUE CONVERTER CLUTCH SOLENOID CONTROL
79 - -
80 V35 20LG/RD (SPEED CONTROL) SPEED CONTROL VENT SOLENOID CONTROL

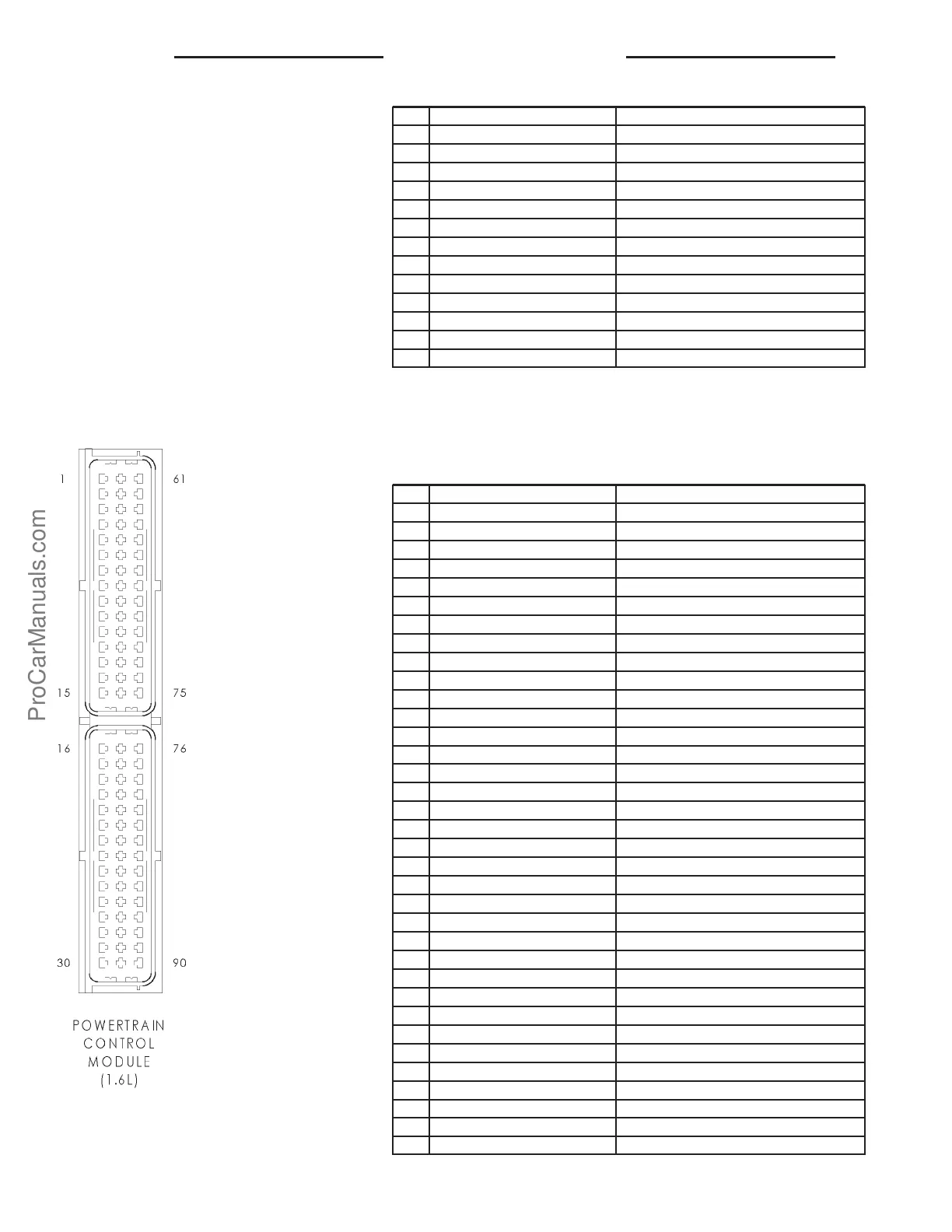

POWERTRAIN CONTROL MODULE (1.6L) - 90 WAY
CAV CIRCUIT FUNCTION
1 A14 18RD/WT FUSED B(+)
2- -
3- -
4- -
5 C28 18DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
6 D25 20VT/YL PCI BUS
7 K81 20DB/DG PEDAL POSITION SENSOR NO. 2 SIGNAL
8 C20 18BR/OR A/C SWITCH SENSE
9 K921 20BR/LG INLET AIR TEMPERATURE SENSOR GROUND
10 N907 20BR/OR VEHICLE SPEED SENSOR GROUND
11 K901 20DB/VT MAP SENSOR GROUND
12 F858 20PK PEDAL POSITION SENSOR NO. 1 -5V SUPPLY
13 F859 20DG/PK PEDAL POSITION SENSOR NO. 2 -5V SUPPLY
14 F855 20OR/PK THROTTLE POSITION SENSOR 5V SUPPLY
15 - -
16 K1 20DG/RD MAP SENSOR SIGNAL
17 K2 20TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
18 K41 20BK/DG OXYGEN SENSOR 1/1 SIGNAL
19 K167 20BR/YL PEDAL POSITION SENSOR NO. 1 GROUND
20 K42 20DB/LG KNOCK SENSOR SIGNAL
21 K24 20GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
22 K981 20BR/DG PEDAL POSITION SENSOR NO. 2 GROUND
23 K922 20DB/OR THROTTLE POSITION SENSOR GROUND
24 K902 20BR OXYGEN SENSOR GROUND
25 K924 20BR/WT CRANKSHAFT POSITION SENSOR GROUND
26 K942 20BR/DB KNOCK SENSOR GROUND
27 - -
28 Z12 16BK/TN GROUND
29 Z12 16BK/TN GROUND
30 K17 18DB/TN IGNITION COIL NO. 2 DRIVER
31 V50 20VT/OR THROTTLE MOTOR (+)
32 V51 20VT/BR THROTTLE MOTOR (-)
33 K4 20BK/LB SENSOR GROUND
34 K51 18DB/YL AUTOMATIC SHUT DOWN RELAY CONTROL
35 K90 20TN ENGINE STARTER MOTOR RELAY CONTROL
8Wa - 80 - 48 8W-80 CONNECTOR PINOUTS PL
ProCarManuals.com
2001 NEON
