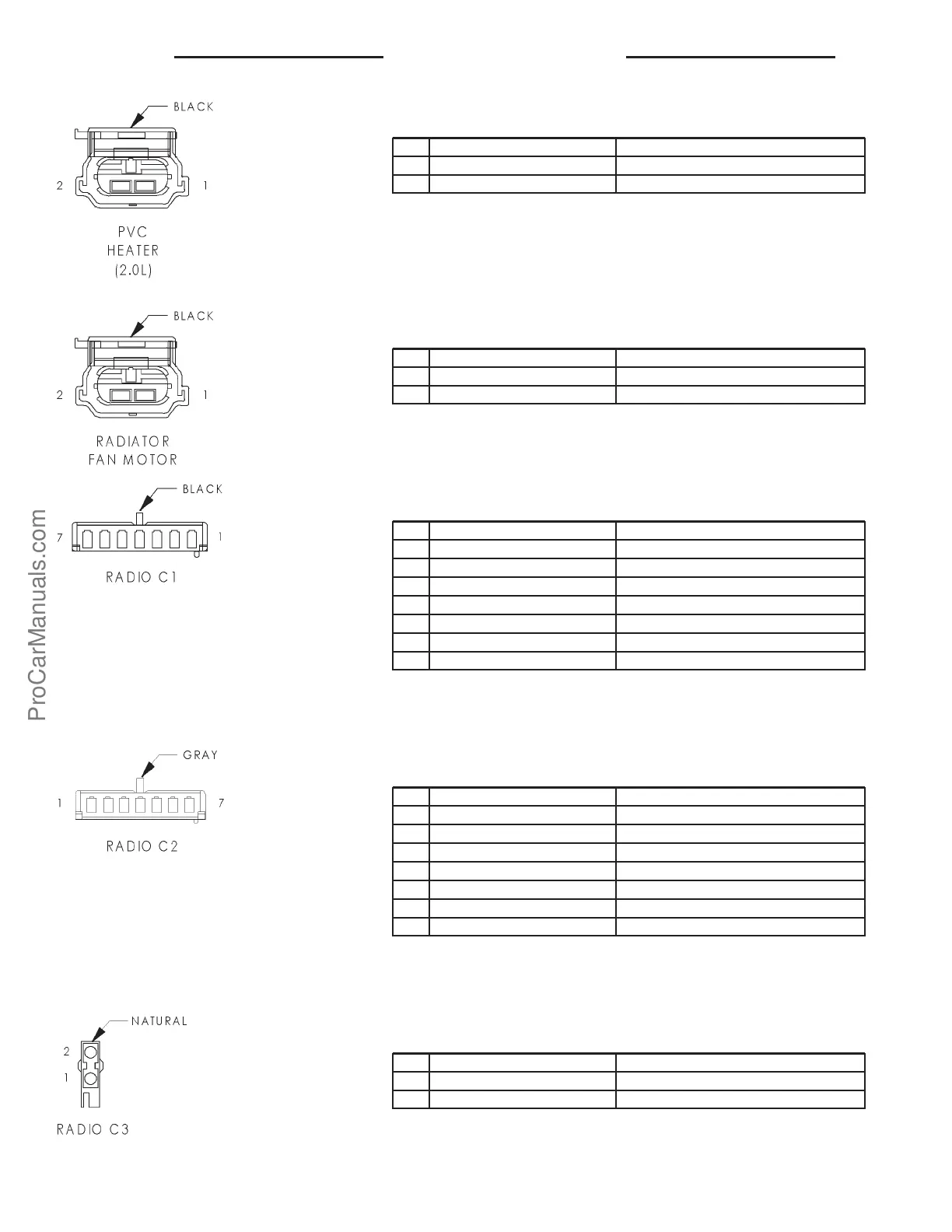

PVC HEATER (2.0L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 A142 18DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
2 Z1 18BK GROUND
RADIATOR FAN MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C25 12LG RADIATOR FAN RELAY OUTPUT
2 Z1 14BK GROUND
RADIO C1 - BLACK 7 WAY
CAV CIRCUIT FUNCTION
1- -
2 X51 20BR/YL LEFT REAR SPEAKER (+)
3 X52 20DB/WT RIGHT REAR SPEAKER (+)
4 X53 20DG LEFT FRONT SPEAKER (+)
5 X54 20VT RIGHT FRONT SPEAKER (+)
6 X57 20BR/LB LEFT REAR SPEAKER (-)
7 X58 20DB/OR RIGHT REAR SPEAKER (-)
RADIO C2 - GRAY 7 WAY
CAV CIRCUIT FUNCTION
1- -
2 X55 20BR/RD LEFT FRONT SPEAKER (-)
3 X56 20DB/RD RIGHT FRONT SPEAKER (-)
4- -
5 E2 20OR PANEL LAMPS DRIVER
6 X12 18RD/WT FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
7 M1 20PK FUSED B(+)
RADIO C3 - NATURAL 2 WAY
CAV CIRCUIT FUNCTION
1 D25 20VT/YL PCI BUS
2- -
