Dodge Neon 2001 - Page 417

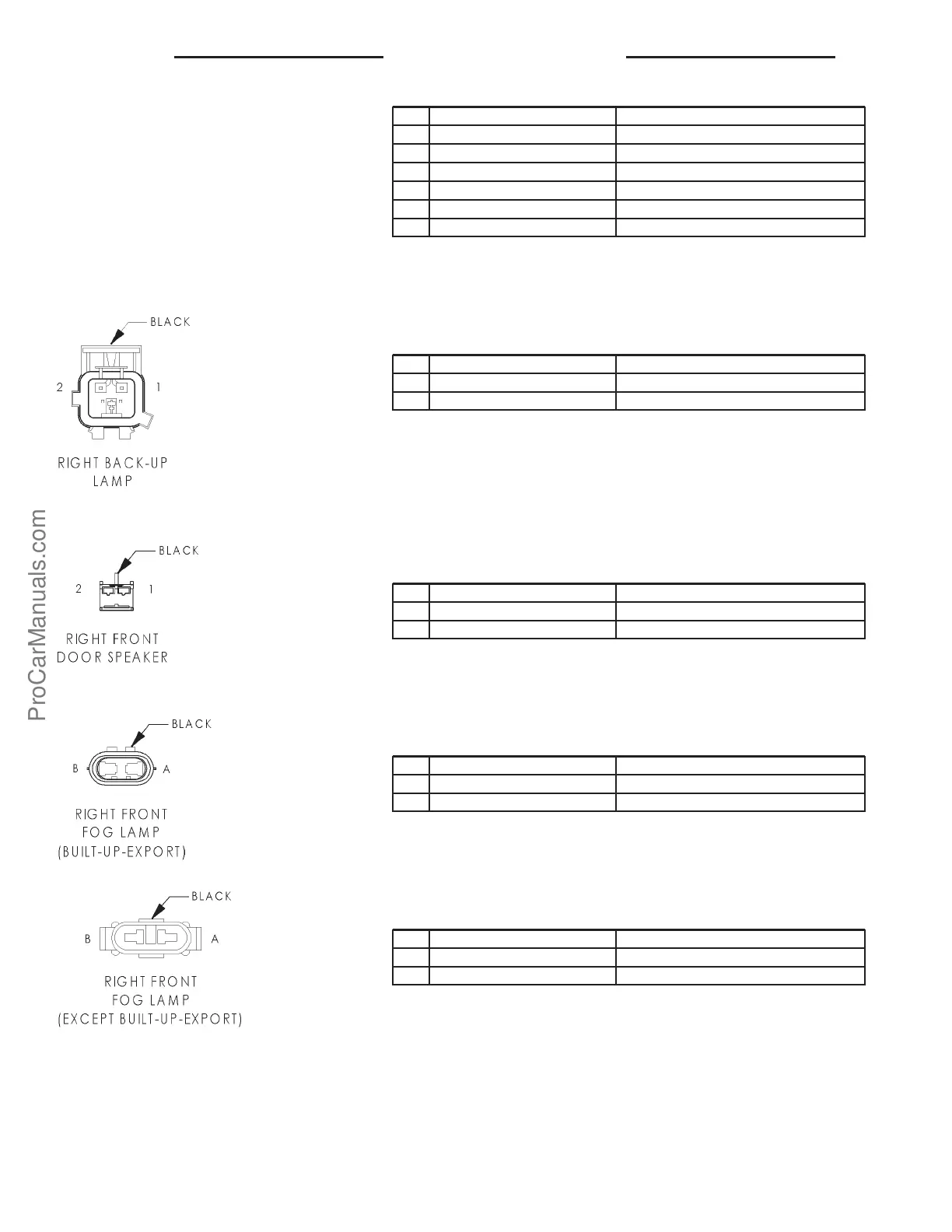

REMOTE KEYLESS ENTRY MODULE - BLACK 26 WAY
CAV CIRCUIT FUNCTION
22 G5 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
23 G70 20BR/TN HOOD AJAR SWITCH SENSE
24 G71 20VT/YL DECKLID SECURITY SWITCH SENSE
25 G74 18TN (RHD) RIGHT FRONT DOOR AJAR SWITCH SENSE
25 G75 18TN (LHD) LEFT FRONT DOOR AJAR SWITCH SENSE
26 X161 18WT/BK (BUILT-UP-EXPORT) ANTENNA (JAPAN)
RIGHT BACK-UP LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 L1 18VT/BK BACK-UP LAMP FEED
RIGHT FRONT DOOR SPEAKER - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X54 20VT RIGHT FRONT SPEAKER (+)
2 X56 20DB/RD RIGHT FRONT SPEAKER (-)
RIGHT FRONT FOG LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
B Z1 20BK GROUND
A L39 16LB FUSED FOG LAMP SWITCH OUTPUT
RIGHT FRONT FOG LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
B Z1 18BK GROUND
A L39 18LB FUSED FOG LAMP SWITCH OUTPUT
8Wa - 80 - 52 8W-80 CONNECTOR PINOUTS PL
