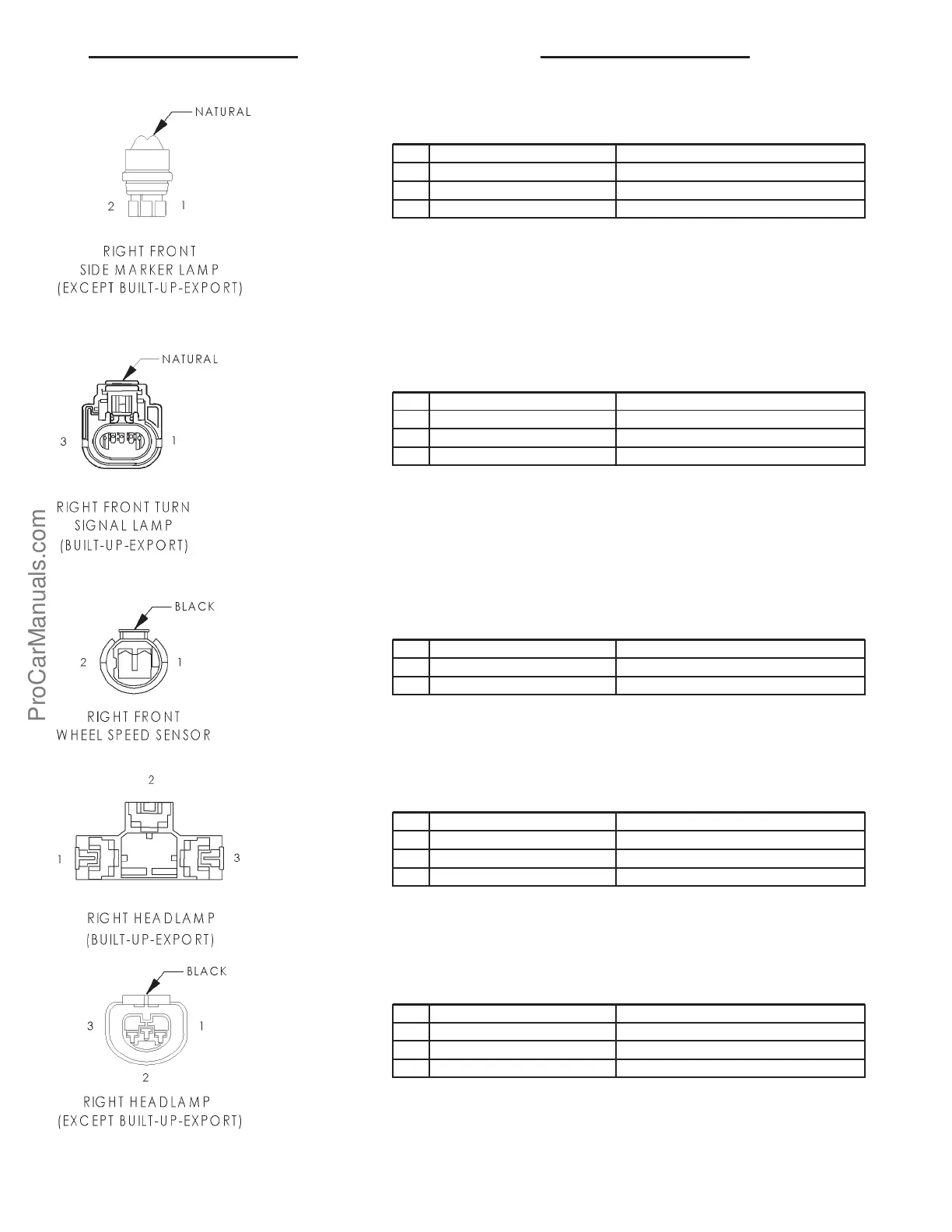

RIGHT FRONT SIDE MARKER LAMP (EXCEPT BUILT-UP-EXPORT) - NATURAL 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 20BK (EXCEPT EATX) GROUND
1 L160 18TN/RD (EATX) RIGHT TURN SIGNAL
2 L7 20BK/YL HEADLAMP SWITCH OUTPUT
RIGHT FRONT TURN SIGNAL LAMP (BUILT-UP-EXPORT) - NATURAL 2 WAY
CAV CIRCUIT FUNCTION
1 L160 18TN/RD RIGHT TURN SIGNAL
2 L250 18WT (EATX) DUMMY CIRCUIT PLUG
3 Z1 18BK GROUND
RIGHT FRONT WHEEL SPEED SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B7 18WT 12 VOLT SUPPLY
2 B6 18WT/DB RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
RIGHT HEADLAMP (BUILT-UP-EXPORT)-3WAY
CAV CIRCUIT FUNCTION
1 L3 16RD/OR DIMMER SWITCH HIGH BEAM OUTPUT
2 L44 14VT/RD FUSED RIGHT LOW BEAM OUTPUT
3 Z1 14BK GROUND
RIGHT HEADLAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L44 14VT/RD FUSED RIGHT LOW BEAM OUTPUT
2 Z1 14BK GROUND
3 L3 16RD/OR DIMMER SWITCH HIGH BEAM OUTPUT
PL 8W-80 CONNECTOR PINOUTS 8Wa - 80 - 53
