TRANSMISSION CONTROL MODULE (EATX) - BLACK 60 WAY
CAV CIRCUIT FUNCTION
53 Z14 16BK (EATX BUILT-UP-EXPORT) GROUND
53 Z14 16BK/WT GROUND
54 T54 18VT TRANSMISSION TEMPERATURE SENSOR SIGNAL
55 - -
56 A24 16RD/WT FUSED B(+)
57 Z13 16BK (EATX BUILT-UP-EXPORT) GROUND
57 Z13 16BK/WT (BUILT-UP-EXPORT) GROUND
57 Z13 16BK/WT GROUND
58 G7 18WT/OR VEHICLE SPEED SENSOR SIGNAL
59 T59 18PK UNDERDRIVE SOLENOID CONTROL
60 T60 18BR OVERDRIVE SOLENOID CONTROL

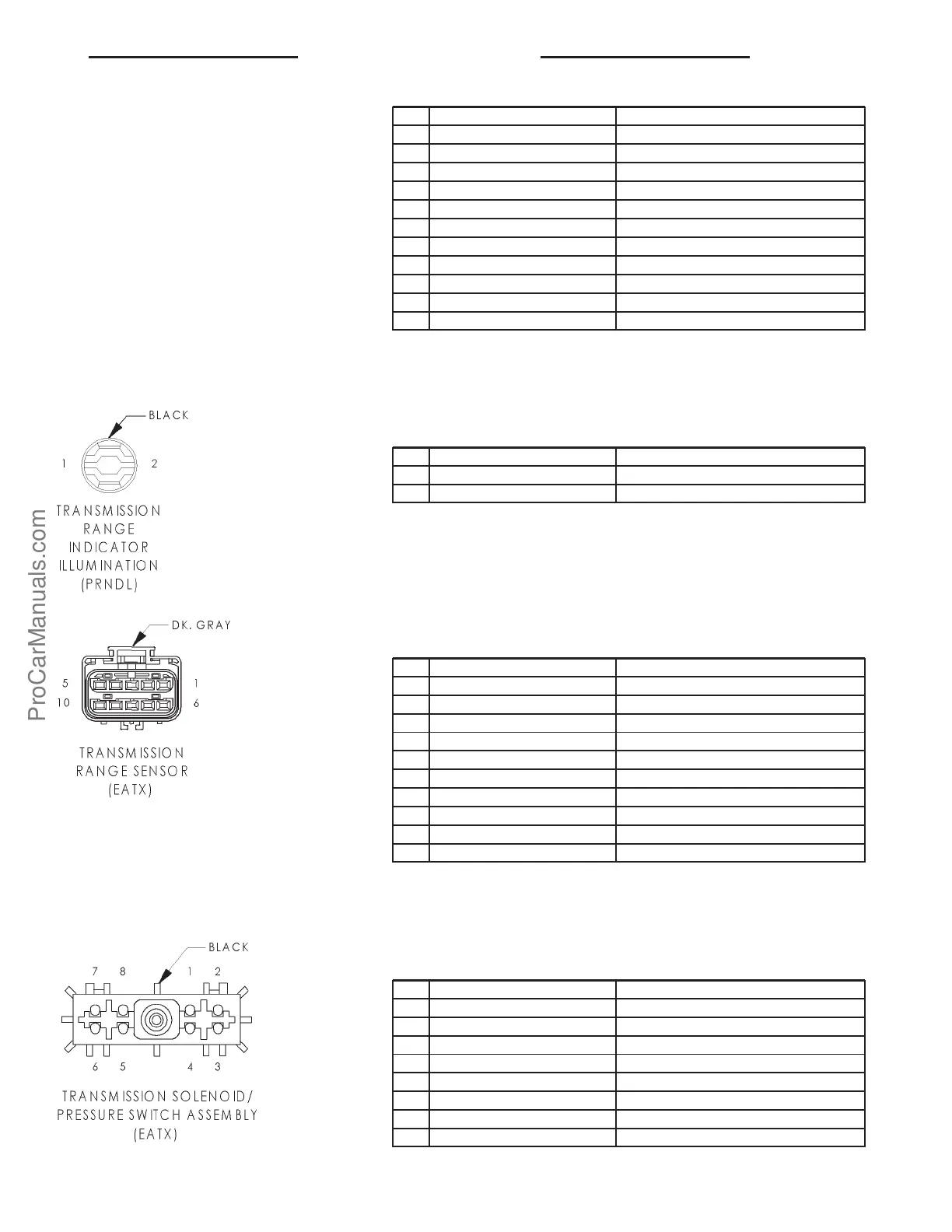

TRANSMISSION RANGE INDICATOR ILLUMINATION (PRNDL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 E2 20OR PANEL LAMPS DRIVER
2 Z3 20BK/OR GROUND
TRANSMISSION RANGE SENSOR (EATX) - DARK GRAY 10 WAY
CAV CIRCUIT FUNCTION
1 F20 20WT FUSED IGNITION SWITCH OUTPUT (RUN)
2- -
3 T13 18BD/BK SPEED SENSOR GROUND
4 T54 18VT TRANSMISSION TEMPERATURE SENSOR SIGNAL
5 T41 18BR/YL PARK/NEUTRAL POSITION SWITCH SENSE (T41)
6 L1 18VT/BK BACK-UP LAMP FEED
7 T1 18LG/GY TRS T1 SENSE
8 T3 18VT TRS T3 SENSE
9 T42 18VT/WT TRS T42 SENSE
10 T41 18BR/YL TRS T41 SENSE
TRANSMISSION SOLENOID/PRESSURE SWITCH ASSEMBLY (EATX) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 T47 18YL/GY 2-4 PRESSURE SWITCH SENSE
2 T50 18DG/TN LOW/REVERSE PRESSURE SWITCH SENSE
3 T9 18OR/BK OVERDRIVE PRESSURE SWITCH SENSE
4 T16 16RD TRANSMISSION CONTROL RELAY OUTPUT
5 T59 18PK UNDERDRIVE SOLENOID CONTROL
6 T60 18BR OVERDRIVE SOLENOID CONTROL
7 T20 18LB LOW/REVERSE SOLENOID CONTROL
8 T19 18WT 2-4 SOLENOID CONTROL
PL 8W-80 CONNECTOR PINOUTS 8Wa - 80 - 61
