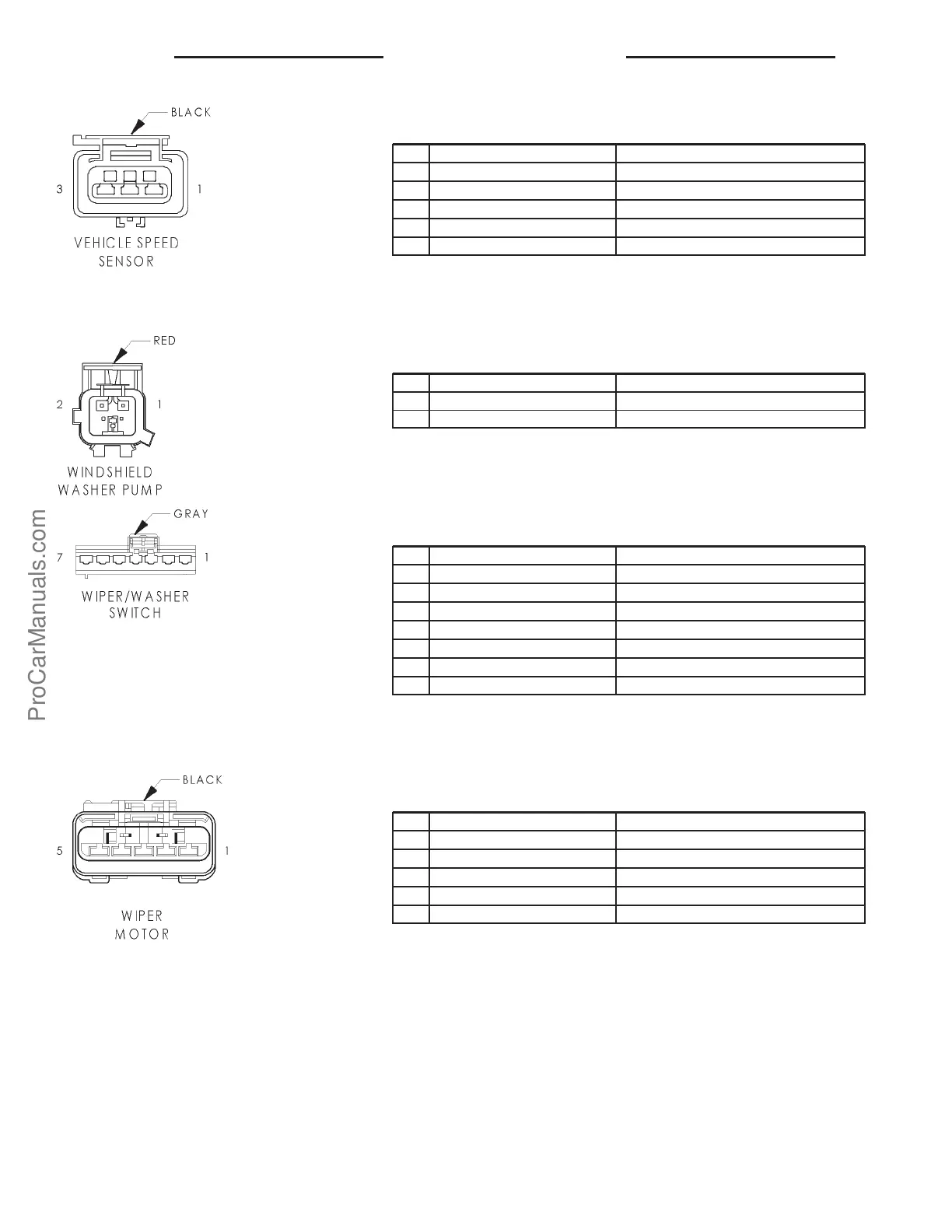

VEHICLE SPEED SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K7 20OR (2.0L) 8V SUPPLY
1 F857 20OR/PK (1.6L) VEHICLE SPEED SENSOR 8V SUPPLY
2 N907 20BR/OR (1.6L) VEHICLE SPEED SENSOR GROUND
2 K4 18BK/LB (2.0L) SENSOR GROUND
3 G7 20WT/OR VEHICLE SPEED SENSOR SIGNAL
WINDSHIELD WASHER PUMP - RED 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 V10 18BR WASHER PUMP CONTROL SWITCH OUTPUT
WIPER/WASHER SWITCH - GRAY 7 WAY
CAV CIRCUIT FUNCTION
1 V5 16DG/YL WIPER PARK SWITCH SENSE
2 Z2 22BK/LG GROUND
3 V10 18BR WASHER PUMP CONTROL SWITCH OUTPUT
4 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
5 V4 16RD/YL WIPER HIGH SPEED OUTPUT
6 V3 16BR/WT WIPER LOW SPEED OUTPUT
7- -
WIPER MOTOR - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 Z1 16BK GROUND
2 V5 16DG/YL WIPER PARK SWITCH SENSE
3 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
4 V3 16BR/WT WIPER LOW SPEED OUTPUT
5 V4 16RD/YL WIPER HIGH SPEED OUTPUT
8Wa - 80 - 62 8W-80 CONNECTOR PINOUTS PL
