(10) Remove valve body-to-transaxle bolts (Fig. 9).
(11) Remove valve body from transaxle (Fig. 10).
Note orientation and location of governor tubes.
(12) Loosen low/reverse band lock nut and adjust-
ing screw to facilitate strut removal (Fig. 11).
(13) Remove low/reverse servo snap ring (Fig. 12).

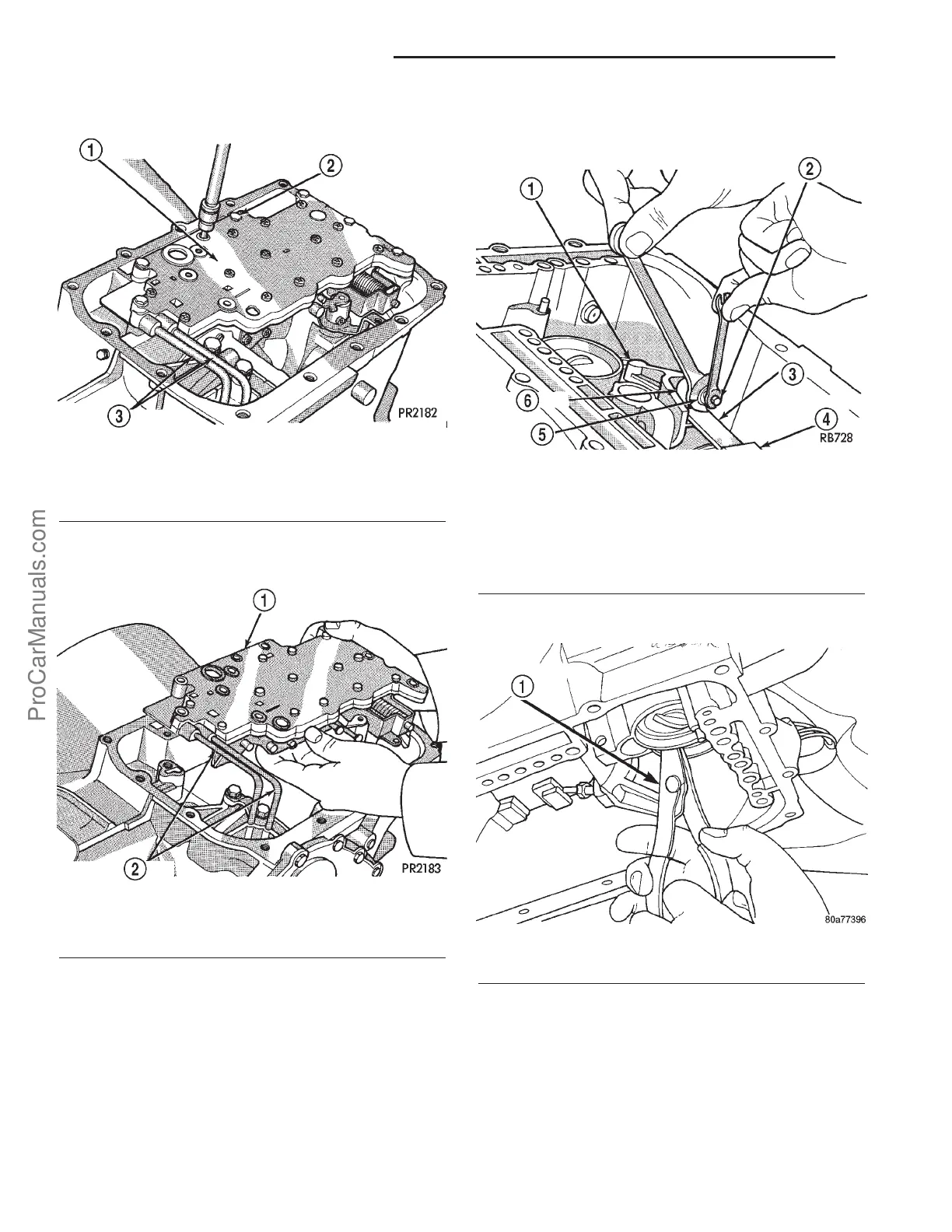

Fig. 9 Valve Body Attaching Bolts
1 - VALVE BODY
2 - VALVE BODY ATTACHING BOLTS (7)
3 - GOVERNOR TUBES
Fig. 10 Valve Body and Governor Tubes
1 - VALVE BODY ASSEMBLY
2 - GOVERNOR TUBES
Fig. 11 Loosen Low/Reverse Band
1 - LOW-REVERSE BAND LEVER
2 - ADJUSTING SCREW
3 - STRUT
4 - LOW-REVERSE BAND
5 - LOCK NUT
6 - LEVER (SHORT)
Fig. 12 Low/Reverse Servo Snap Ring
1 - SNAP-RING PLIERS
21s - 26 31TH AUTOMATIC TRANSAXLE PL
31TH AUTOMATIC TRANSAXLE (Continued)
