(14) Remove low/reverse servo retainer, spring,
and servo (Fig. 13).
(15) Remove accumulator snap ring (Fig. 14).
(16) Remove accumulator plate (Fig. 15).
(17) Remove accumulator spring and piston (Fig.
16).

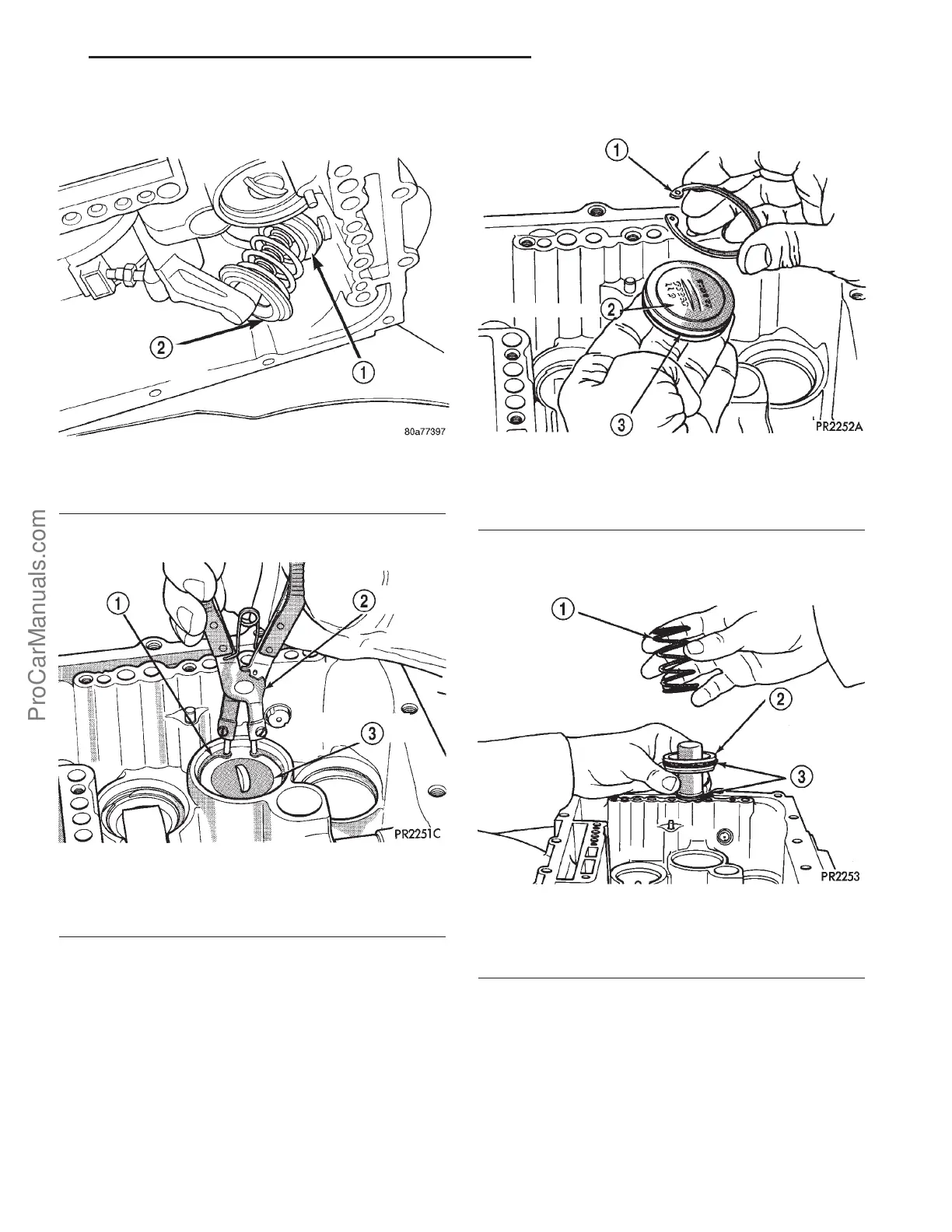

Fig. 13 Remove Retainer, Spring and Servo
1 - SERVO PISTON
2 - SPRING AND RETAINER
Fig. 14 Accumulator Snap Ring
1 - ACCUMULATOR PLATE SNAP RING
2 - SNAP RING PLIERS
3 - ACCUMULATOR PLATE
Fig. 15 Accumulator Plate and Snap Ring
1 - SNAP RING
2 - ACCUMULATOR PLATE
3-88O’’ RING
Fig. 16 Accumulator Spring and Piston
1 - ACCUMULATOR SPRING
2 - ACCUMULATOR PISTON
3 - SEAL RINGS
PL 31TH AUTOMATIC TRANSAXLE 21s - 27
31TH AUTOMATIC TRANSAXLE (Continued)
