(33) Remove #3 thrust washer (Fig. 33).
(34) Remove front planetary gear-to-output shaft
snap ring (Fig. 34).
(35) Remove front planetary gear assembly from
output shaft (Fig. 35).
(36) Remove #6 thrust washer from sun gear driv-
ing shell (Fig. 35).
(37) Remove sun gear driving shell (Fig. 36) (Fig.
37).

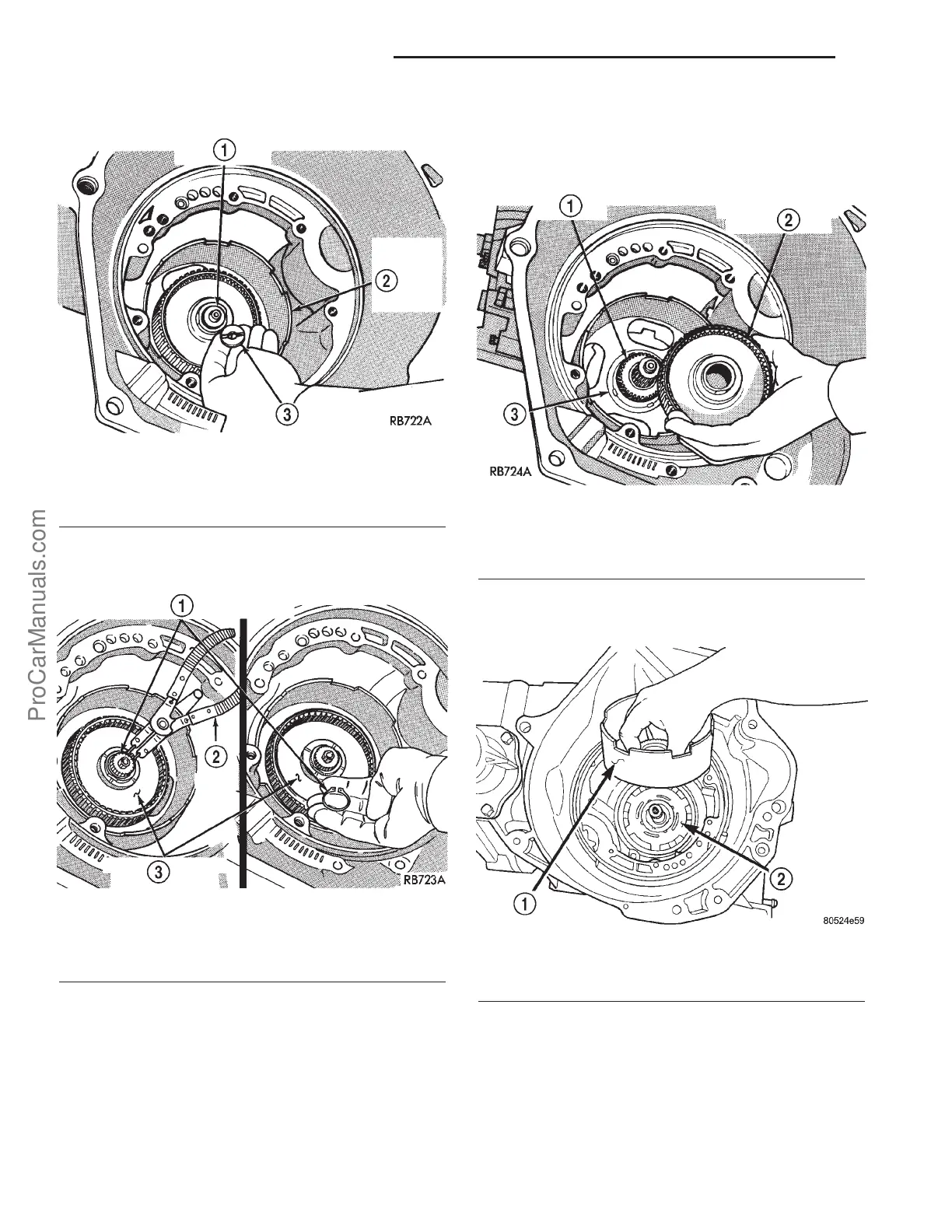

Fig. 33 No. 3 Thrust Washer
1 - OUTPUT SHAFT
2 - SUN GEAR DRIVING SHELL
3 - #3 THRUST WASHER (SELECT FIT)
Fig. 34 Front Planetary Gear Snap Ring
1 - FRONT PLANETARY GEAR SNAP RING
2 - SNAP RING PLIERS
3 - FRONT PLANETARY GEAR ASSEMBLY
Fig. 35 Front Planetary Gear Assembly
1 - SUN GEAR
2 - FRONT PLANETARY GEAR ASSEMBLY
3 - #6 THRUST WASHER
Fig. 36 Sun Gear Driving Shell
1 - SUN GEAR DRIVING SHELL
2 - REAR PLANETARY GEAR
21s - 32 31TH AUTOMATIC TRANSAXLE PL
31TH AUTOMATIC TRANSAXLE (Continued)
