(8) Install UD piston return spring and Tool 5067
as shown in (Fig. 230).
(9) Using Tool 5059A and an arbor press, Install
the UD spring retainer and snap ring. (Fig. 231) (Fig.
232)Compress just enough to install snap ring.
CAUTION: Compress return spring just enough to
install snap ring.
(10) Install the UD clutch pack. Leave out upper
disc, until snap ring is installed (Fig. 233).

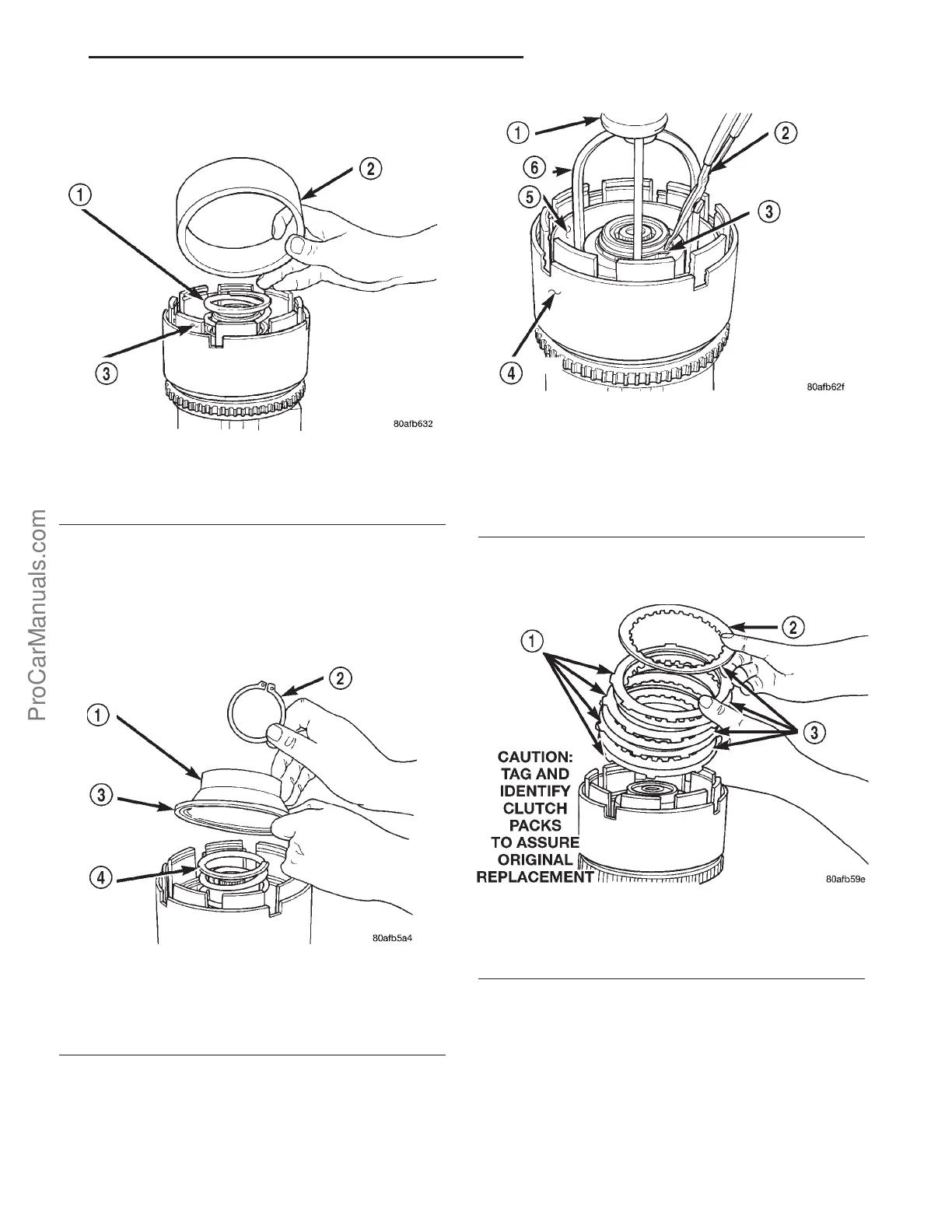

Fig. 230 Seal Compressor Special Tool 5067
1 - PISTON RETURN SPRING
2 - SPECIAL TOOL 5067
3 - INPUT SHAFT CLUTCHES RETAINER ASSEMBLY
Fig. 231 UD Return Spring and Retainer
1 - UNDERDRIVE SPRING RETAINER
2 - SNAP RING
3 - SEAL
4 - PISTON RETURN SPRING
Fig. 232 Install UD Spring Retainer and Snap Ring
1 - ARBOR PRESS RAM
2 - SNAP RING PLIERS
3 - SNAP RING
4 - OD/REVERSE PISTON
5 - TOOL 5067
6 - TOOL 5059A
Fig. 233 Underdrive Clutch Pack
1 - CLUTCH PLATE
2 - ONE UD CLUTCH DISC
3 - CLUTCH DISC
PL 41TE AUTOMATIC TRANSAXLE 21s - 163
