(6) Install thermal valve into transfer plate (Fig.
339).
(7) Install separator plate to valve body (Fig. 340).
(8) Install the overdrive clutch (#5) check valve to
separator plate (Fig. 341)
(9) Install oil screen to separator plate (Fig. 342).
(10) Install transfer plate to valve body and sepa-
rator plate. Make sure oil screen and #5 check valve
do not bind (Fig. 343).

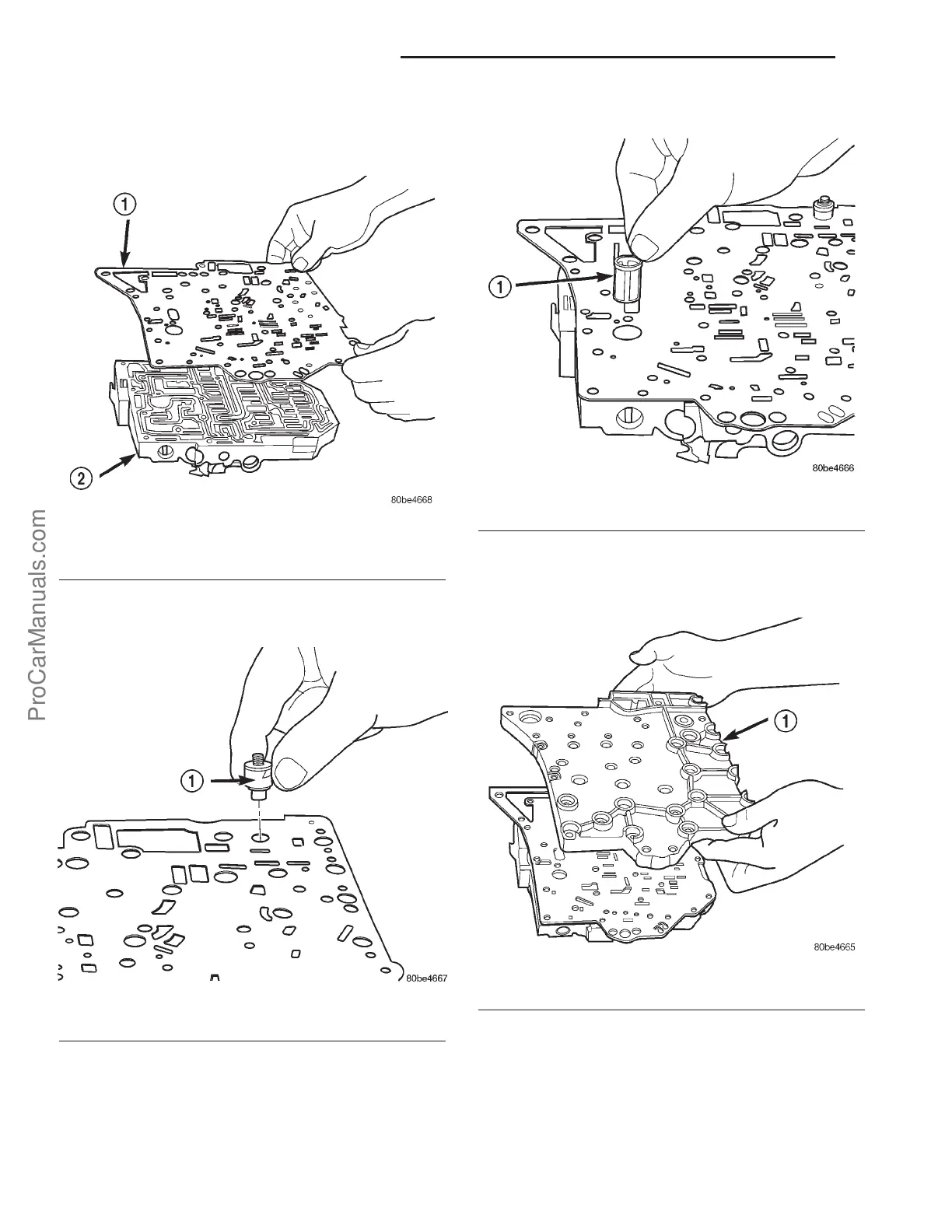

Fig. 340 Install Separator Plate
1 - SEPARATOR PLATE
2 - VALVE BODY
Fig. 341 Install Overdrive Clutch (#5) Check Valve
1 - OVERDRIVE CLUTCH (#5) CHECK VALVE
Fig. 342 Install Oil Screen
1 - OIL SCREEN
Fig. 343 Install Transfer Plate
1 - TRANSFER PLATE
21s - 202 41TE AUTOMATIC TRANSAXLE PL
VALVE BODY (Continued)
