EDAN F15 Series User Manual

F15 Series Fetal & Maternal Monitor User Manual After Monitoring
- 97 -
1) With normal QRS wave.
2) Tall and narrow with no notches.
3) With tall R-wave completely above the baseline.
4) With T-wave less than one-third of the R-wave height.
5) With P-wave much smaller than the T-wave.

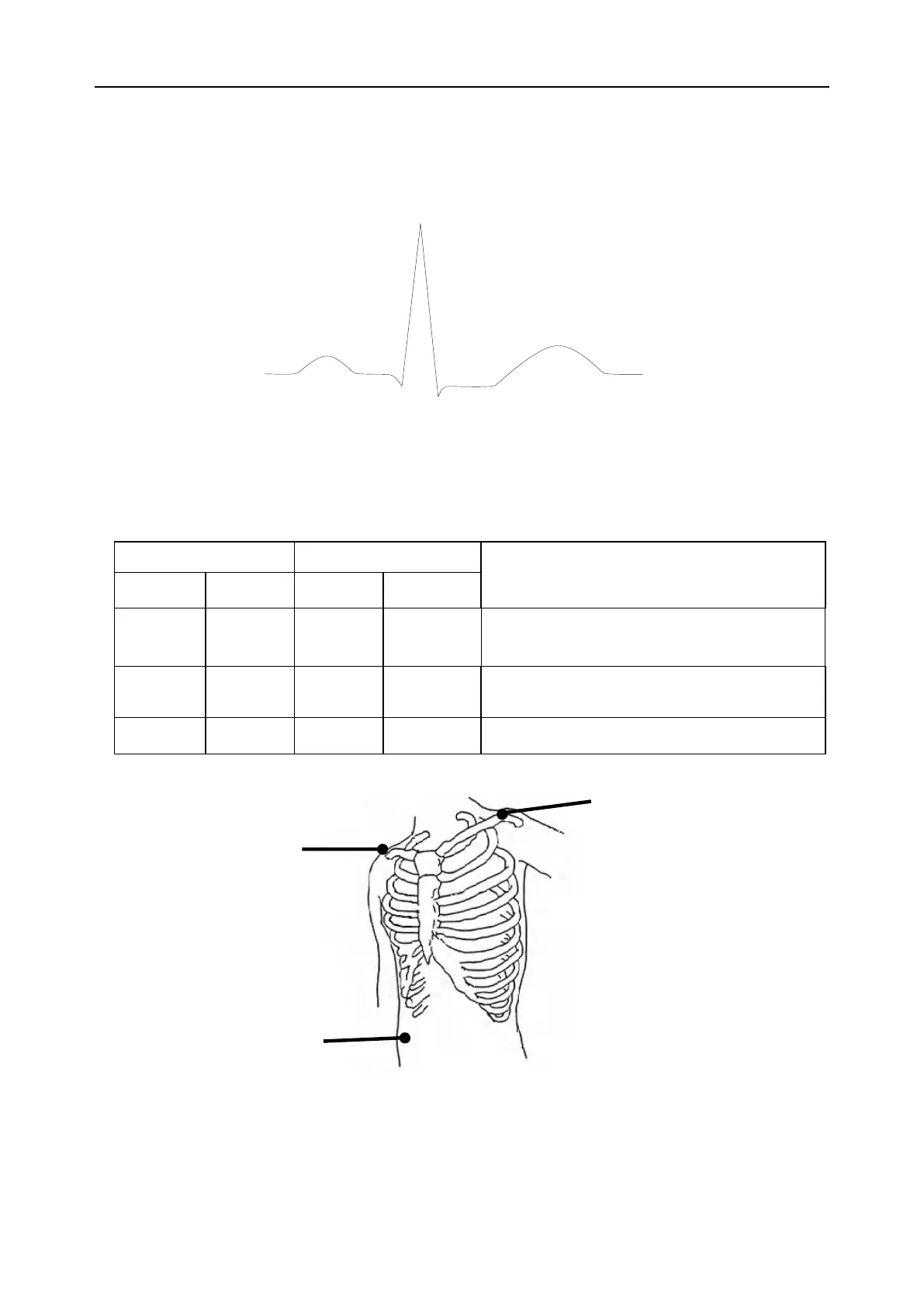

Figure 8-1 Standard ECG Waveform
8.1.2 How to Place 3-lead ECG Cables
The table below lists the names and position of 3-lead ECG cable in America and Europe.
AHA
IEC
Position
Name
Color
Name
Color
RA
White
R
Red
Near the right shoulder, right below the
clavicle
LA
Black
L
Yellow
Near the left shoulder, right below the
clavicle
RL
Green
N
Black
On the right hypogastrium
Figure 8-2 Placing 3-lead ECG Cable (obtain wave of I lead)
To obtain a satisfactory maternal ECG waveform, you must use the RA to LL (lead II) position of the
standard 5-lead ECG.
R
P
Q
T
S
R (RA)
Red (White)
N (RL)
Black (Green)
L (LA)
Yellow (Black)
Traditional 510(k) of Fetal & Maternal Monitor
014_14.1_F15_Series_User_Manual
113／202
