EDAN F15 Series User Manual

F15 Series Fetal & Maternal Monitor User Manual Basic Operation
- 15 -
F15Air:

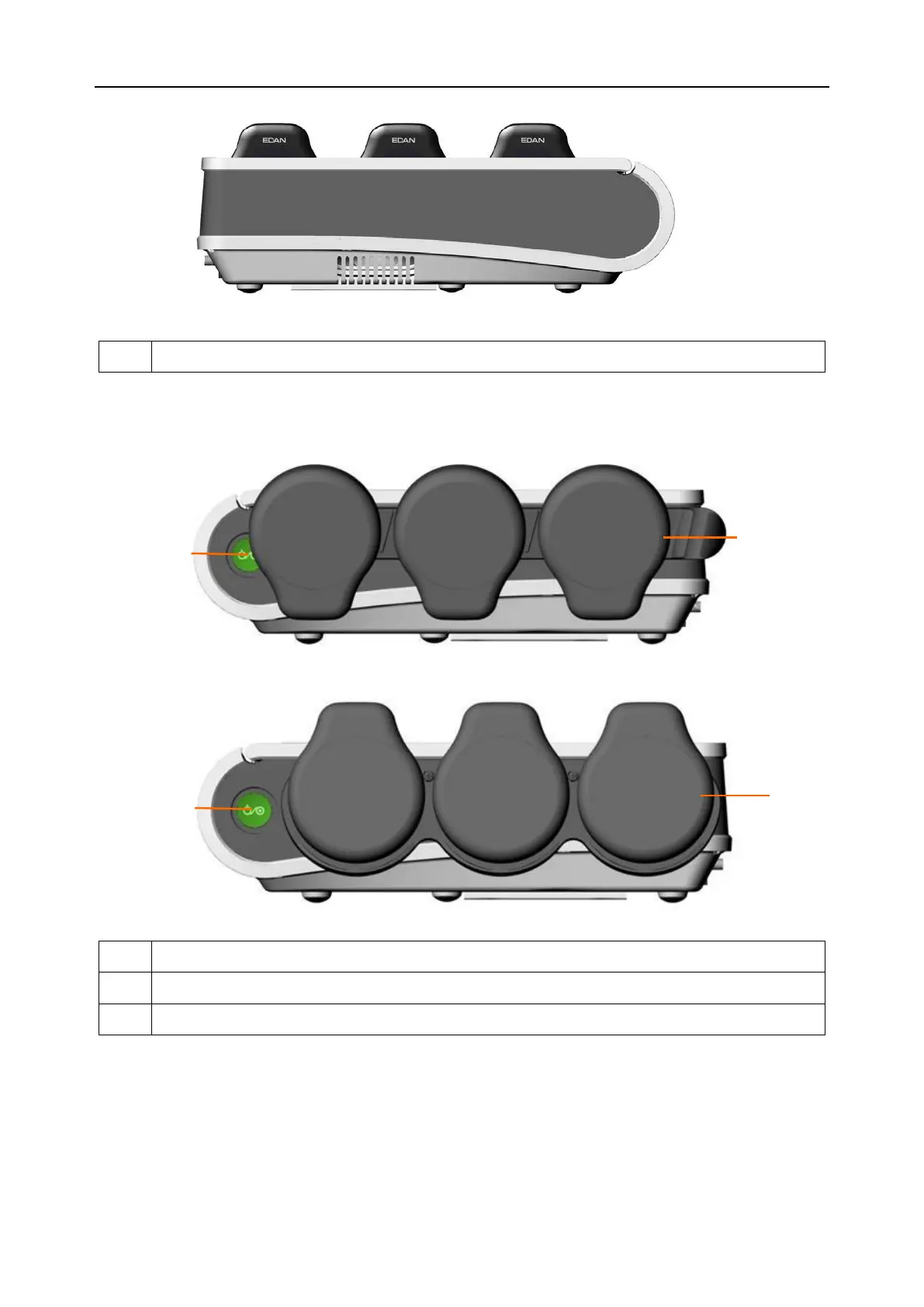

Figure 3-2 Left Panel
1
Sockets for Transducers and Cables: enables the parameter measurement.
3.1.2 Right Panel
F15:
F15Air:
Figure 3-3 Right Panel
1
Power Switch
2
Transducer Holder
3
Transducer Docking Slots-- used to dock and charge wireless transducers.
NOTE:
1. Please dock the wireless transducers per figure 3-3(F15 Air) or charging can’t be completed.
2. The wired transducer hanger and wireless transducer charging dock can be hanged on wall or can
be fixed on the trolley.
1
1
2
2
3
