F15 Series Fetal & Maternal Monitor User Manual Monitoring Mother and Ferus Using FECG
- 115 -
CAUTION
Please be gentle during skin preparation to avoid skin injury.
9.2.4 Electrode Placement
FECG adopts 6-lead cables. The table below lists the names and position of the ECG leads.
Name
Color
Position
C1
White
8-12 cm right of the umbilicus
C4
Brown
3cm over the umbilicus
F
Green
8cm below the left nipple
L
Yellow
20 to 45 degree to the umbilicus and 10-15cm away
N
Black
4-6 cm above the symphysis pubis
R
Red
20 to 45 degree to the umbilicus and 10-15cm away

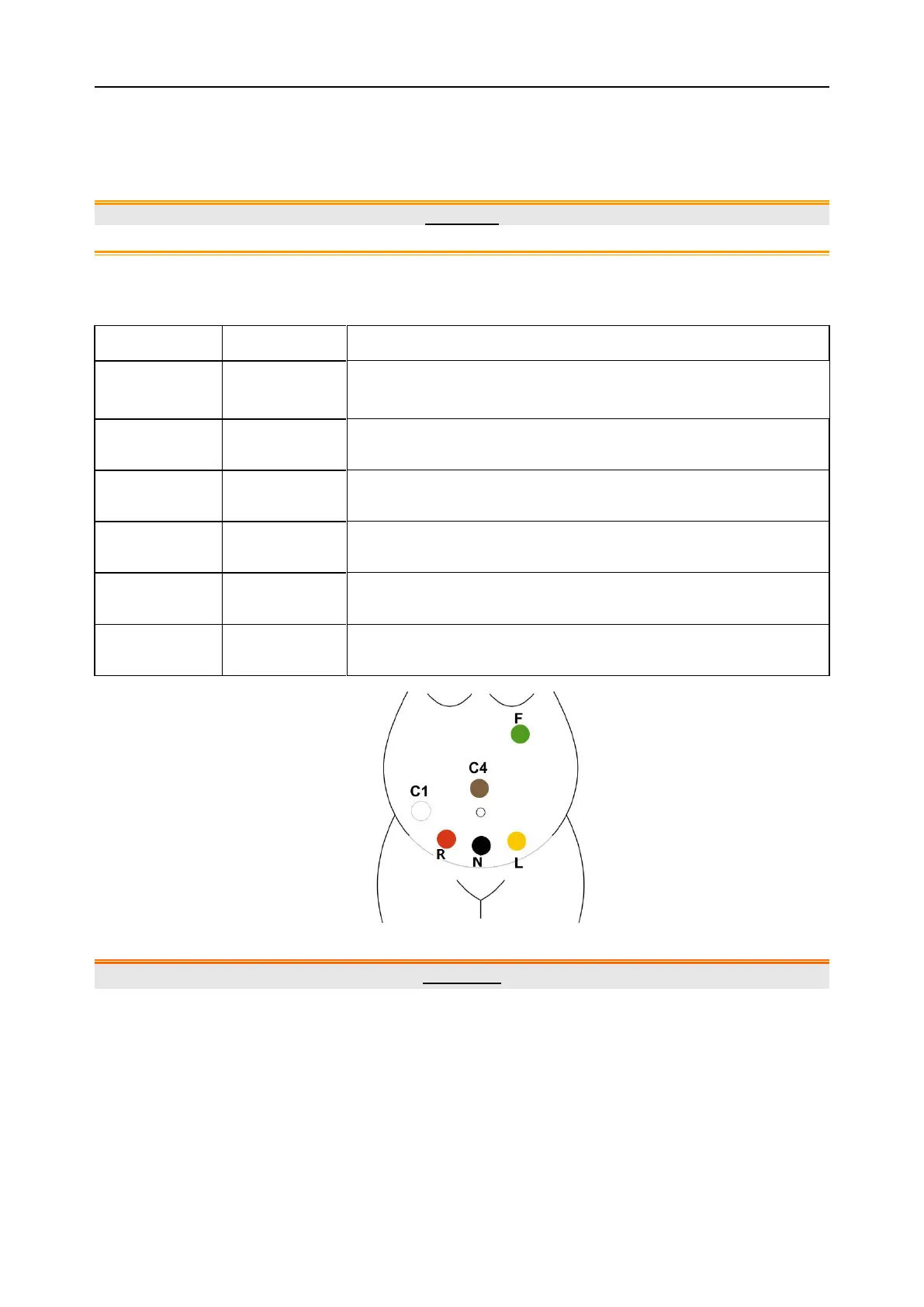

Figure 9-1 Electrode Positions
WARNING
1 Make sure that all electrodes are connected to the patient correctly before operation.
2 Make sure that the conductive parts of electrodes and associated connectors, including
neutral electrode, do not contact with earth or any other conducting objects.
3 Do not use any electrodes which are expired or already dry.
4 The electrodes should be finished before the specified time after opening the package.
5 Make sure the electrodes are firmly attached to the skin after placing the electrodes.
6 Examine the electrodes before each usage. If any problems, change the electrodes when
needed.
7 For disposal of abandoned electrodes, please follow hospital requirements or local laws
×3
Traditional 510(k) of Fetal & Maternal Monitor
014_14.1_F15_Series_User_Manual
131／202
