F15 Series Fetal & Maternal Monitor User Manual Pre-Monitoring Preparation
- 74 -

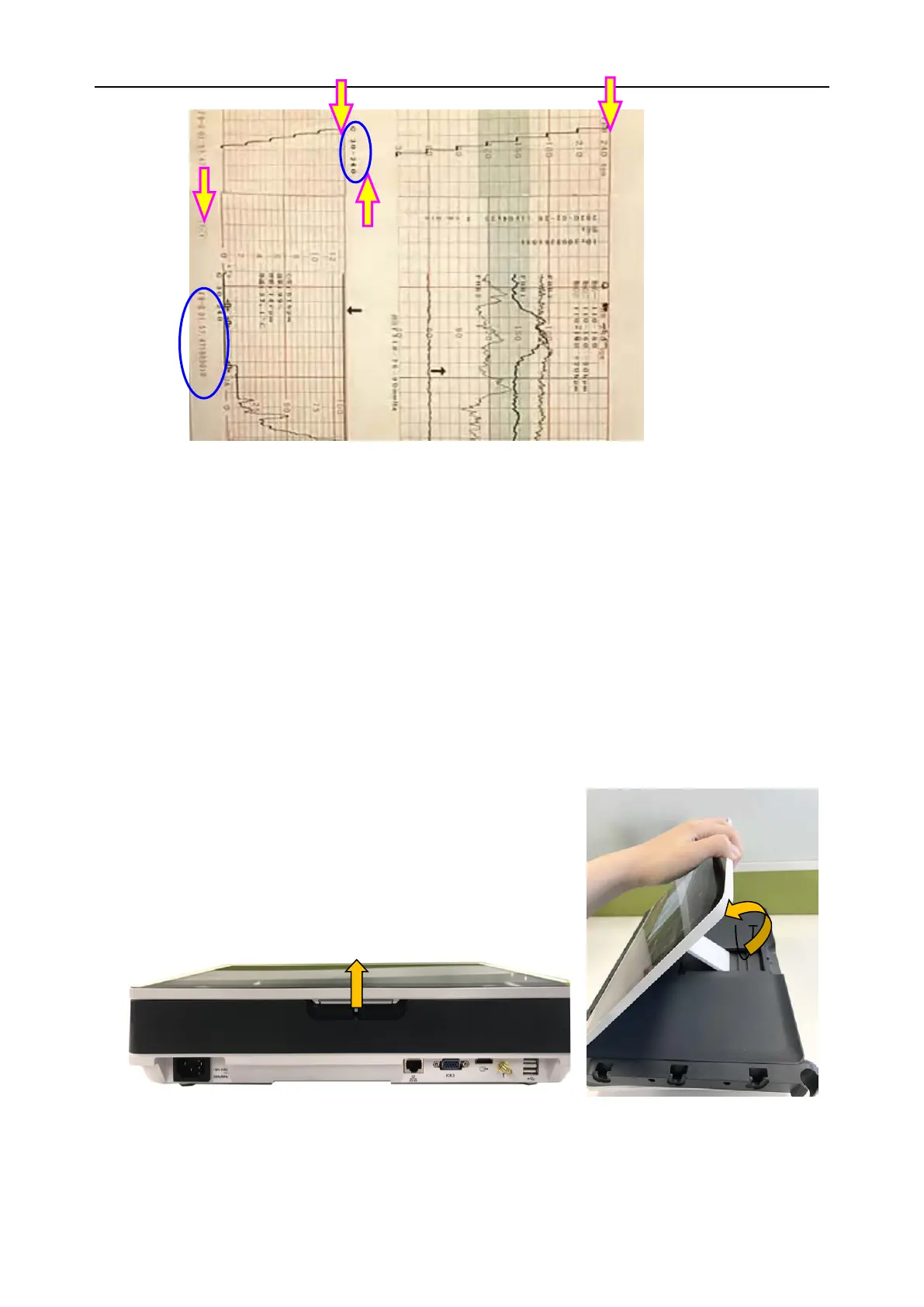

If the monitor does not print the baseline, switch on the Print Self-Check function and then restart the
monitor.
NOTE:
Make sure the paper is correctly loaded before the printing starts.
6.3 Adjusting the Screen Angle
The angle between the screen and the top cover of the monitor is adjustable as needed, allowing it to
be mounted on a wall or placed on a flat surface.
Adjustment method:
Push the hook on top of the screen left to spring it open. Pull the screen forward to let the screen stop
at one of the three preset positions.
To bring the screen back to flat, pull it all the way forward and then push it back.
Traditional 510(k) of Fetal & Maternal Monitor
014_14.1_F15_Series_User_Manual
90／202
