EDAN F15 Series User Manual

F15 Series Fetal & Maternal Monitor User Manual Basic Operation
- 27 -

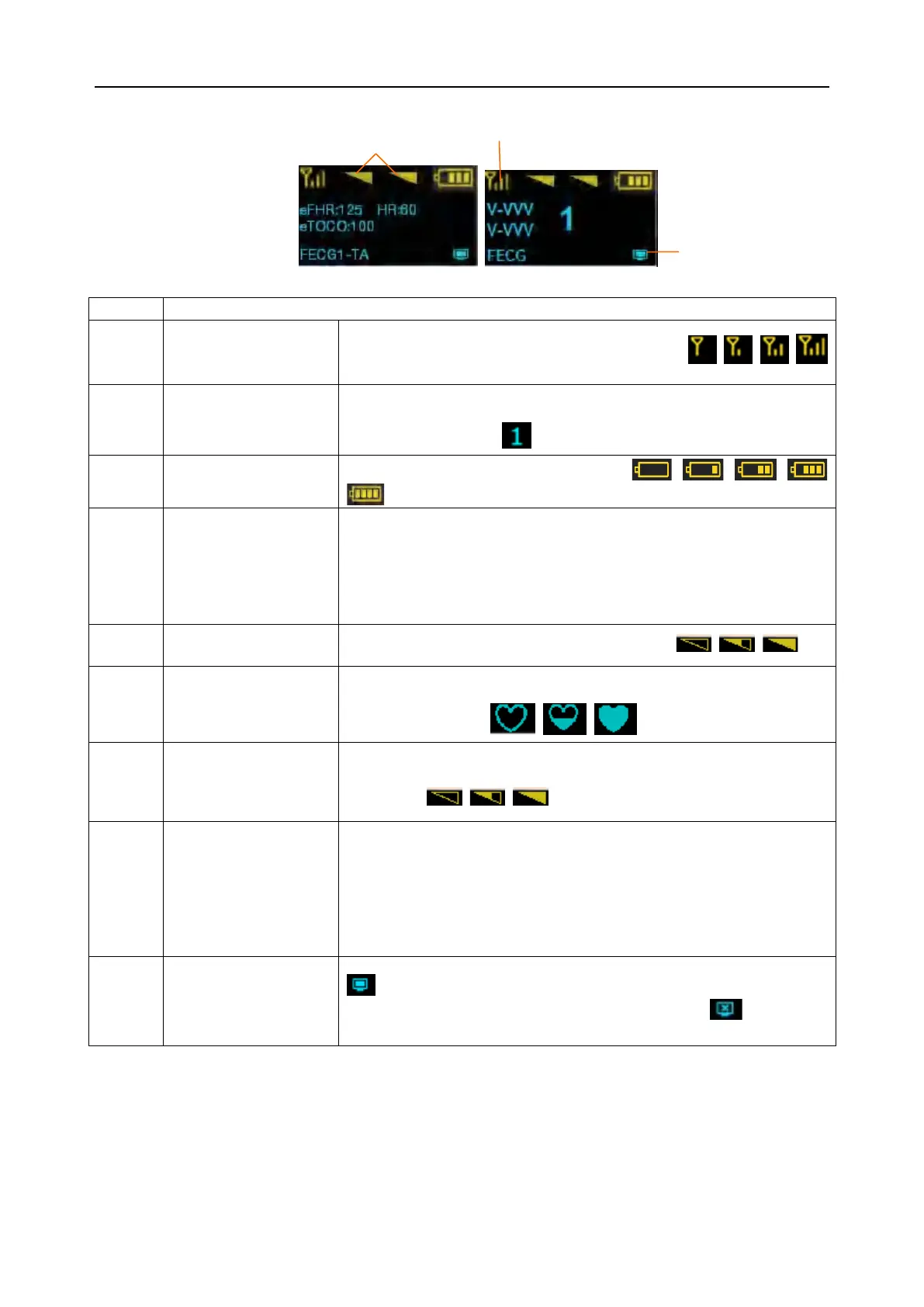

No.
Description
1
Wireless Signal
Strength Indicator
The wireless signal strength has four degrees:
2 Device Number
When the transducer connects to the monitor successfully, a
number will appear in the center of the screen, which represents
the device no. , e.g.:
3 Battery Indicator
The battery level has five degrees:
4 Transducer Type
For US transducer, US1, US2 and US3 will appear at the bottom
left corner of the screen according to the sequence of transducer
being taken out. For TOCO transducer, TOCO will appear at the
bottom left corner of the screen when ECG cable
or electrode
sleeve is not connected, and when ECG cable or electrode sleeve
is connected, TOCO/MECG will appear.
5
US Fetal Heart Signal
Quality Indicator
US fetal heart signal quality has three levels:
6
ECG signal strength
of TOCO Transducer
When ECG cable is connected to TOCO transducer, the ECG
signal strength icon will appear at the bottom of the screen and it
has three degrees:
7
ECG signal strength
of FECG
Fetal&Maternal
Module
FECG signal quality icon(left) and MECG signal quality icon(right)
appear in the middle on the top of the screen and there are three
degrees:
8
Status of ECG leads
of FECG
Fetal&Maternal
Module
The status of ECG leads is represented by two rows of four letters.
The first letter in the first row represents the status of top ECG
leads, and the foll
owing three letters represent the status of right
leg driven, C4 lead and F lead. The first letter in the second row
represents the status of bottom ECG leads, and the following three
letters represent the status of R, N and L lead. V represents
successful connection and X represents failed connection.
9
Transducer
Connection Status
When the transducer connects to the monitor successfully, an icon
appears at the bottom right corner of the screen; when the
transducer fails to connect to the monitor, an icon
appears at
the bottom right corner of the screen
3.4.3 Close Wireless Transducer
1 Click the measurement numerics fields on the screen and enter its setup menu;
2 Select Close Probe;
3 Select OK and the transducer will be closed.
