3.2.1 Transducers

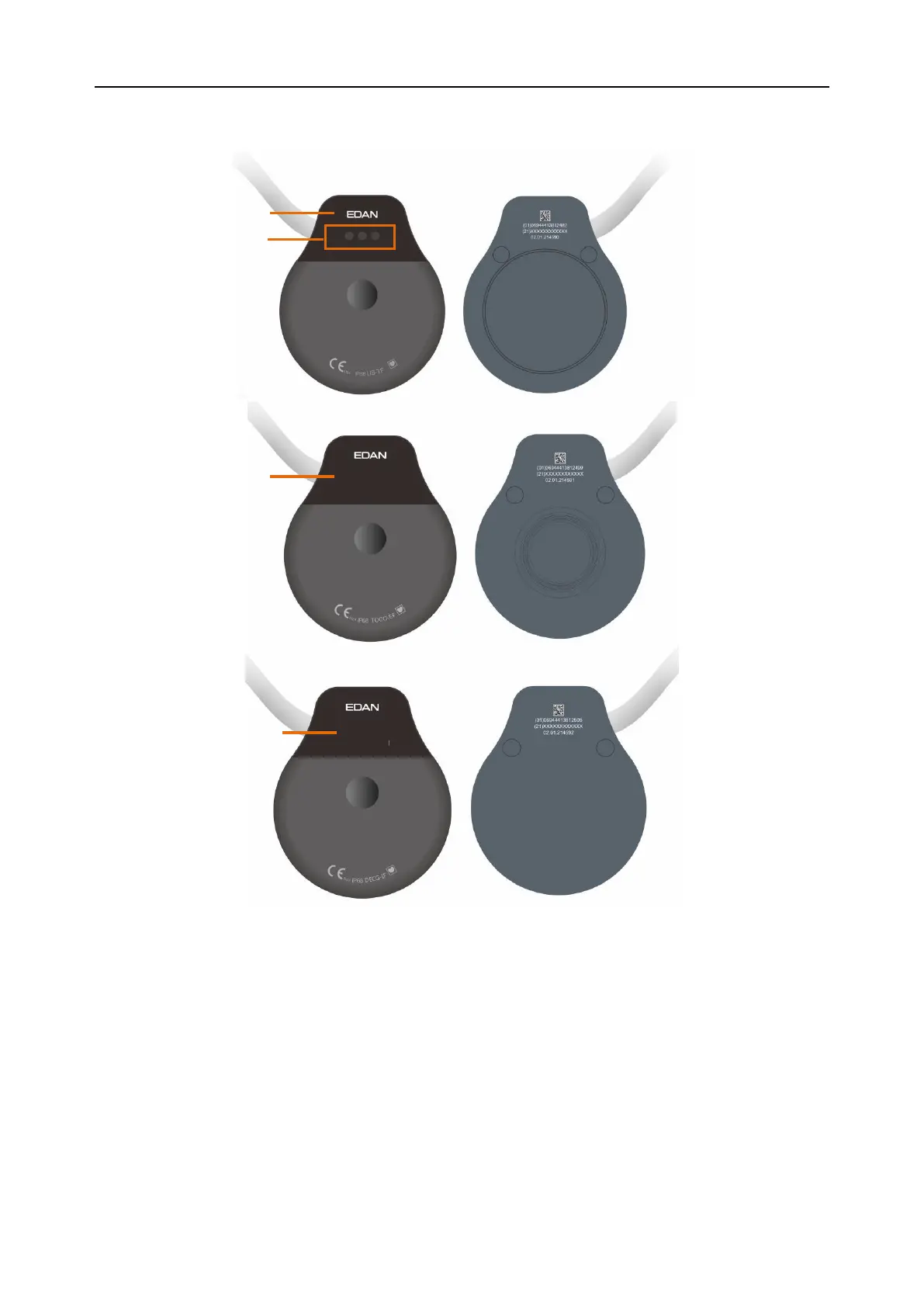

Figure 3-6 Wired Transducers
1. Wired US Transducer
2. Wired US Transducer Indicators
3. Wired TOCO Transducer
4. Wired DECG Fetal&Maternal Module
Note:
The indicators on the wired US transducer are intended to distinguish US transducer 1/2/3.
When plugging in the wired US transducer, the three indicators will light up shortly for
one time so users can perform self-check. After the self-check, the transducer enters
normal working mode. The first indicator lights up, it indicates the US transducer is US1;
the first and second indicators light up, it indicates the US transducer is US2; the three
indicators light up, it indicates the US transducer is US3.
2
1
3
4
Traditional 510(k) of Fetal & Maternal Monitor
014_14.1_F15_Series_User_Manual
34／202
