F15 Series Fetal & Maternal Monitor User Manual Basic Operation
- 33 -
3.5.2 Main Menu
Setup menus are provided to change the monitor configurations and monitoring settings. Press the
main menu key on the main interface to open the main menu.

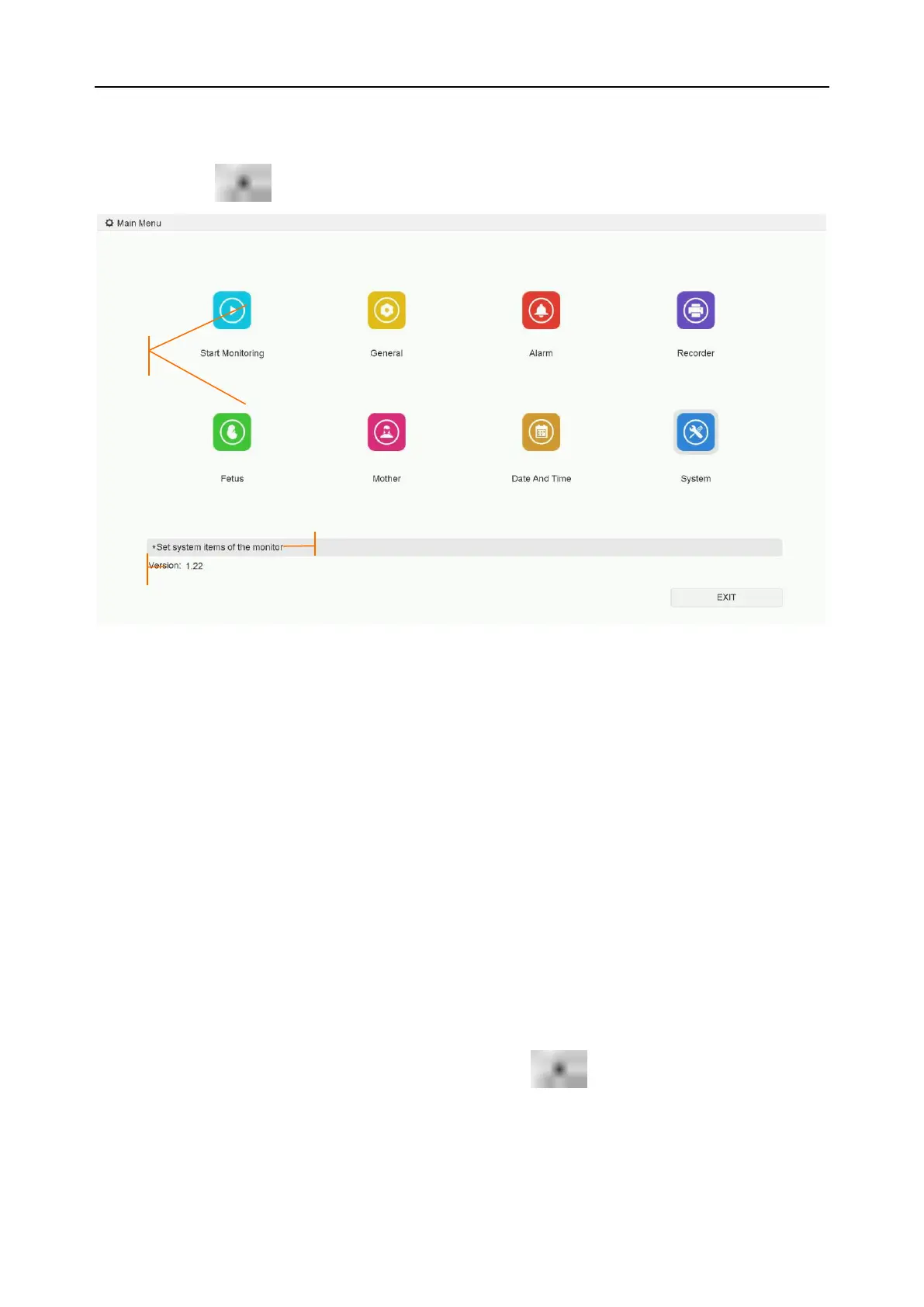

Figure 3-25 Setup Menu
In the setup main menu, you have access to all the items other than System. You can select EXIT to
exit from this menu.
The items in this main menu all have submenu(s). To confirm the setting changes in the submenus,
you need to select OK to exit. If you don’t want to store the new settings, select Cancel. If no
operation is performed in 30 seconds, the menu will return to the upper directory. The change will not
be stored.
Once you select OK to confirm the setting changes, the new settings will be stored in the monitor’s
long-term memory. If the monitor is switched on again after being switched off or a power loss, it will
restore the new settings. The setting does not take effect if the system exits automatically or is shut
down before OK is selected.
For your reference, when the cursor is located at an item in this menu, the monitor provides a brief
function description of this item in a pane with blue frame under the items. For example, the cursor is
located at “System” in the illustration above. Correspondingly, its function description “Set system
items of the monitor” is issued in the below frame pane.
3.5.3 Quick Setup
You can click the waveforms fields and measurement numerics fields on the screen to adjust the
settings of waveforms and measurement numerics. For example, to enter the FHR1 setup menu,
select the FHR1 (fetal heart rate 1) numeric.
You can also adjust the settings though the main menu key . This user manual describes the
entry method through the main menu.
Traditional 510(k) of Fetal & Maternal Monitor
014_14.1_F15_Series_User_Manual
