F15 Series Fetal & Maternal Monitor User Manual After Monitoring
- 98 -

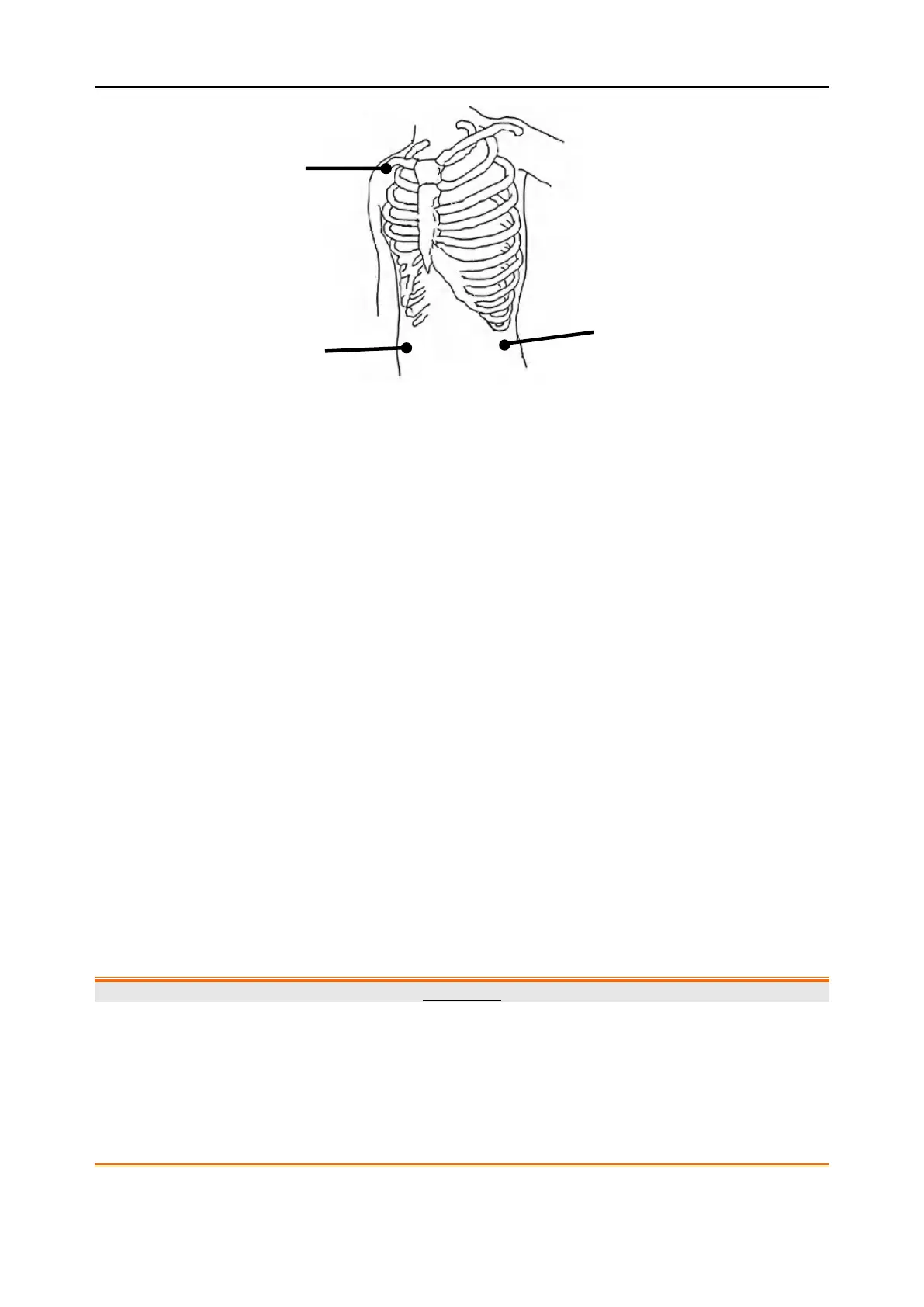

Figure 8-3 Placing 3-lead ECG Cable (obtain wave of II lead)
NOTE:
1 To ensure patient’s safety, all leads must be attached to the patient.
2 Check every half an hour if the skin is irritated from attachment of electrodes, if so,
remove the electrodes immediately.
3 Recycle or dispose the used electrodes properly to protect the environment.
8.1.3 ECG Monitoring
Monitoring with F15:
 Parts Required
a) ECG cable
b) Attachment pad electrodes
c) Wired/ wireless TOCO transducer
Note:
The filter of AC power supply can be configured by selecting System>Factory Configuration>Line
Frequency>50(default) or 60. Please select it according to the current AC frequency.
 Monitoring Procedure
a) Prepare the skin for ECG monitoring. Refer to section 7.3.2 Preparing the Patient's Skin Prior to
Placing Electrodes.
b) Connect the ECG cable to the wired/wireless TOCO transducer.
c) Connect attachment pad electrodes with an ECG cable.
d) Connect the wired/wireless TOCO transducer to the fetal monitoring socket.
e) Peel the protection membrane off the back of attachment pad electrodes and attach electrodes to
the patient. Refer to section 8.1.2 How to Place 3-lead ECG Cables.
WARNING
1 The electrodes for wireless ECG cable should be placed on flat and smooth positions right
in the middle of the first intercostals space. Please check the contact of the electrodes
regularly.
2 When the pregnant woman is lying on the left or right side, please make sure the
electrodes are well-placed.
3 When monitoring with FTS-3, there is no ECG waveform displayed in the ECG display area
on the main interface of the monitor.
NOTE:
R (RA)
Red (White)
N(RL)
Black(Green)
L (LA)
Yellow (Black)
Traditional 510(k) of Fetal & Maternal Monitor
014_14.1_F15_Series_User_Manual
114／202
