EDAN F15 Series User Manual

F15 Series Fetal & Maternal Monitor User Manual WI-FI Networking and Instructions
- 175 -

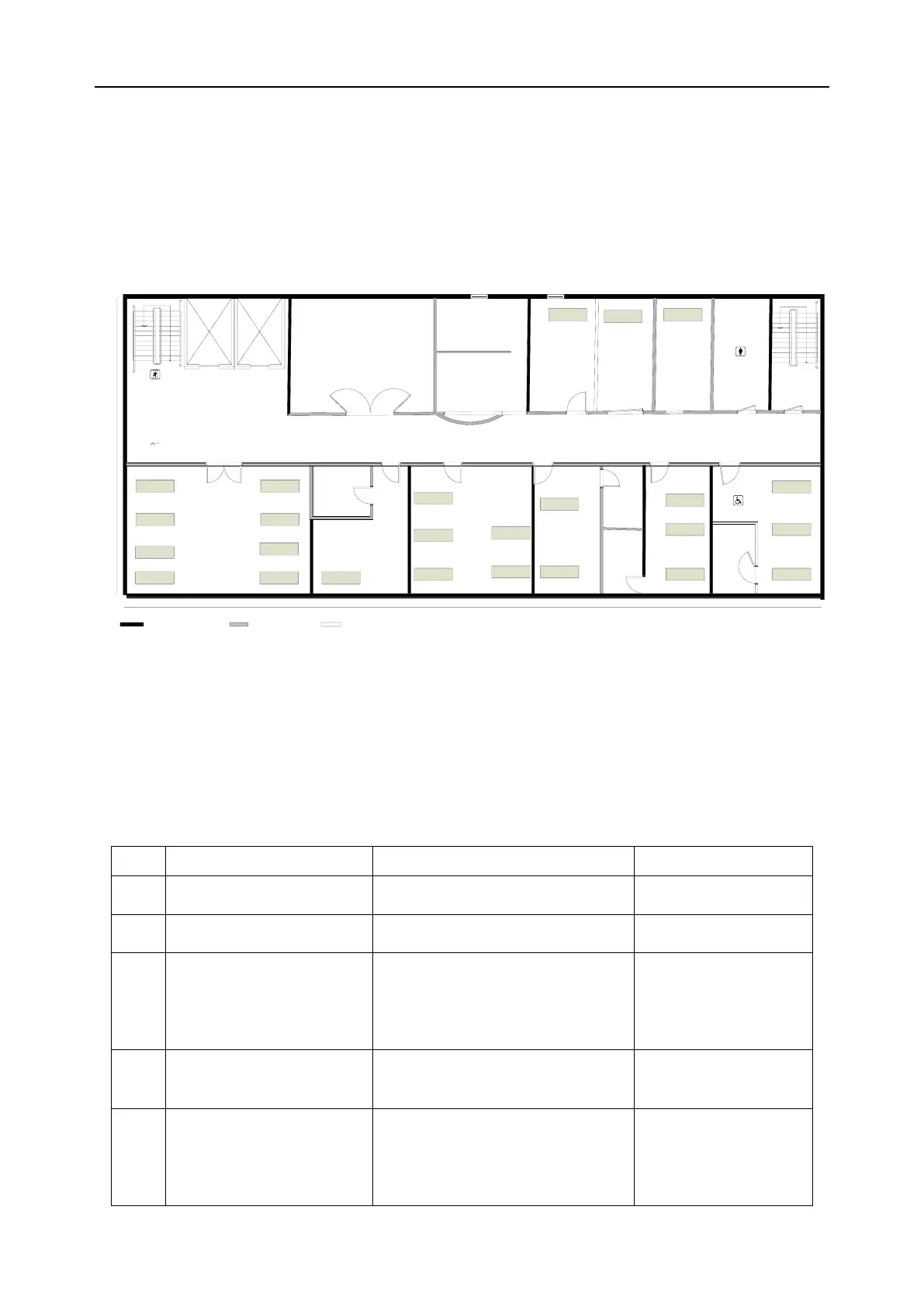

Network Plan
Network of XX Hospital
上
上
Labour
Room
VIP
Labour
Room
Labour
Room2
Labour
Room
Toilet
Labour Room
Toilet
Labour Room
Rest
Room
Delivery
Room
Nurse Station
Office
Note 1:
1. The wireless signal shall cover all marked labour rooms and delivery rooms.
2. The wall of inpatient ward is thick brick wall, the roof of corridor and rooms is the movable ceiling,
with material gypsum, height 3 m from the ceiling to the ground.
3. The wall of delivery room is thick brick wall, with the door made of metal.
4. The toilet position is as shown in the figure.
25 m
60 m
出口
Dispensary
1000
Toilet
Toilet
Bearing wall
Brick wall
Cavity wall
Delivery
Room
Delivery
Room
Fetal
Monitor
Fetal
Monitor
Fetal
Monitor
Fetal Monitor
Fetal Monitor
Fetal Monitor
Central Station
Fetal Monitor
Fetal Monitor
Fetal Monitor
Fetal Monitor
Fetal Monitor
Fetal Monitor
Fetal Monitor
Fetal Monitor
Fetal Monitor
Fetal Monitor
Fetal Monitor
Fetal Monitor
A9.5 Network Design and Implementation
A9.5.1 Networking Scheme
F15 mainly involves networking between the bedside monitor and the central station; F15 Air not only
involves networking between the bedside monitor and the central station, but also networking between
the wireless transducer and monitor.
Wireless transducers and monitors have the following requirements for wireless coverage:
NO.
Item
Monitor Requirements
Description
1
Equipment compatibility
It is recommended to use the
model recommended by EDAN
Recommended to
meet
2
802.11 protocol
802.11 a/b/g/n requirements are
met
Required to meet.
3
Spatial signal strength
≥-65dBm
The signal coverage requirement
of the AP connected to the
monitor is the RSSI value felt by
the monitor.
Required to meet.
4
Co-channel interference
≤ -20dB
Measurement within the monitor's
working channel
Required to meet.
5
Adjacent frequency
interference
≤15dB
Measurement around the
monitor's working channel
Recommended to meet, can
improve the SNR of Wi-Fi
Required to meet.
Traditional 510(k) of Fetal & Maternal Monitor
014_14.1_F15_Series_User_Manual
191／202
