F15 Series Fetal & Maternal Monitor User Manual Basic Operation
- 36 -
1 Select the main menu key on the main interface.
2 Select Date And Time > Time Scale.
3 Select Real Time (default) or Relative Time.
4 Select OK.
NOTE:
The real time contains only the hour and minute, but no second. As a result, the time scale may
correspond to the 0 ~ 59
th
second of the system time. Do not mistake the time scale for the
exact time.
3.6.2 Monitoring Numerics
3.6.2.1 Fetal Monitoring
WARNING
1 Due to the LCD size, resolution and system settings, the traces displayed on the screen
may look different from the recorder printout. The printout should prevail when making
diagnoses.
2 If the data is doubtful, clinicians should make diagnoses based on the real condition.

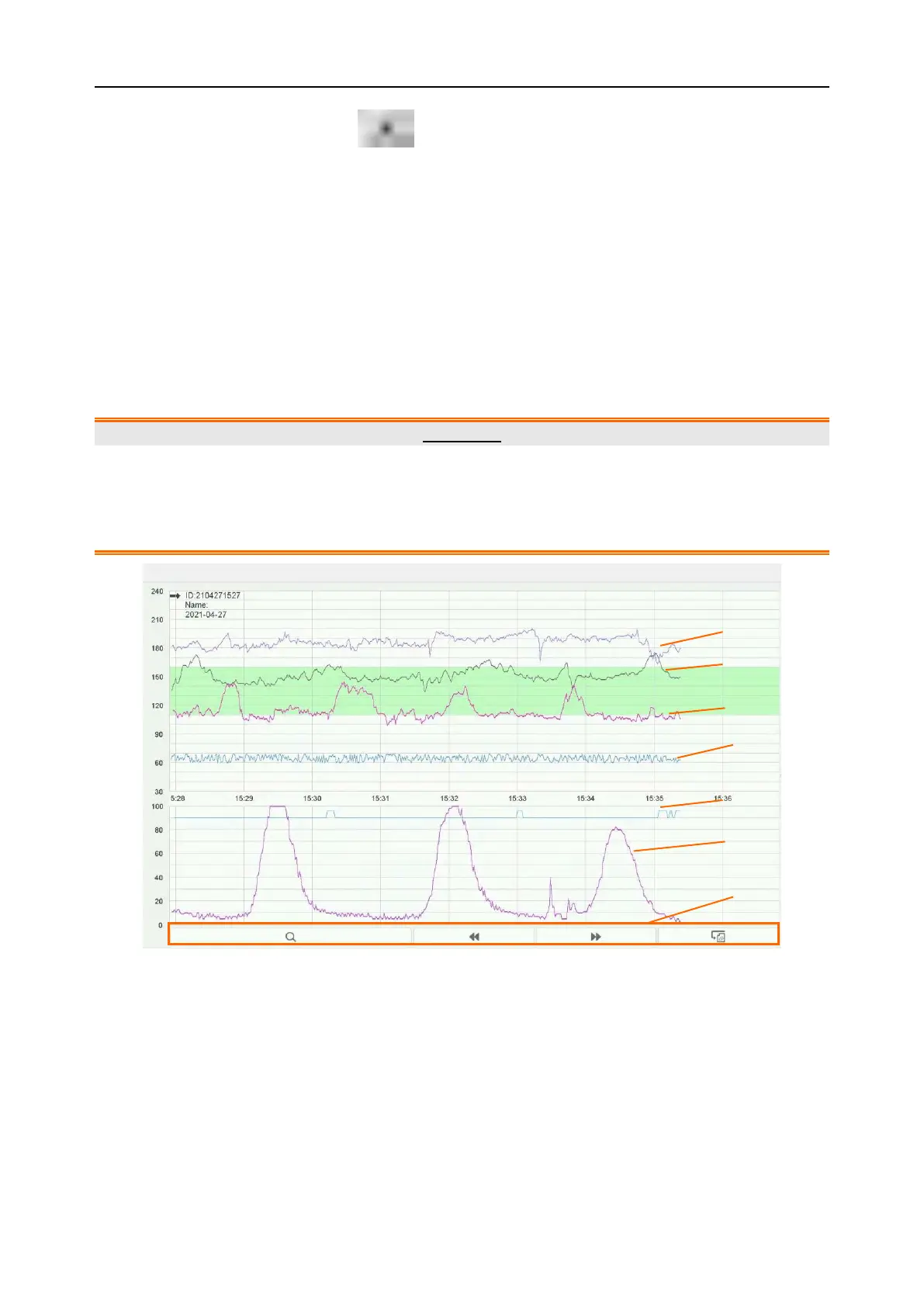

Figure 3-29 Fetal Monitoring Traces
During monitoring or reviewing, the trace window displays six traces: FHR1 trace, FHR2 trace (dual
configuration), FHR3 trace (triple configuration), HR trace, AFM trace and TOCO trace.
FHR1/FHR2/FHR3 trace
The y-axis of the trace indicates the numerics of FHR. The range is 30 bpm ~ 240 bpm (American
standard) or 50 bpm ~ 210 bpm (International standard).
AFM trace
The x-axis of each wave indicates the duration of a detected fetal movement.
1 FHR1Trace
2 FHR2 Trace
3 FHR3 Trace
4 HR Trace
5 AFM Trace
6 TOCO Trace
7 Trace Control
Tools
1
2
3
4
5
6
7
Traditional 510(k) of Fetal & Maternal Monitor
014_14.1_F15_Series_User_Manual
52／202
