EDAN F15 Series User Manual

F15 Series Fetal & Maternal Monitor User Manual Basic Operation
- 37 -
AFM black mark

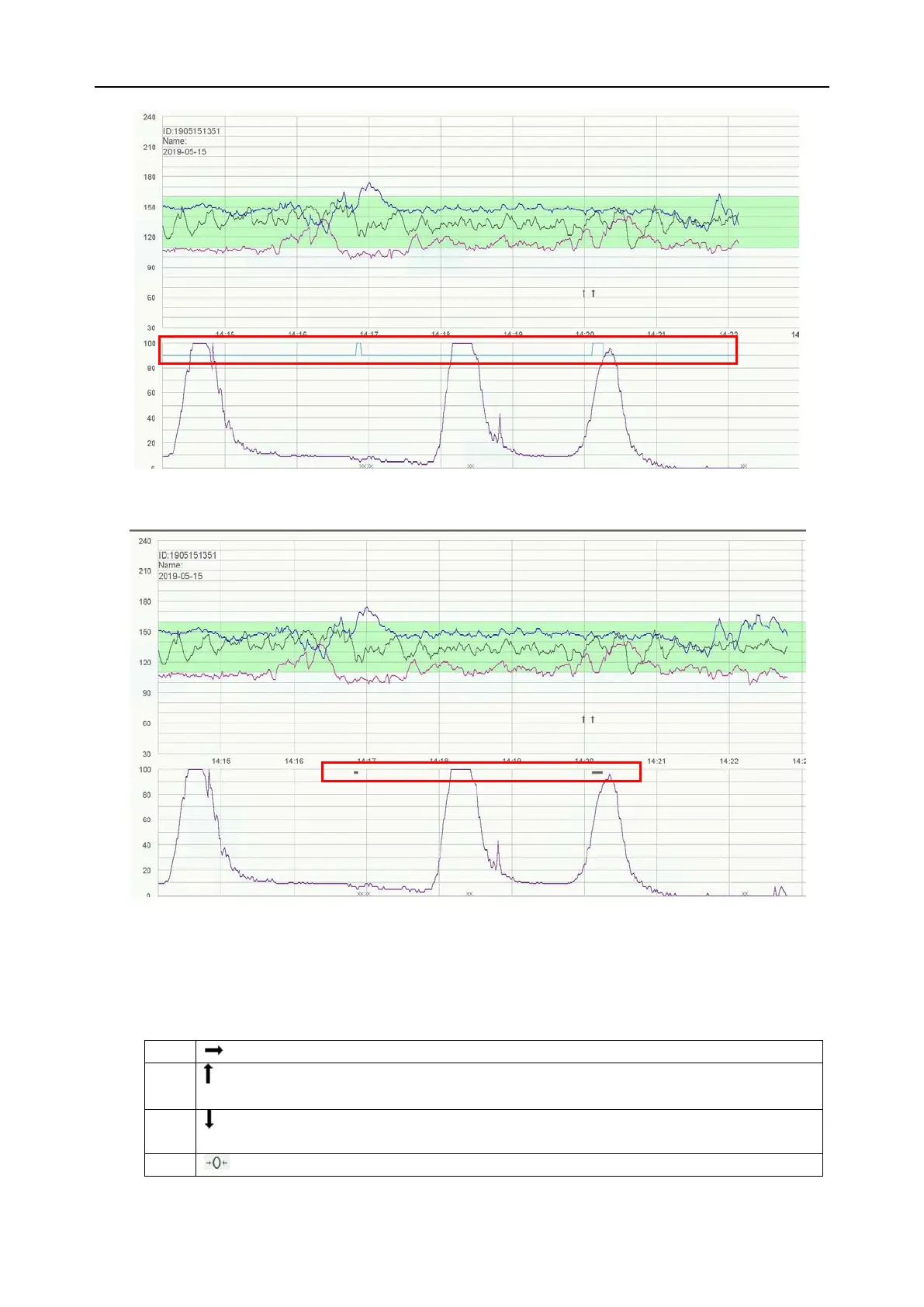

The x-axis of each wave indicates the duration of a detected fetal movement.
NOTE:
AFM trace is only for reference. Please take the MFM marks as criterion.
TOCO trace
The y-axis indicates the numeric of TOCO. The range is 0 ~ 100.
Besides, some other symbols appear among the traces:
1
:This symbol indicates the new monitoring starts.
2
: This symbol indicates a manual fetal movement, and it appears after the patient
presses the FM marker when she feels a fetal movement.
3
:This symbol indicates the MARK key is pressed to record an event, such as the
patient turning around, taking injection.
4
:This symbol indicates the monitor is zeroed by pressing AUTO ZERO key.
The fetal monitoring values in the numeric window include FHR1/DFHR value, FHR2 value,
Traditional 510(k) of Fetal & Maternal Monitor
014_14.1_F15_Series_User_Manual
53／202
