F15 Series Fetal & Maternal Monitor User Manual Basic Operation
- 40 -
3.6.2.2 Maternal Monitoring(F15)

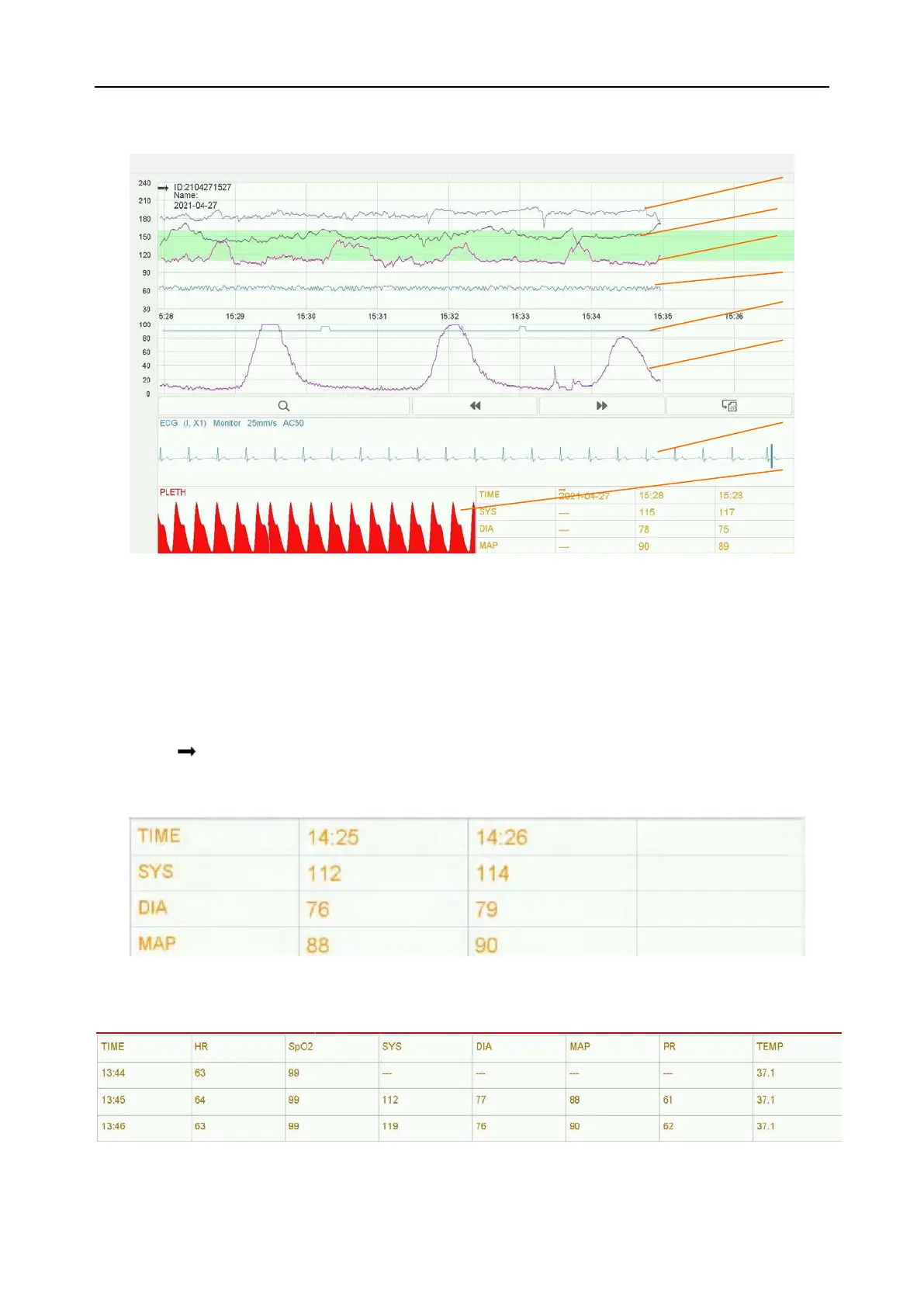

Figure 3-31 Maternal Monitoring Traces
1
FHR1 Trace
2
FHR2 Trace
3
FHR3 Trace
4
HR Trace
5
AFM Trace
6
TOCO Trace
7
ECG Trace
8
SpO
2
Waveform
Under maternal-fetal monitoring mode, the trace window displays at most nine traces. Compared
with fetal monitoring mode, four maternal traces/waveform are added: MHR trace, ECG waveform and
SpO
2
waveform.
The maternal vital sign list keeps records of the recent maternal vital signs and the measuring time. A
start mark and the date appear when a new monitoring begins.
In maternal-fetal display mode, the list contains the time, SYS, DIA and MAP numerics of every
measurement.
Figure 3-32 Maternal NIBP List
In maternal display mode, the list contains the time, HR, SpO
2
, SYS, DIA, MAP, PR and TEMP
numerics. The numerics are recorded every minute.
Figure 3-33 Maternal Vital Sign List
1
2
3
4
5
6
7
8
Traditional 510(k) of Fetal & Maternal Monitor
014_14.1_F15_Series_User_Manual
56202
