EDAN F15 Series User Manual

F15 Series Fetal & Maternal Monitor User Manual Basic Operation
- 25 -
3.3.1 Charging FT20 Telemetry Transmitter
There are two methods to charge the FT20 Telemetry Transmitter:
1. Put the FT20 Telemetry Transmitter in the docking slot, for details please refer to 3.4.1 Charging
Wireless Transducer.
2. Charge the FT20 Telemetry Transmitter with the power cable.

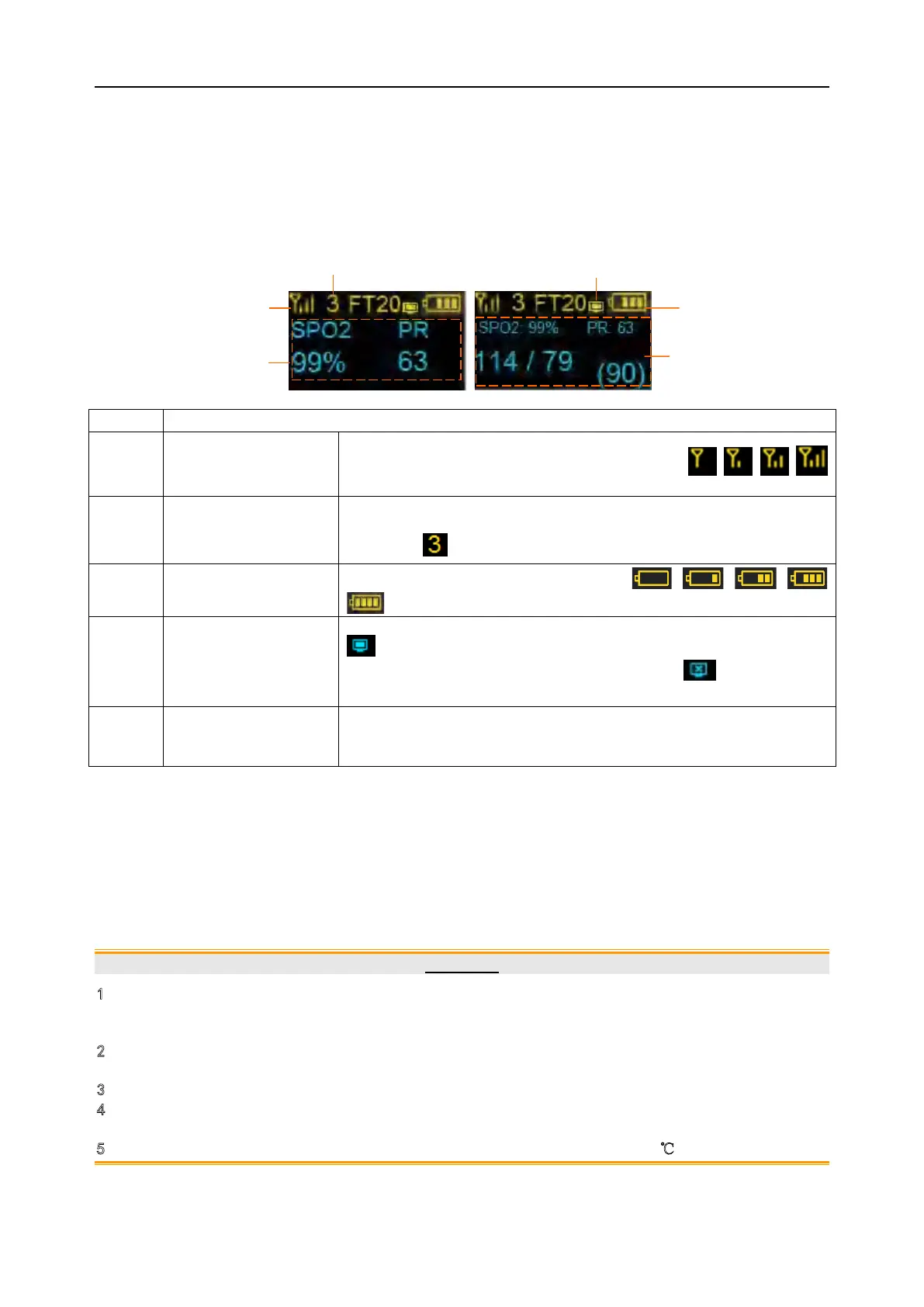

3.3.2 Displaying of FT20 Telemetry Transmitter
No.
Description
1
Wireless Signal
Strength Indicator
The wireless signal strength has four degrees:
2 Device Number
When the module connects to the monitor successfully, a number
will appear in the center of the screen, which represents the device
no. , e.g.:
3 Battery Indicator
The battery level has five degrees:
4
Module Connection
Status
When the module connects to the monitor successfully, an icon
appears at the top
right corner of the screen; when the
module fails to connect to the monitor, an icon appears at the
top right corner of the screen
5
Measurement
Numeric
When only SpO2 is measured, the measurement numeric is shown
as the picture on t
he left, when NIBP is measured, the
measurement numeric is shown as the picture on the right
3.3.3 Power Key
Press and hold the power key for at least 2 seconds to switch on/off the monitor; double click the
power key to enable/disable NIBP measurement.
3.4 Wireless Transducer
3.4.1 Charging Wireless Transducer
CAUTION
1 When the monitor indicates the power of wireless transducer is low, please change the
wireless transducer in time, or the wireless transducer will be switched off automatically
and monitoring will be interrupted.
2 After docking the transducer into the docking slot for charging, please check if the
transducer is well placed and whether it is charging.
3
Please wait for 2 minutes to use the transducers after charging.
4
The transducer can be used only if the wireless transducer signal is shown as in position
on the monitor.
5
The temperature of transducer will be increased by no more than 20 ℃ when in charge.
1
3
5
5
2
4
Traditional 510(k) of Fetal & Maternal Monitor
014_14.1_F15_Series_User_Manual
41／202
