F15 Series Fetal & Maternal Monitor User Manual Installation

- 13 -

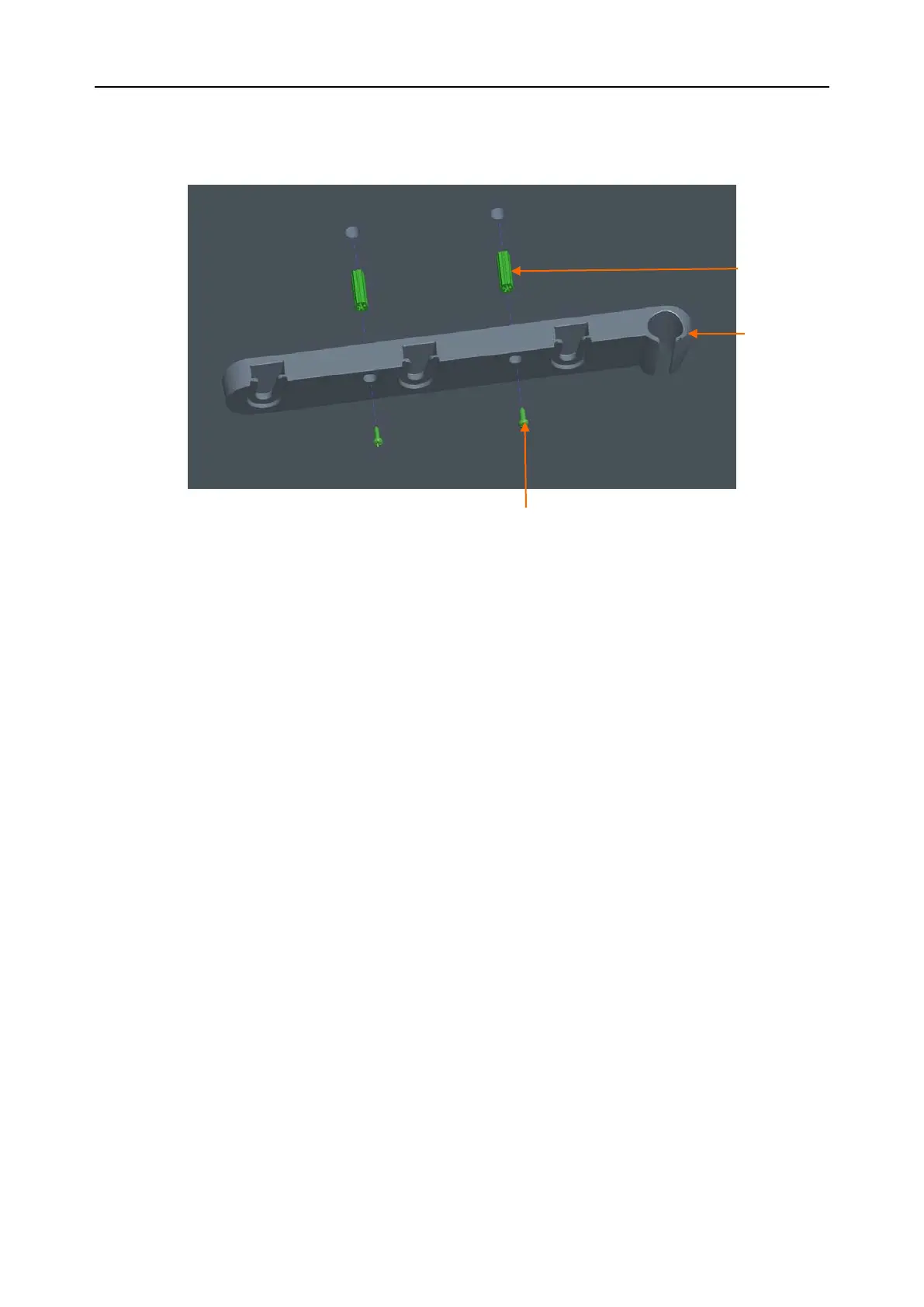

1. Mark the location of mounting holes of wireless transducer holder bracket on the wall and then

use a Ф8 drill to punch the wall.

2. Knock two 6mm plastic expand tubes into the punched holes.

3. Fix the wireless transducer holder bracket on the wall with three ST2.9*12 tapping screws.

6mm plastic

expand tube

Wired transducer

holder bracket

ST2.9*12 tapping screw

Traditional 510(k) of Fetal & Maternal Monitor

014_14.1_F15_Series_User_Manual

29／202
