F15 Series Fetal & Maternal Monitor User Manual Printing
- 71 -

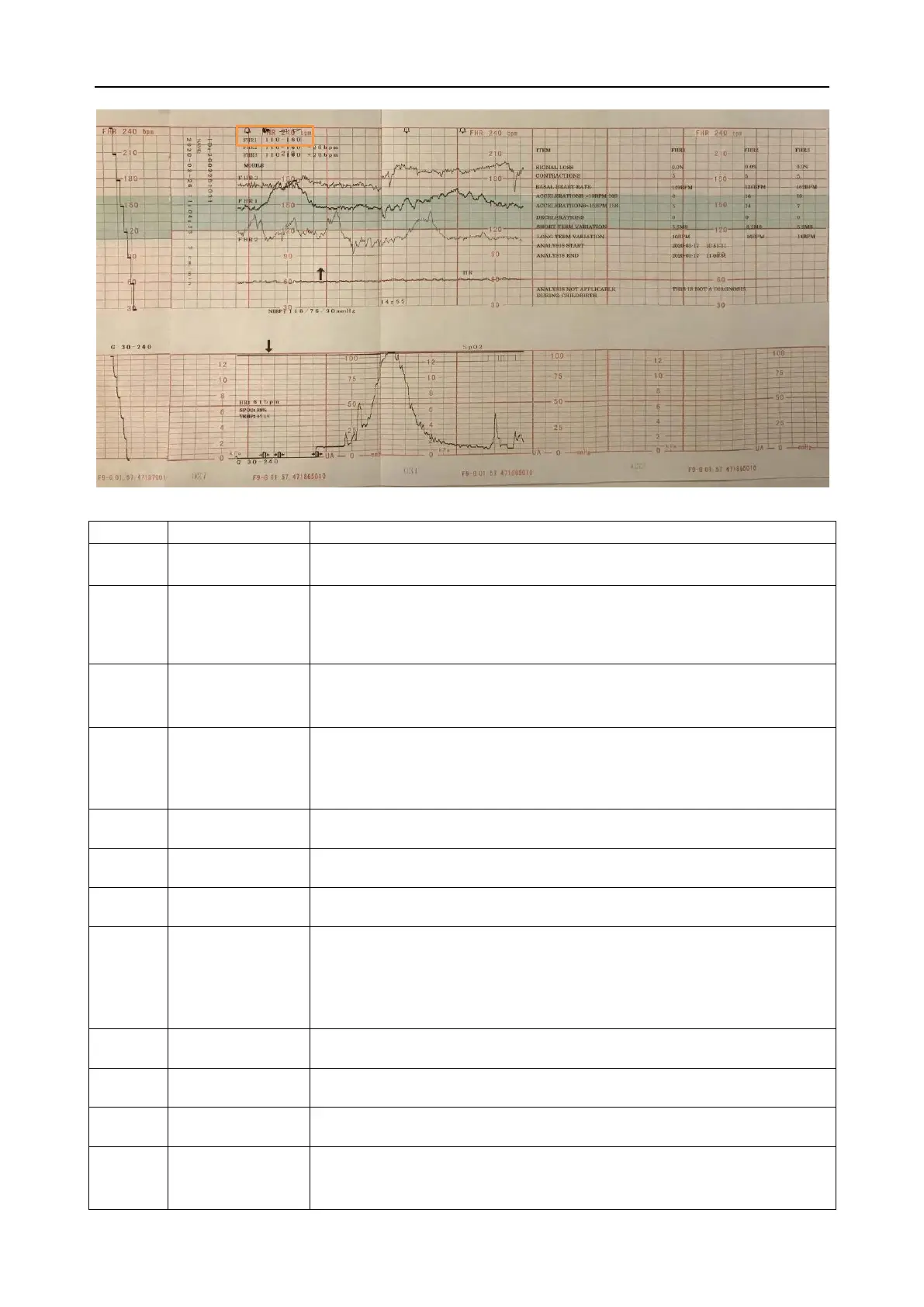

Figure 5-1 an example of recorder paper with traces
Item
Information
Description
1.
Self-Check Trace
The monitor prints a self-check trace after being switched on. It is used
to check if the recorder paper is properly loaded.
2.
Paper Settings
The paper settings of the monitor. It consists of the paper type and
paper style, e.g. “G 30-240”, indicating that the paper type is “F9-G”,
and the paper style is International. It is printed out to check if the
proper recorder paper is used.
3.
Paper Type
There are two types of paper: F9-G and F9-P.
4.
Paper Style
The FHR pane range indicates the paper style.
American style: 30 ~ 240
International style: 50 ~ 210
5.
FHR1 Mark
The trace marked with “FHR1” is the FHR1 trace.
6.
FHR2 Mark
The trace marked with “FHR2” is the FHR2 trace.
7.
FHR3 Mark
The trace marked with “FHR3” is the FHR2 trace.
8.
Trace
Information List
A list of current date, time, FHR2 offset, FHR3 offset, HR, SpO
2
and
TEMP is printed at the start of the monitoring and every 10 minutes/20
minutes/30 minutes/ 60 minutes (optional) afterwards.
9.
Smart Note
The annotation of the event mark below.
10.
HR Mark
The trace marked with “HR” is the maternal HR trace.
11.
SpO
2
Mark
The trace marked with “SpO
2
” is the maternal SpO
2
trace.
12.
NIBP
In the real-time printing mode, each NIBP measurement result is
printed on the paper in the order of SYS/DIA/MAP/PR.
(1)
(2)
(3)
(4)
(9)
(7)
(5)
(6)
(10)
(8)
(11)
(12)
(13)
(15)
(14)
Traditional 510(k) of Fetal & Maternal Monitor
014_14.1_F15_Series_User_Manual
87202
