8.12.2 Configuration example
Objective:

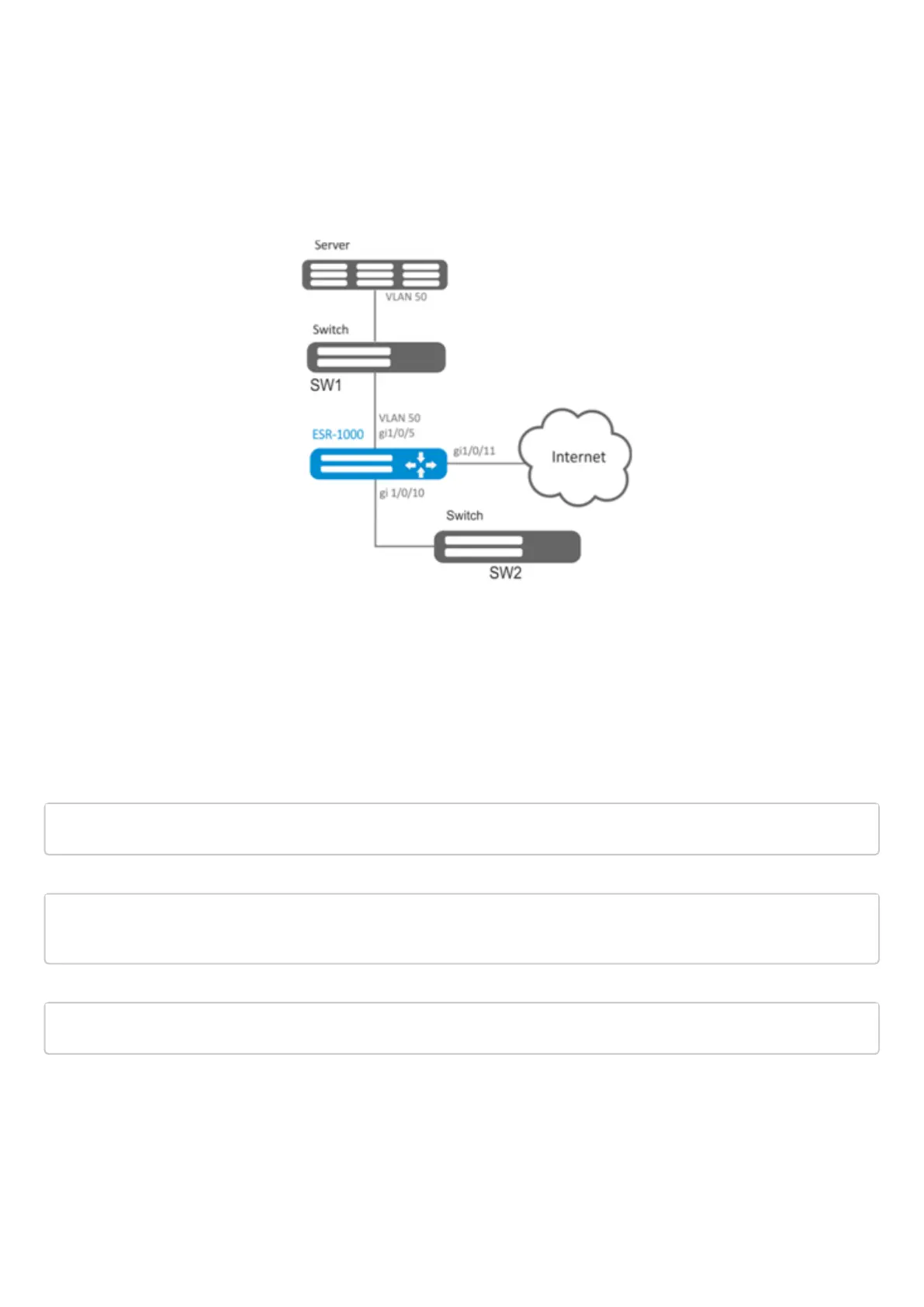

Establish remote mirroring of traffic through VLAN 50 from gi1/0/11 interface to be sent to server for
processing purposes.
Solution:
First, do the following:
Create VLAN 50:
On gi 1/0/5 interface, add VLAN 50 in 'general' mode.
Main configuration step:
Specify VLAN that will be used for transmission of mirrored traffic:
еsr1000(config)# port monitor remote vlan 50
For gi 1/0/5 interface, specify a port for mirroring:
еsr1000(config)# interface gigabitethernet 1/0/5
еsr1000(config-if-gi)# port monitor interface gigabitethernet 1/0/11
For gi 1/0/5 interface, specify the remote mirroring mode:
еsr1000(config-if-gi)# port monitor remote
