2.4.4 ESR-1511, ESR-1510 design
ESR-1511 front panel

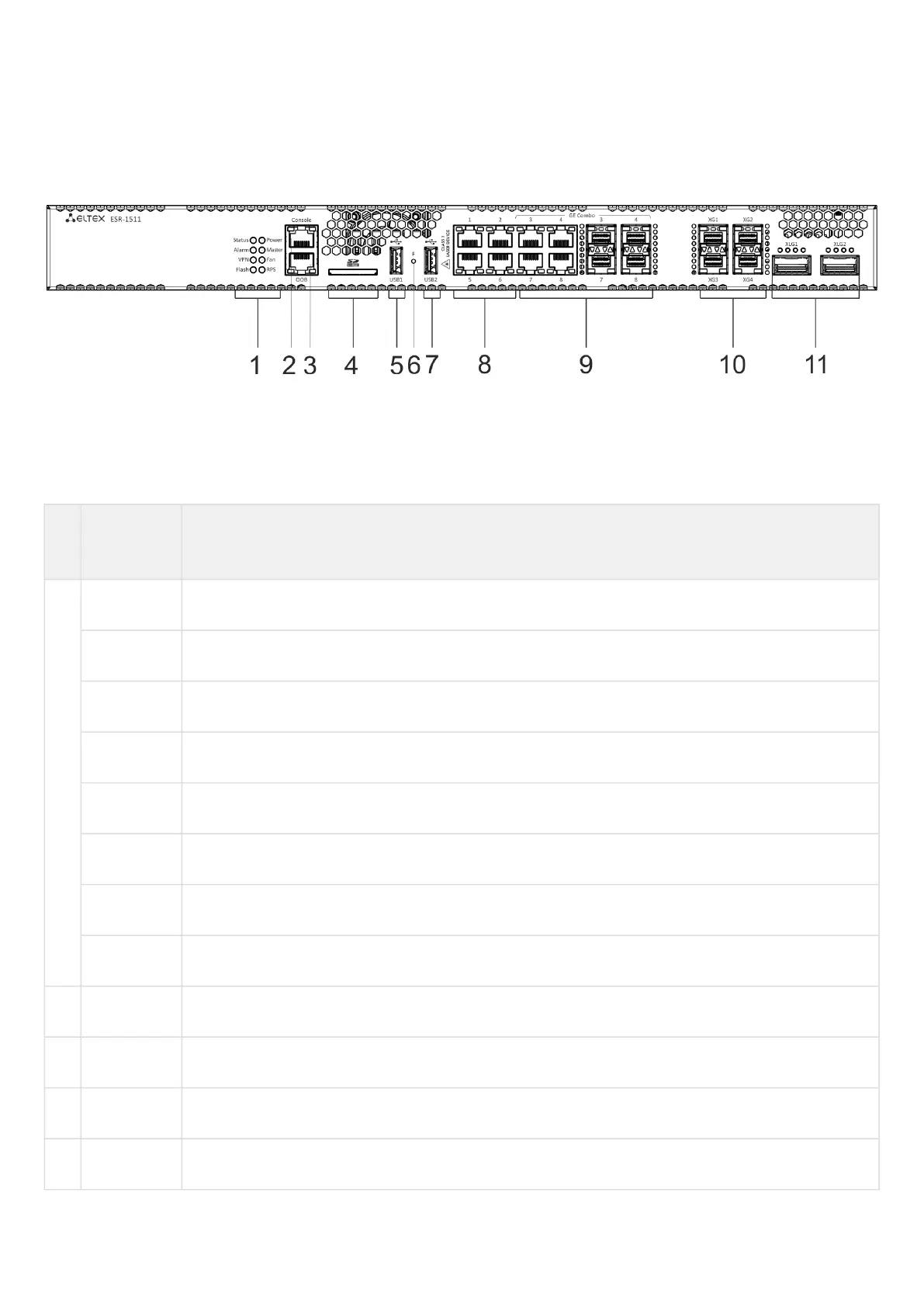

The front panel layout is depicted in figure 9.
Figure 13 – ESR-1511 front panel
Table 15 lists connectors, LEDs and controls located on the front panel of ESR-1511.
Table 15 – Description of connectors, LEDs and controls located on ESR-1511 front panel
Front panel
element
Description
1 Status Current device status LED.
Alarm Alarm LED.
VPN VPN gateway operation mode LED (is not supported in the current version).
Flash Activity of exchange with data storage SD card or USB Flash.
Power Device power LED.
Master Failover mode operation LED (is not supported in the current version).
Fan Fan operation LED.
RPS Redundant power supply LED.
2 Console Console port RS-232 for local management of the device.
3 OOB Ethernet port for router management.
4 SD SD-card connector.
5 USB1 Port for USB device connection.
