Step Description Command Keys
4 Configure registration server port. esr(config-pbx-reg-server)#
ip port <PORT>
<PORT> – number of registration server
UDP port, takes values of [1..65535]. If
standard 5060 port is used, you do not
need to specify it.
5 Specify the authentication name. esr(config-pbx-reg-server)#
username <user>
<user> – username for this trunk on the
upstream domain, set by the string of up
to 31 characters.
6 Specify the authentication
password.
esr(config-pbx-reg-server)#
authentication password
<password>
<user> – password for this trunk on the
upstream domain, set by the string of up
to 16 characters.
7 Use of SIP profile for the trunk. esr(config-pbx-reg-server)#
profile <PROFILE>
<PROFILE> – name of the SIP profile, that
used for this trunk, set by the string of 31
character.
8 Select the transport protocol
(optional).
esr(config-pbx-reg-server)#
protocol {tcp | udp }
The default is udp.
9 Enable trunk. esr(config-pbx-reg-server)#
enable

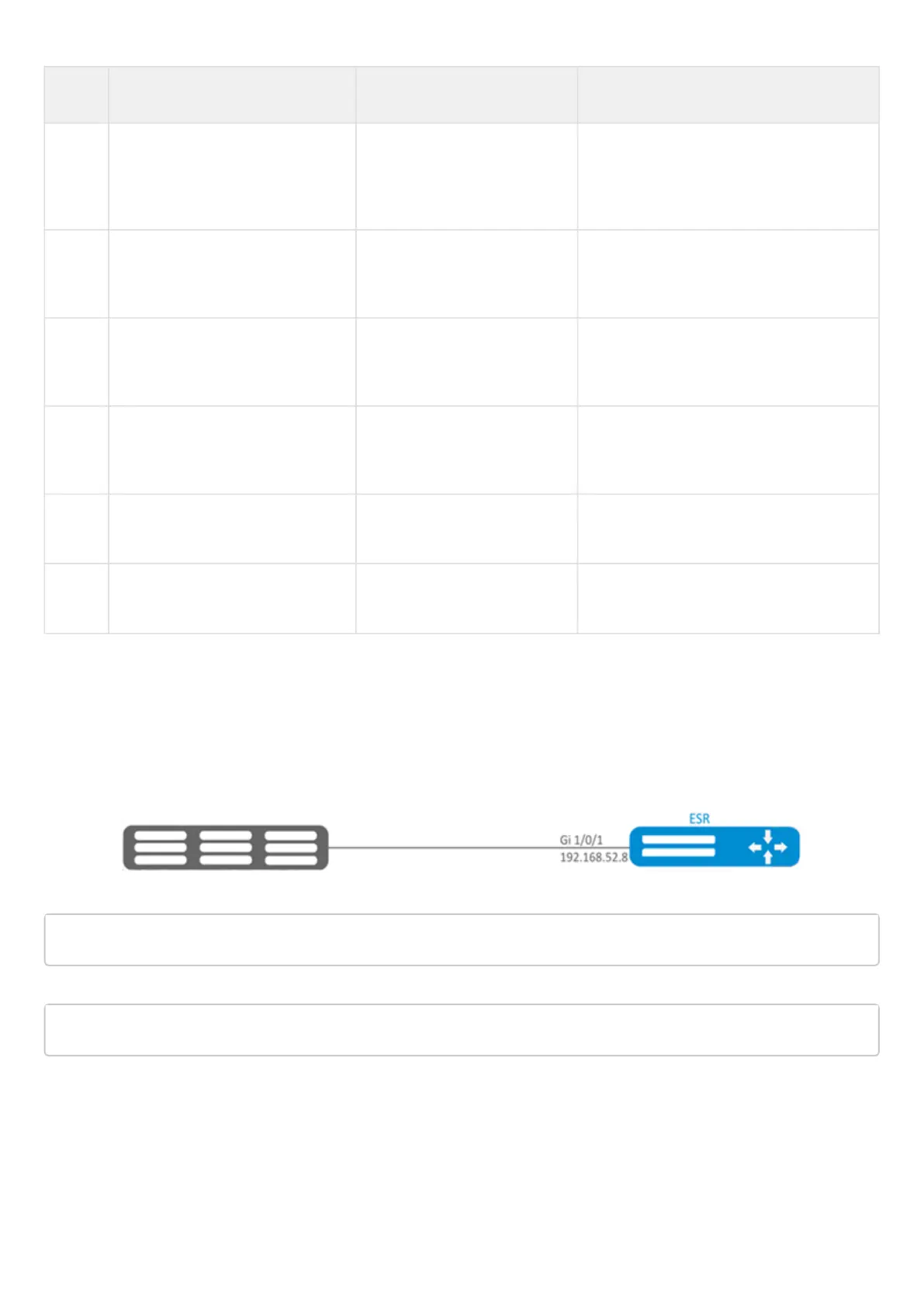

19.6 VoIP configuration example
Objective:
Connect analogue telephones and fax modems to the IP network via ESR router. SIP server, located on the
ESR, functions as proxy server and registration server.
Solution:
Configure a SIP profile:
esr(config)# sip profile 1
Configure a primary SIP proxy server and registration server:
esr(config-sip-profile)# proxy primary
