2.4.9 ESR-15 design
The device has a metal-enclosed design for 1U 19" racks.
ESR-15 front panel

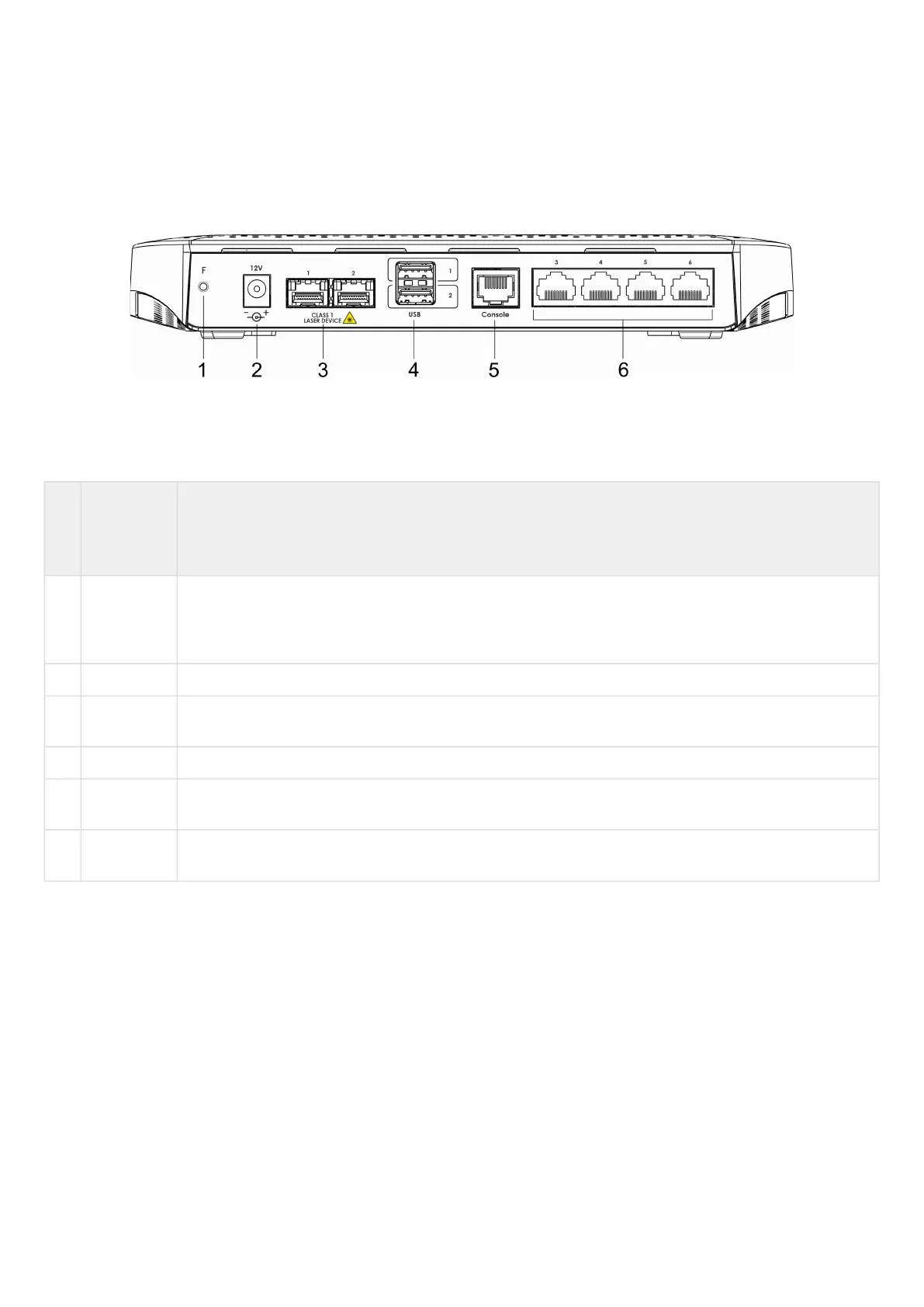

The front panel layout is depicted in figure 37.
Figure 37 – ESR-15 front panel
Table 28 lists connectors, LEDs and controls located on the front panel of ESR-15 router.
Table 28 – Description of connectors, LEDs and controls located on ESR-15 front panel
№ Front
panel
element
Description
1 F Functional key that reboots the device and resets it to factory default configuration:
pressing the key for less than 10 seconds reboots the device;
pressing the key for more than 10 seconds resets the device to factory default configuration.
2 12V DC Power supply.
3 Optical
ports
2 ports of Gigabit Ethernet – 1000BASE-X (SFP).
4 USB1, USB2 2 USB connectors for connecting external USB devices.
3 Console Console port RS-232 (RJ-45) for local management of the device.
9 [1 .. 4] 4 ports of Gigabit Ethernet 10/100/1000BASE-T (RJ-45).
