ESR series service routers.ESR-Series. User manual
1.
2.
3.
3.2 Device rack installation
To install the device to the rack:
Attach the device to the vertical guides of the rack.
Align mounting holes in the support bracket with the corresponding holes in the rack guides. Use the
holes of the same level on both sides of the guides to ensure the device horizontal installation.
Use a screwdriver to screw the router to the rack.

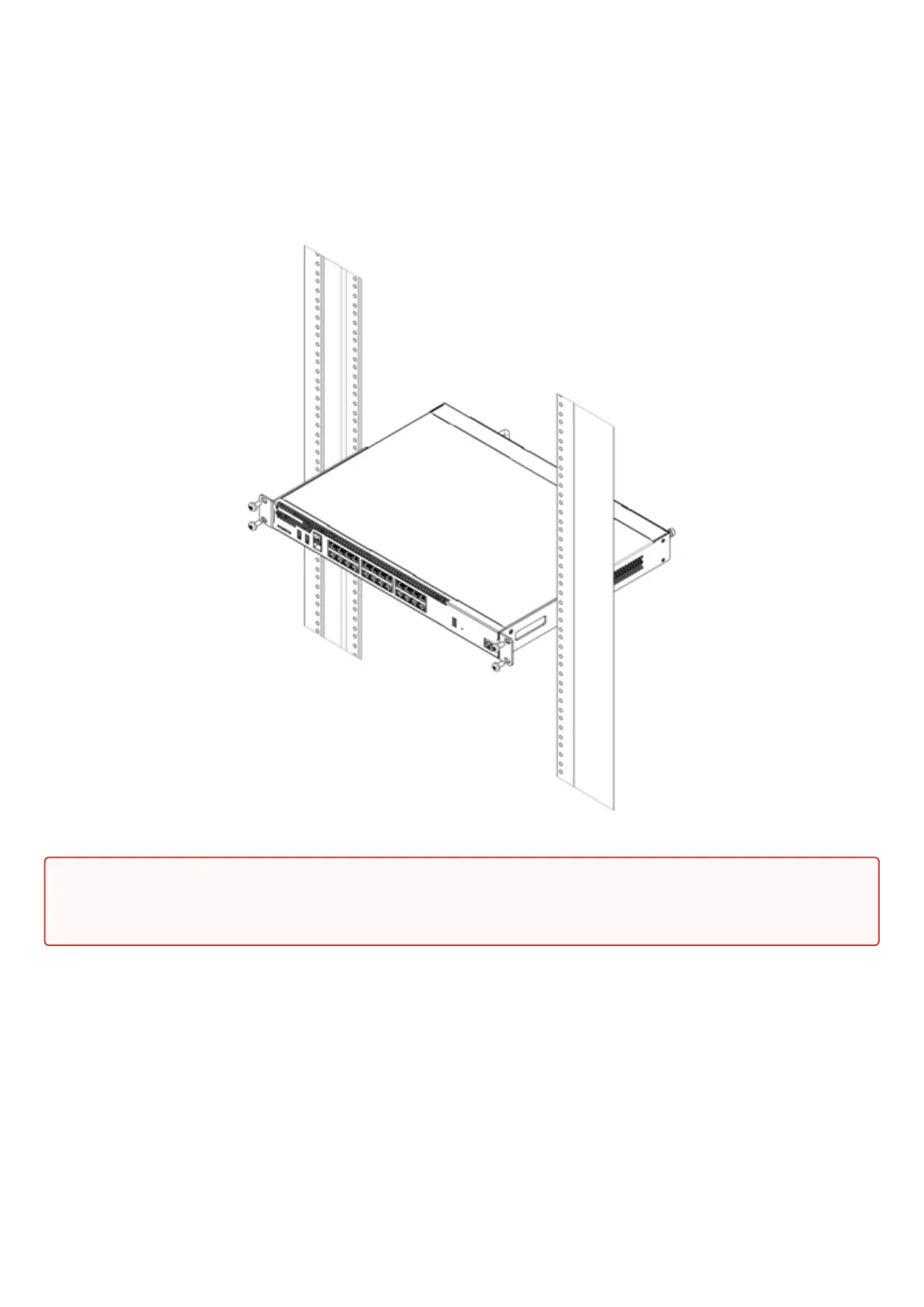

Figure 62 – Device rack installation
Device ventilation system is implemented using 'front-rear' layout. Vents are located on the front and
side panels of the device; ventilation modules are located at the rear. Do not block air inlet and outlet
vents to avoid components overheating and subsequent device malfunction.
