ESR series service routers.ESR-Series. User manual
ESR-15 top panel

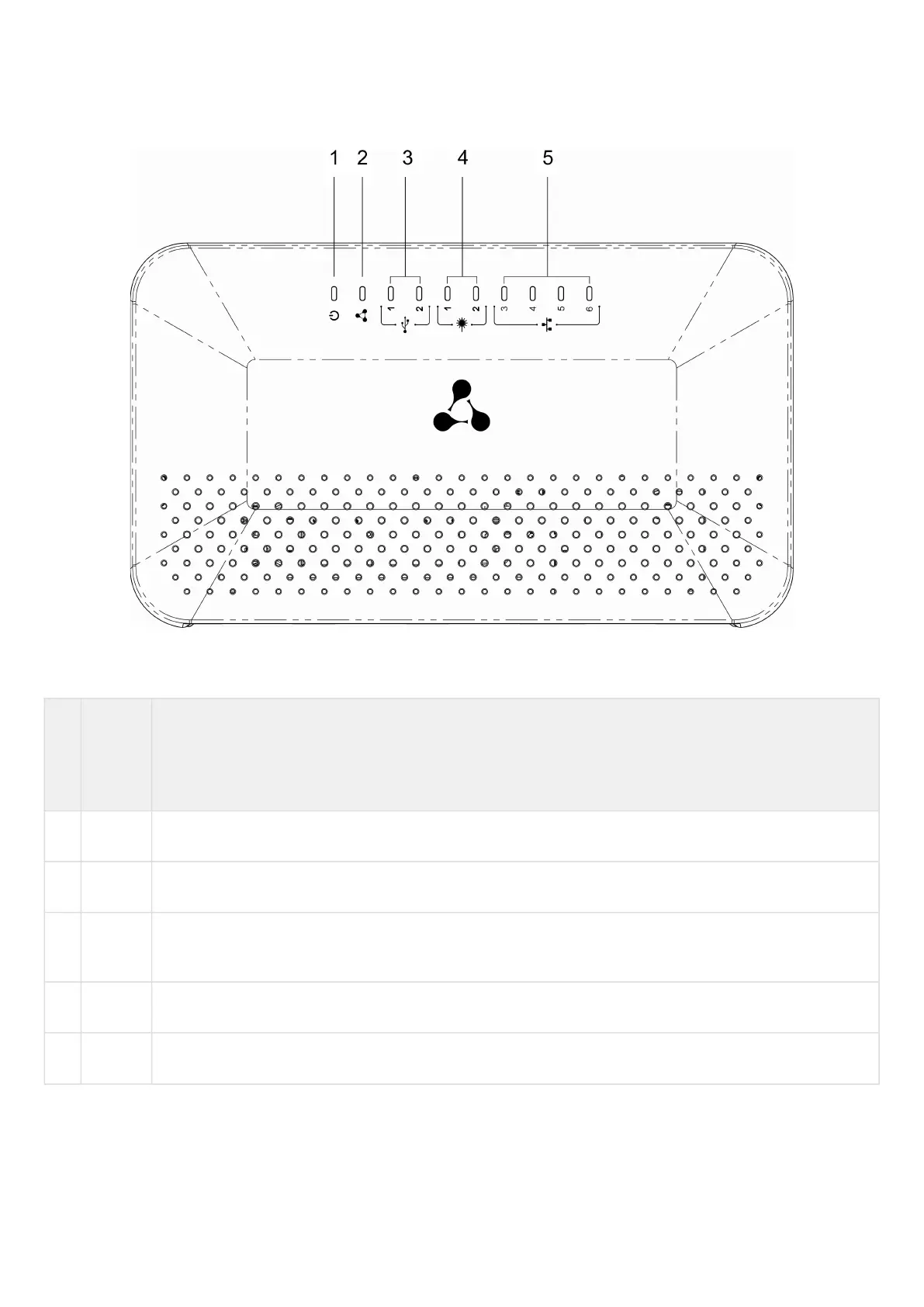

The top panel layout of ESR-10 is depicted in figure 38.
Table 29 lists LEDs located on ESR-15 top panel.
Table 29 – Description of front panel LEDs
№ Top
panel
elemen
t
Description
1 Power Device power and operation status LED
2 - The LED is not used
3 USB1,
USB2
External USB devices LED
4 [1 .. 2] Ethernet ports LED
5 [3 .. 6] Optical interfaces LED
