ELTEX ESR-3100 User Manual

ESR series service routers.ESR-Series. User manual
37
№ Front panel
element
Description
3 OOB Ethernet port for router management.
4 Console Console port RS-232 (RJ-45) for local management of the device.
5 microSD microSD-card port.
6 USB1 USB 2.0 port for USB devices connection.
7 [1 .. 12] Slots for installing 25G SFP28/10G SFP+/1G SFP transceivers.
ESR-3200 rear panel

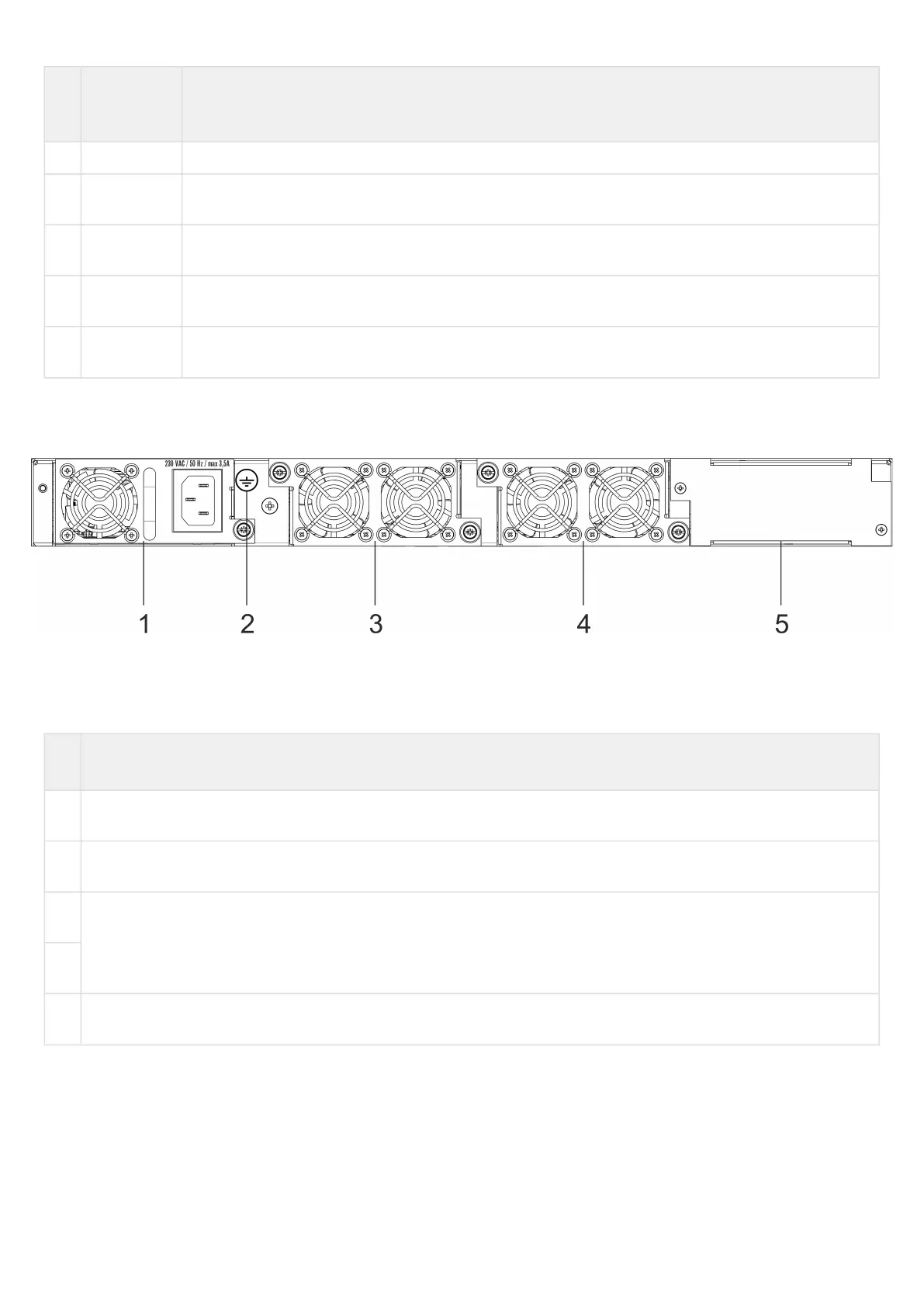

The rear panel of ESR-3200 is depicted in Figure 2.
Figure 2 – ESR-3200 rear panel
Table 10 lists rear panel connectors of the router.
Table 10 – Rear panel connectors description
№ Description
1 Main power supply.
2 Earth bonding point of the device.
3 Hot-swappable removable ventilation modules.
4
5 Place for installation of a redundant power supply.
