ESR series service routers.ESR-Series. User manual
ESR-1511, ESR-1500 rear panel

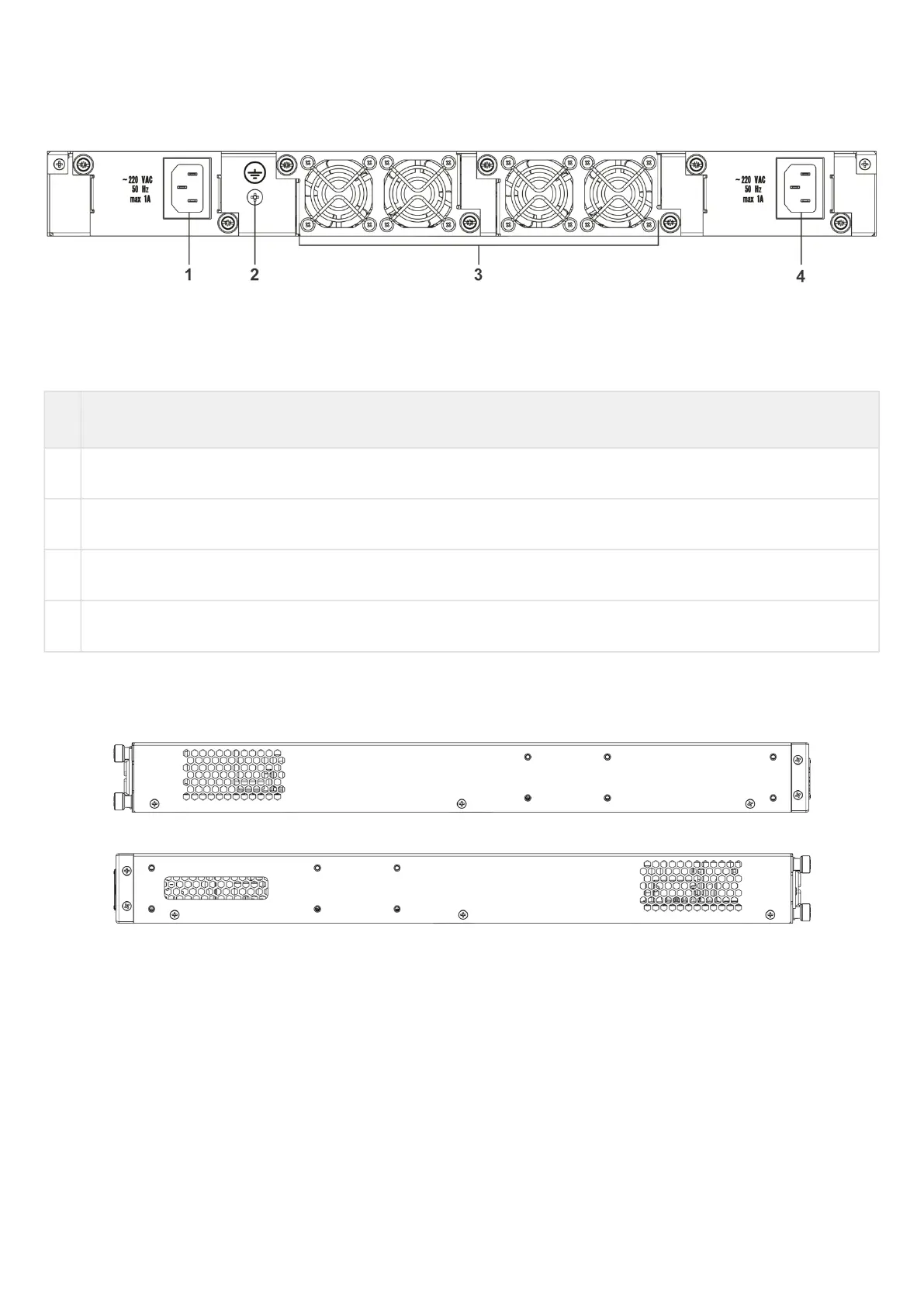

The rear panel layout of ESR-1511 and ESR-1500 routers is depicted in figure 15.
Figure 15 – ESR-1511, ESR-1500 rear panel
Table 17 lists rear panel connectors of the router.
Table 17 – Rear panel connectors description
№ Description
1 Main power supply.
2 Earth bonding point of the device.
3 Hot-swappable removable ventilation modules.
4 Place for installation of a redundant power supply.
ESR-1511, ESR-1500 side panels
The side panel layout of ESR-1511, ESR-1500 is depicted in Figures 16 and 17.
Figure 16 – ESR-1511, ESR-1500 right side panel
Figure 17 – ESR-1511, ESR-1500 left side panel
Side panels of the device have air vents for heat removal. Do not block air vents. This may cause the
components to overheat, which may result in device malfunction. For recommendations on device installation,
see section Installation and connection.
